10 - INSTALLING GLASS PORTION OF ROOF AND RIGHT FRONT WALL

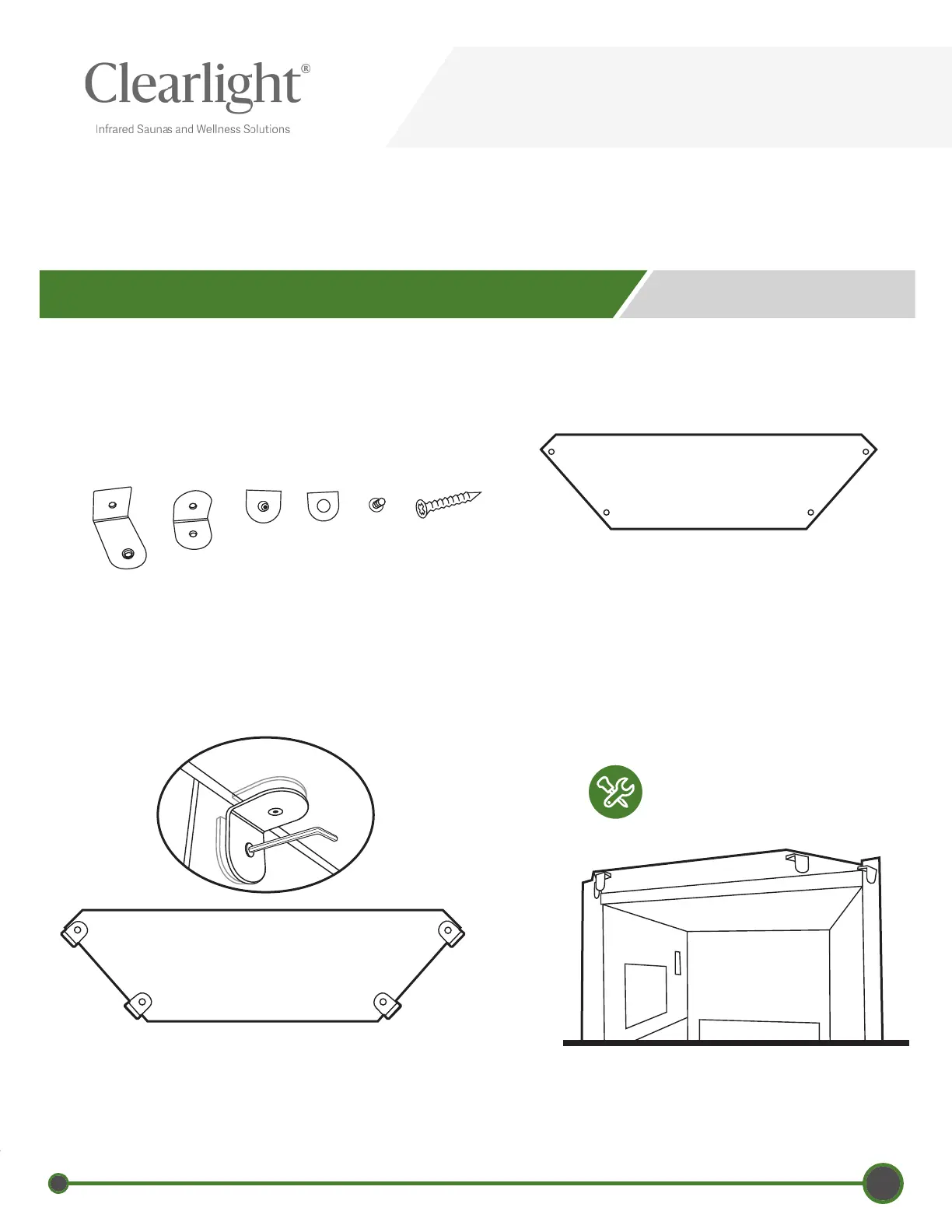

1. Locate the glass roof piece as in the photo below.
2. Locate the roof locking brackets, protective
washers and screws.
3. Attach the brackets to the roof piece as shown
below using the enclosed Allen Wrench.
4. Place the long edge of the glass roof
piece into the groove in the wood roof
piece. Center this piece in the wood
roof piece.
HOLD THIS PIECE IN PLACE UNTIL
THE RIGHT SIDE FRONT WALL AND
DOOR ARE INSTALLED
x2 x2x4 x6 x6 x2
