Cleverio CC-300 - Product Overview and Specifications; Product Specifications; Getting Started and Usage; Initial Setup and Charging

3
2
ENGLISH

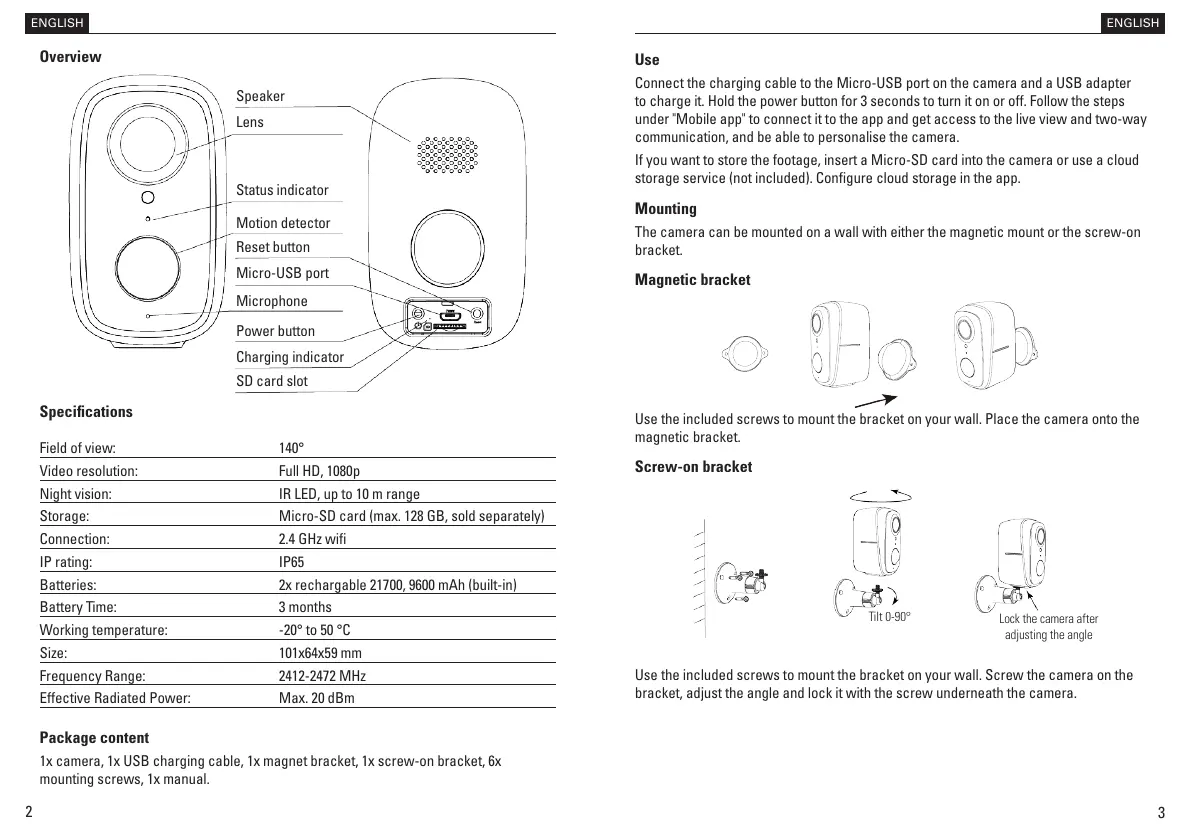

Overview
Specications
Field of view: 140°
Video resolution: Full HD, 1080p
Night vision: IR LED, up to 10 m range
Storage: Micro-SD card (max. 128 GB, sold separately)
Connection: 2.4 GHz wi
IP rating: IP65
Batteries: 2x rechargable 21700, 9600 mAh (built-in)
Battery Time: 3 months
Working temperature: -20° to 50 °C
Size: 101x64x59 mm
Frequency Range: 2412-2472 MHz
Effective Radiated Power: Max. 20 dBm
Package content
1x camera, 1x USB charging cable, 1x magnet bracket, 1x screw-on bracket, 6x
mounting screws, 1x manual.
ENGLISH
Use
Connect the charging cable to the Micro-USB port on the camera and a USB adapter
to charge it. Hold the power button for 3 seconds to turn it on or off. Follow the steps
under "Mobile app" to connect it to the app and get access to the live view and two-way
communication, and be able to personalise the camera.
If you want to store the footage, insert a Micro-SD card into the camera or use a cloud
storage service (not included). Congure cloud storage in the app.
Mounting
The camera can be mounted on a wall with either the magnetic mount or the screw-on
bracket.
Magnetic bracket
Use the included screws to mount the bracket on your wall. Place the camera onto the
magnetic bracket.
Screw-on bracket
Use the included screws to mount the bracket on your wall. Screw the camera on the
bracket, adjust the angle and lock it with the screw underneath the camera.
Speaker
Lens
Status indicator
Motion detector
Reset button
Micro-USB port
Microphone
Power button
Charging indicator
SD card slot
Tilt 0-90°
Lock the camera after
adjusting the angle
