Mainboard Overview - Bottom (Connectors) 1 - 11
1.Introduction

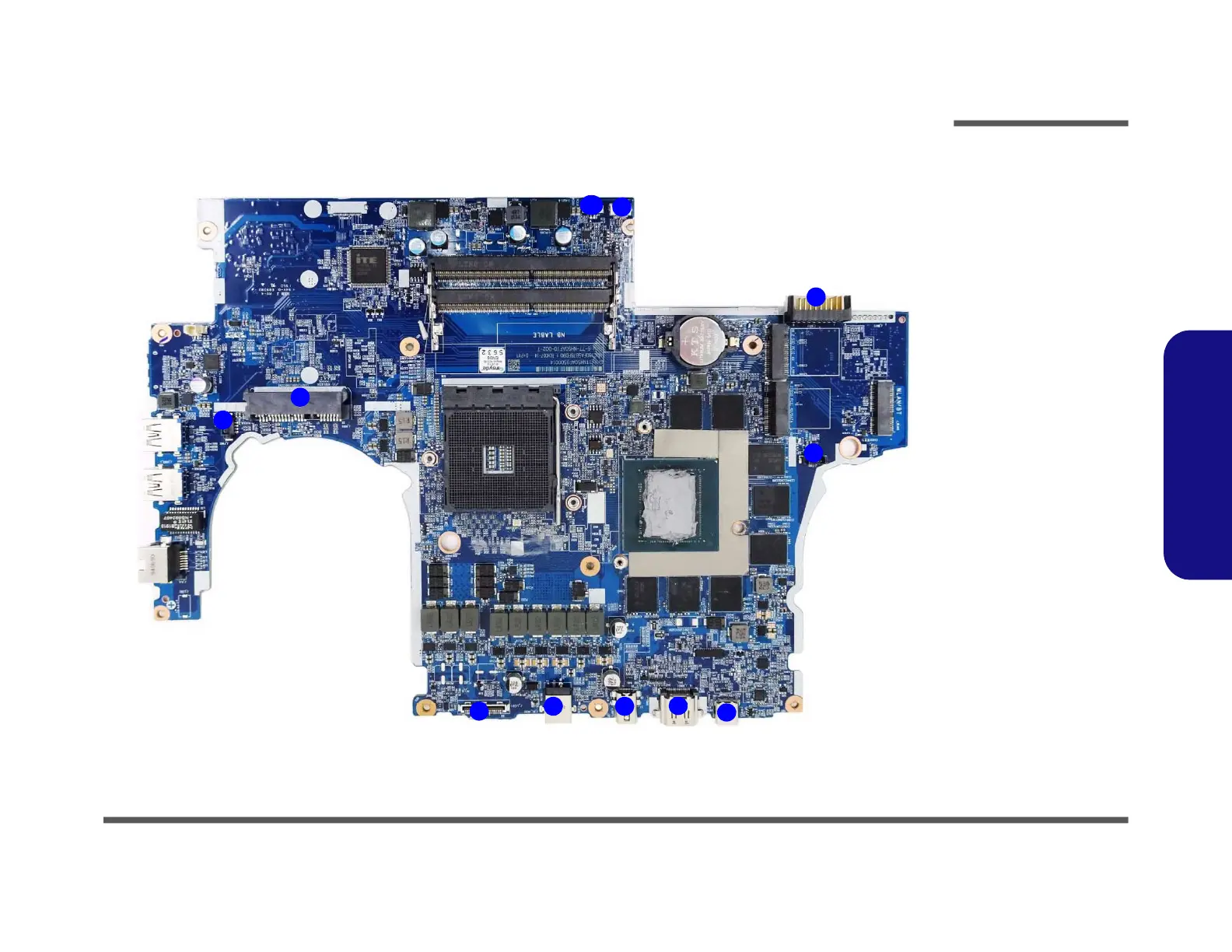

Mainboard Overview - Bottom (Connectors)
Figure 10
Mainboar Bottom
Connectors
1. Fan Connector
2. HDD Connector
3. LCD Connector
4. DC-In Jack
5. Mini Display Port
1.4
6. HDMI-Out Port
7. DisplayPort 1.4
over USB 3.1 Gen
2 Type-C Port
8. Battery Connector
9. Touchpad
Connector
10. Speaker Connector
9
10
11
1
2
5
3
4
1
6
7
8
10
9
