Disassembly
Removing the Hard Disk Drive 2 - 7
2.Disassembly

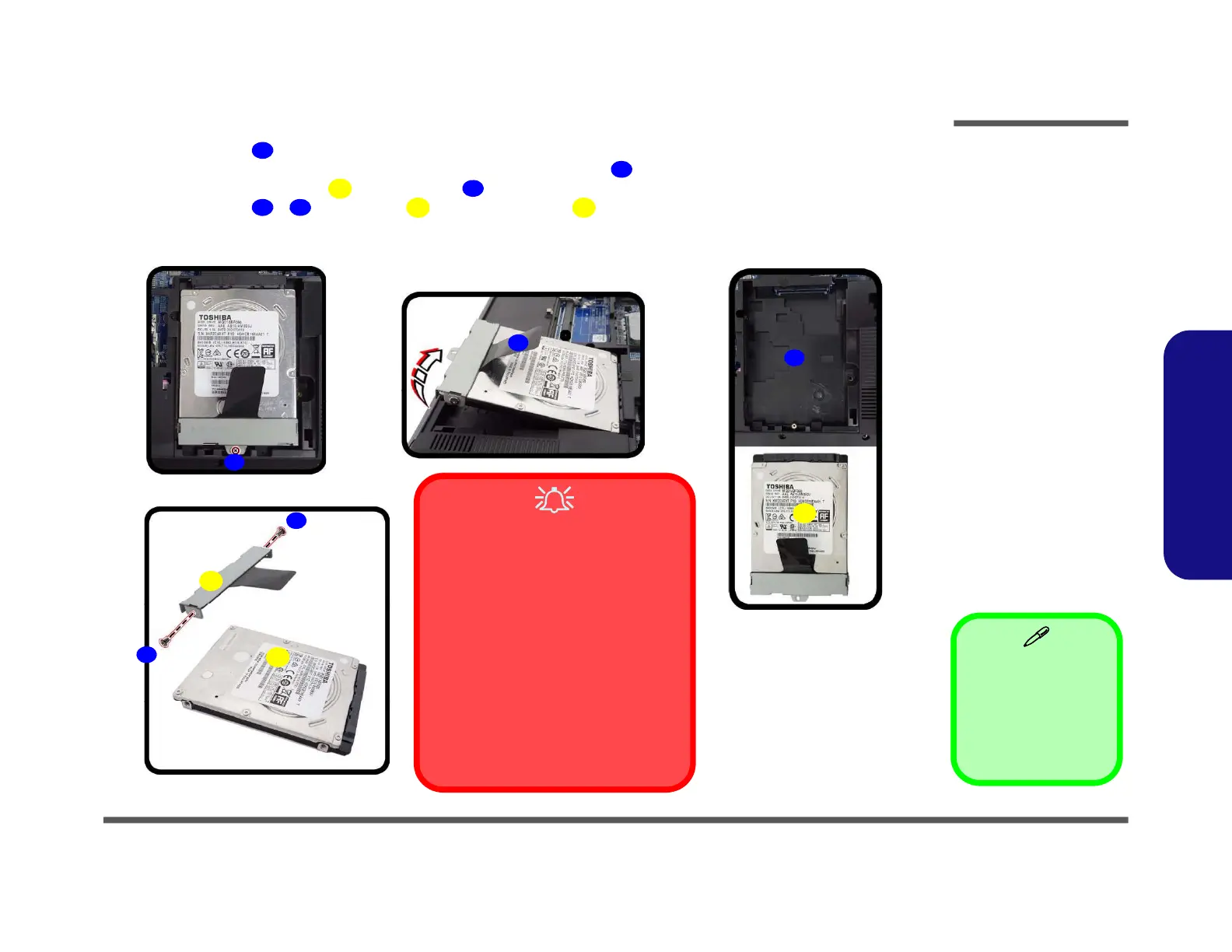

5. Remove screws from the HDD assembly (Figure 3b).
6. Slightly lift and pull the hard disk assembly in the direction of arrow (Figure 3c
).
7. Lift the hard disk assembly out of the bay (Figure 3d
).
8. Remove screws
-
and bracket from the hard disk (Figure 3e
)
.
9. Reverse the process to install a new hard disk (do not forget to replace the screws).
9
10
11
12
13 14 15 16
d. e.
15
11
HDD System Warning
New HDD’s are blank. Before you begin
make sure:
You have backed up any data you want to
keep from your old HDD.
You have all the CD-ROMs and FDDs re-
quired to install your operating system and
programs.
If you have access to the internet, down-
load the latest application and hardware
driver updates for the operating system you
plan to install. Copy these to a removable
medium.
g.
9
10
13
14
16
12
f.
11. HDD Assembly
15. Bracket
16. HDD
• 3 Screws
Figure 3
HDD Assembly
Removal (cont’d.)
d. Remove the screws.
e. Slightly lift and pull the
the arrow.
out of the bay.
bracket from the HDD.
