Removing the M.2 SSD Module 2 - 13
2.Disassembly
Removing the M.2 SSD Module
M.2 SSD-1 Module Removal Procedure
1. Turn off the computer, turn it over, remove the battery (page 2 - 5) and bottom cover (page 2 - 6).
2. The M.2 SSD module will be visible at point on the mainboard (Figure 9a).
3. Remove the screw (Figure 9b)
4. The M.2 SSD module (Figure 9c) will pop-up, and you can remove it from the computer.
1
2
3
b.
c.
a.
3
1
2
3
3.M2 SSD PCIE Module
• 1 Screw
Figure 9
M.2 SSD-1 Module
Removal

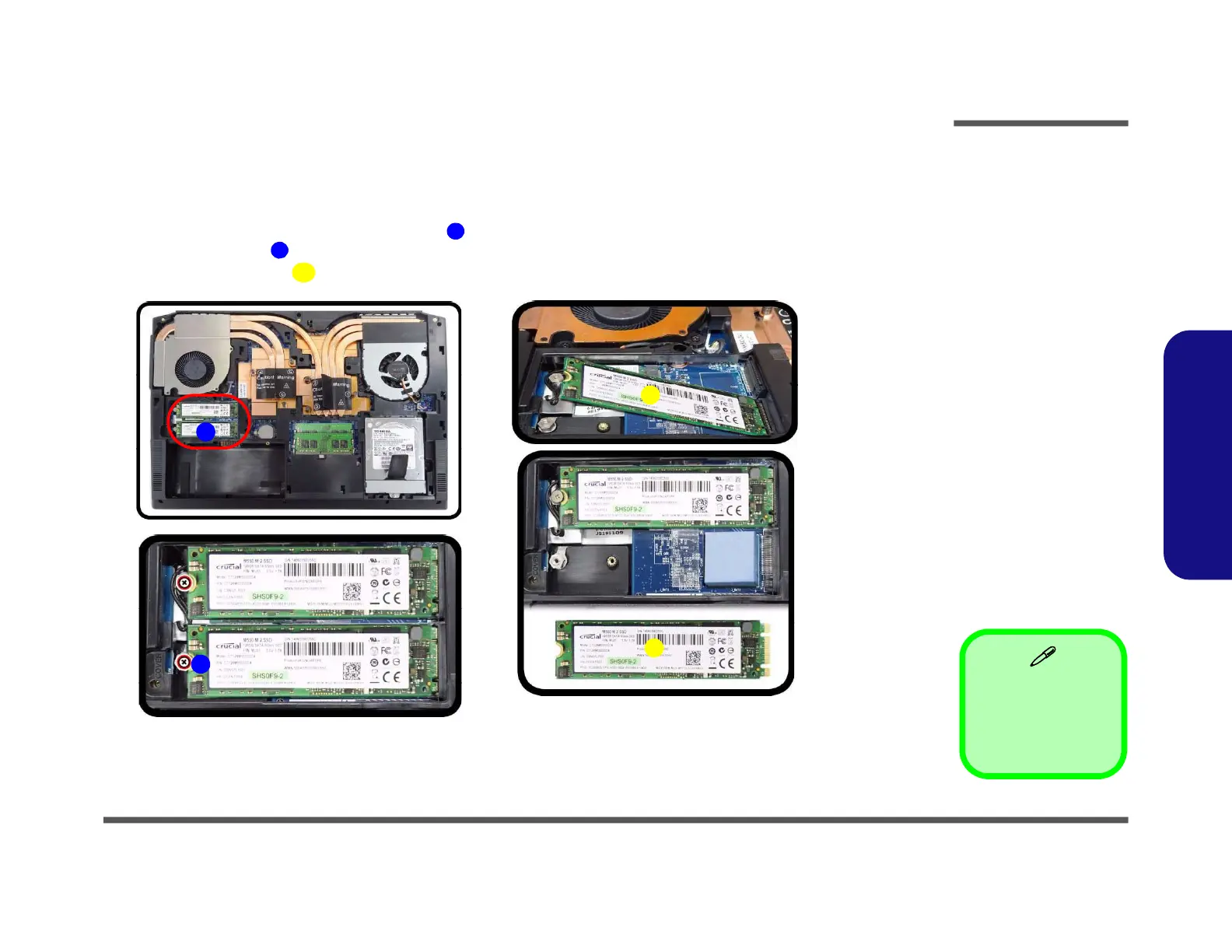

a. Locate the M.2 SSD.
b. Remove the screw.
c. The M.2 SSD module
will pop up.
