PCLP160 / PCLP205 / PCLP250

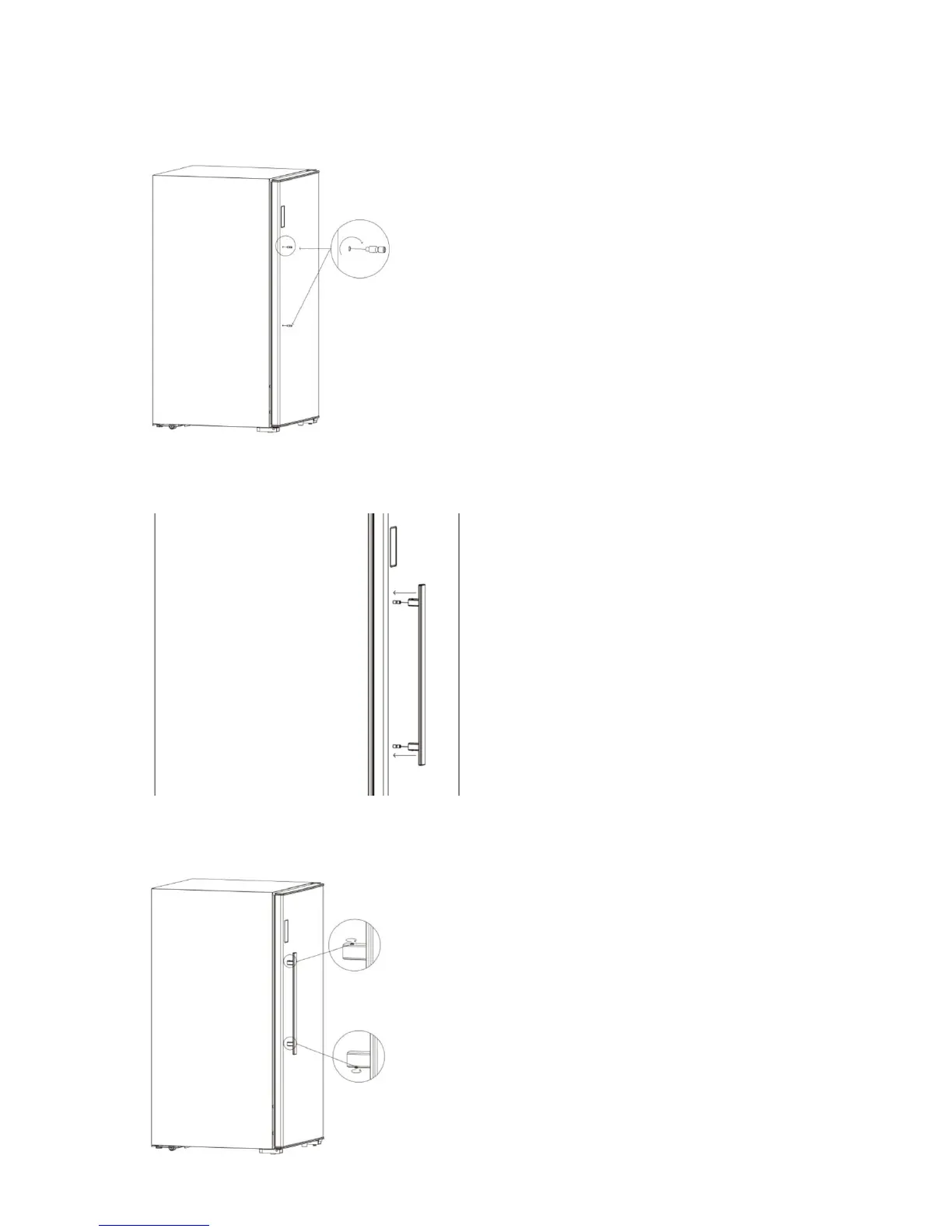

Step 1: there are two handle screws holes on the door, install handle screws into the hole as below
photo:
Step 2: there are two holes on the handle base, fix the handle screw into the handle hole at the bottom
of the handle base as explained on the drawing here below:
Step 3: after handle is fixed onto the handle screw, there are two hexagon screws popping out, use a
hexagon screw driver to fix the screws as below photo:
PCLV160 / PCLV205 / PCLV250
