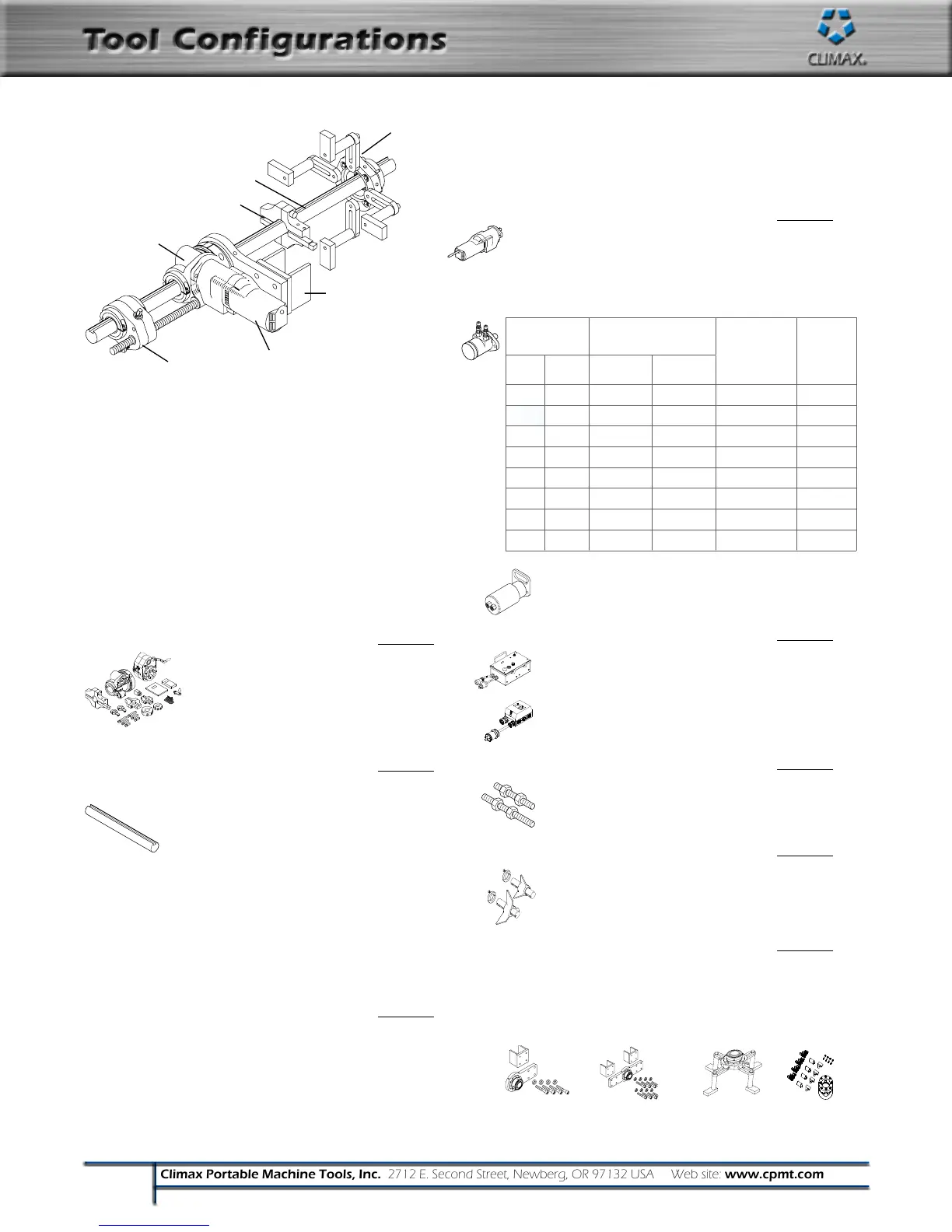

Configure your BB5000 in 8 easy steps:
1 Select a Base Unit
2 Select a Boring Bar
3 Select a Drive Motor Option
4 Select a Speed Control
5 Select a Leadscrew
6 Select Setup Cones
7 Select a Mounting Option
8 Select Optional Small Bore Kit
To generate the correct part number for the boring machine
you require, simply select the part number needed in each
step, and contact your Climax representative.
1 Base Unit
(Includes RDU, AFU, Tool Heads, Tool Kit, Operator’s
Manual and Compartmentalized Metal Container)
Inch Base Unit, 4:1 RDU 
Metric Base Unit, 4:1 RDU 
Inch Base Unit, 12:1 RDU for Servo 54499
Metric Base Unit, 12:1 RDU for Servo 
2 Boring Bar (Inch)
Bars are 2-¼ inch diameter, chrome-plated steel with full length keyway.
48 inch bar, ½ inch tooling holes 
every 6 inches
72 inch bar, ½ inch tooling holes 
every 6 inches
96 inch bar, ½ inch tooling holes 
every 6 inches
120 inch bar, ½ inch tooling holes every 6 inches 
144 inch bar, ½ inch tooling holes every 6 inches 
48 inch bar, ½ inch tooling holes every 10 inches 
72 inch bar, ½ inch tooling holes every 10 inches 
96 inch bar, ½ inch tooling holes every 10 inches 
120 inch bar, ½ inch tooling holes every 10 inches 
144 inch bar, ½ inch tooling holes every 10 inches 
*Multiple units may be ordered.
Boring Bar (Metric)
Bars are 2-¼ inch diameter, chrome-plated steel with full length keyway.
1219.2 mm bar, 12 mm tooling holes every 152.4 mm 
1828.8 mm bar, 12 mm tooling holes every 152.4 mm 
2438.4 mm bar, 12 mm tooling holes every 152.4 mm 
3048.0 mm bar, 12 mm tooling holes every 152.4 mm 
3657.6 mm bar, 12 mm tooling holes every 152.4 mm 
1219.2 mm bar, 12 mm tooling holes every 254.0 mm 
Boring Bar (Metric), continued
1828.8 mm bar, 12 mm tooling holes every 254.0 mm 34636
2438.4 mm bar, 12 mm tooling holes every 254.0 mm 
3048.0 mm bar, 12 mm tooling holes every 254.0 mm 
3657.6 mm bar, 12 mm tooling holes every 254.0 mm 
*Multiple units may be ordered.
3 Drive Motor

120 VAC 50/60 Hz single phase 168/82 bar rpm 
120 VAC 50/60 Hz single phase 112/55 bar rpm 
230 VAC 50/60 Hz single phase 168/82 bar rpm 
230 VAC 50/60 Hz single phase 112/55 bar rpm 

Motor
Capacity
Max Bar RPM at
Torque at Bar,
- Calculated -
ft-lbs,(N•m)
Part No.
In
3
cm
3
6 gpm
(22.7 L/min)
10 gpm
(37.9 L/min)
2.2 36 148 246 92 (124.7) 
3.6 60 90 150 159 (215.6) 
5.9 96.7 55 92 270 (367) 
7.3 119.6 44 73 342 (463.7) 
8.9 145.8 36 60 417 (565.4) 
11.3 185.2 28 49 478 (648.1) 
14.1 231.1 23 38 652 (884.0) 
17.9 293.3 17 30 764 (1035.8) 
(3 Hp (2.2 kW) includes pneumatic conditioning unit):
57rpm234ft-lbs(317.3N•m)non-CE 
120rpm115ft-lbs(155.9N•m)non-CE 
* Multiple units may be ordered.
4 Speed Control
120V Speed control, Non-CE compliant 
(use with 120V motors)
120V Inline manual motor starter, Non-CE compliant 
230V Speed control, CE compliant 
(use with 230V motors)
230V Inline manual motor starter, CE compliant 
(use without speed control)
5 Leadscrew
12 inch (304.8 mm) leadscrew 
24 inch (609.6 mm) leadscrew 
36 inch (914.4 mm) leadscrew 
* Multiple units may be ordered.
6 Setup Cones (cast iron, for 2-¼ inch dia. bars)
Small setup cones (2.75 - 8.37 inches) 
Large setup cones (8.37 - 12 inches) 
Full set of setup cones (2.75 - 12 inches) 
7 Mounting Option
Single arm mount (1) (for 2-¼ inch dia. bars) 
Double arm mount (1) (for 2-¼ inch dia. bars) 
Universal mount (1) (for 2-¼ inch dia. bars) 
ID mount (1) (for 2-¼ inch dia. bars) 
* Multiple units may be ordered.
 Portable Machine Tools, Inc. ©
Newberg, OR USA 97132
WWW.CPMT.COM inside U.S. 1-800-333-8311
37538
Single arm
mount
Double arm
mount
Universal mount
ID mount
 Portable Machine Tools, Inc. ©
Newberg, OR USA 97132
WWW.CPMT.COM inside U.S. 1-800-333-8311
46293 BB5000 ID STEADY REST PARTS VIEW


