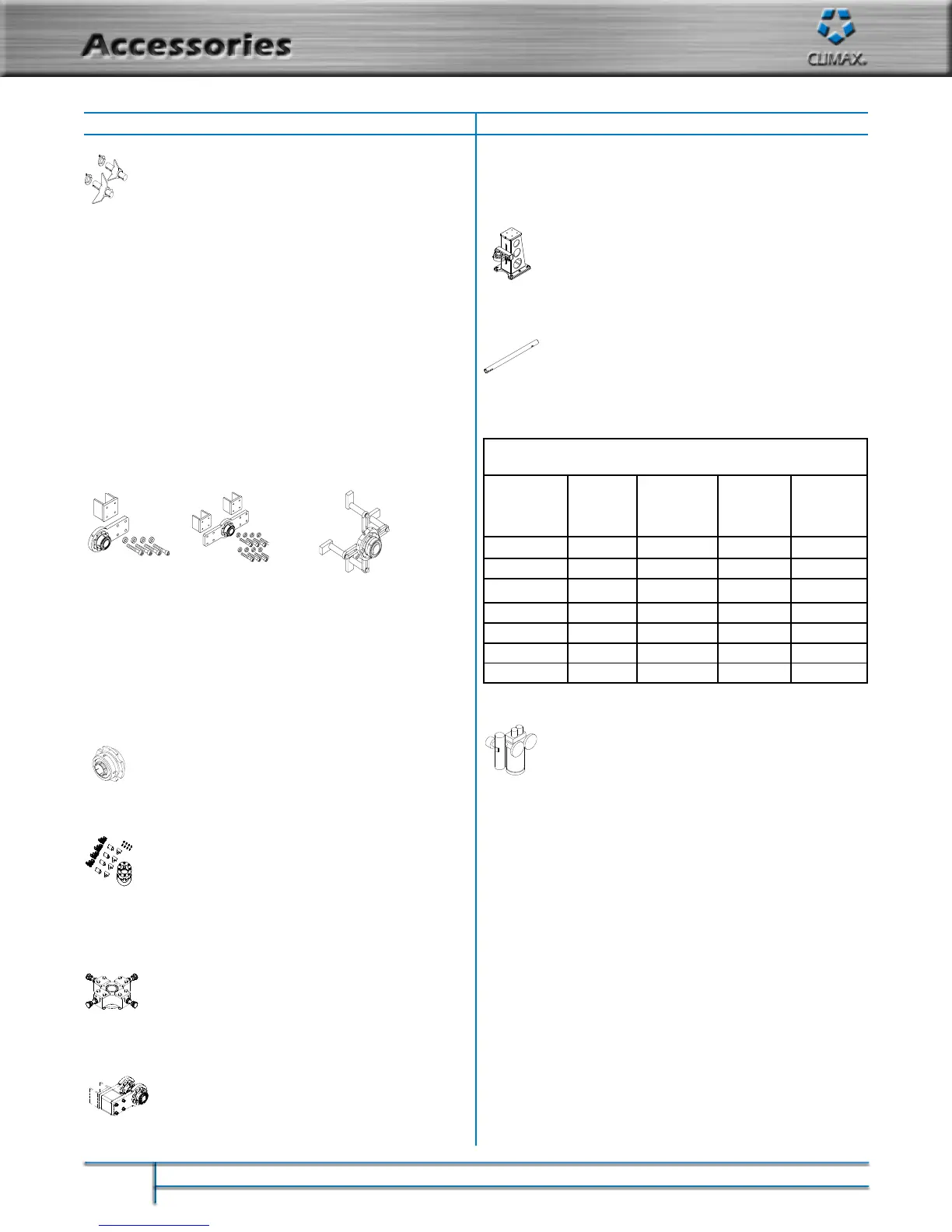

page 9
Cones slide onto the bar and into fairly round, in-line holes for
fast set-up. Set screws and back-up clamp collars hold the
cones in place while the components are being attached.
Set of 2 aluminum set-up cones, 1.5 - 3.25 inch (38.1 - 82.6
mm) bore ID. .
Set of 2 cast iron set-up cones for 2.75 - 8.37 inch (69.9 -
212.6 mm) bore ID. .
Set of 2 cast iron set-up cones for 8.37 - 12 inch (212.6 -
304.8 mm) bore ID. .
Full set of cast iron set-up cones for 2.75 - 12 inch (69.9 -
304.8 mm) bore ID. .
Set of 2 cast iron set-up cones for 2.75 - 8.37 inch (69.9 -
212.6 mm) bore ID.
Set of 2 cast iron set-up cones for 8.37 - 12 inch (212.6 -
304.8 mm) bore ID. .
Available in single arm, double arm, and universal mount styles, our
spherical bearing mounts attach directly to the work piece, and accept
both the model BB5000 rotational drive, and the mounting bracket for
the Climax AutoBoreWelders.
Includes bracket, bearing, and hardware.
Turn your BB5000 into a powerful drilling system with the following
accessories. A wide array of options available, please talk to us about
your needs - we can customize a package to fit your specific need.
Includes drill stand with grip tight bearing, tack weld spacers
and all hardware.
Customer will need to order #4 or #5 Morse Taper or straight
shank bar (1), single arm bearing mount and drill tooling as
well as BB5000 drive and feed to make a complete drill package
Climax sells special bars for drilling and blind hole boring.
Options include #4 and #5 Morse Taper and bars with
Morse Taper on one end and 1.25” straight shank on the
opposite end. For most applications we recommend the #4 Morse
Taper Thee majority of our drilling and blind hole boring tooling is sup-
plied with #4 Morse Taper.
Supplies Cooling Mist Directly to the Cutting Edge through
the Super Drill or Allied Machine & Tool RCA (Rotary Coolant
Adapter)
59804 New-Lube Coolant, 1 gallon
Kit A1 1.968 - 2.165 inches (50 - 55 mm) #4 Morse taper
Kit A2 2.165 - 2.559 inches (55 - 65 mm) #4 Morse taper
Kit B 2.559 - 3.149 inches (65 - 80 mm) #4 Morse taper
Kit C 3.149 - 3.937 inches (80 - 100 mm) #4 Morse taper
Kit D 3.937 - 4.724 inches (100 - 120 mm) #4 Morse taper
SBG Sharpening Fixture
See the Climax Drilling & Blind Hole Boring supplement for a complete listing
of insert, drill components and accessories.
CB-203D 3 inch (76.2 mm) diameter boring head kit
CB-204D 4 inch (101.6 mm) diameter boring head kit
CLIMAX
Portable Machine Tools, Inc. ©
Newberg, OR USA 97132
WWW.CPMT.COM inside U.S. 1-800-333-8311
57140RIGHT ANGLE BASE ASSEMBLY
Single arm
mount
Double arm
mount
Universal
mount
for 2-¼ inch (57.2 mm) bars
for 2 inch (50.8 mm) bars
for 2-¼ inch (57.2 mm) bars
for 2 inch (50.8 mm) bars
for 2-¼ inch (57.2 mm) bars
Universal arm 24 inch (609.6 mm) extension kit
ID Mount, for 8.6 - 11.2 inch (218.4 - 284.5 mm) diameter.
Universal bearing ID conversion kit
Spherical Bearing - 2-¼ inch (57.2 mm).
Bearing mounts to bracket to align the bar.
Spherical Bearing - 2 inch (50.8 mm).
Same as above, but for 2.0 inch (50.8 mm) diameter.
Order mounting hardware separately.
Ideal for mounting the BB5000 in deep or blind
bores, this ID bearing mount provides an ID mounting range
of 5.75 - 12.5 inches (146.1 - 317.5 mm). Easily install and
adjust the mount from the open face part of your bore.
Independently adjustable mounting legs also simplify centering the
mount in bores which are not perfectly round.
1.5 inch extension jaw to extend reach (need 4)
Bearing support assembly provides 4-way adjustable
bar alignment. Fits bores with ID’s from 11.5 - 24 inches (292.1
- 609.6 mm). Bar is held in place by a self-aligning bearing.
Assembly includes chuck and bearing, three sets of jaws, two
sets of jacking screws, and one set of 1 inch (25.4 mm) spacers.
Cantilever standoff mounts between two
bearing mounting brackets to ensure machine rigidity
when blind boring, trepanning, spade drilling, or tapping.
Order bearing mounting brackets separately. Order two
assemblies when using a double arm mount.
Portable Machine Tools, Inc. ©
Newberg, OR USA 97132
WWW.CPMT.COM inside U.S. 1-800-333-8311
46293
BB5000 ID STEADY REST PARTS VIEW
Portable Machine Tools, Inc. ©
Newberg, OR USA 97132
WWW.CPMT.COM inside U.S. 1-800-333-8311
20319
MOUNT ID CHUCK AND JAW ASSEMBLY 2-1/4 ID BB5000
Portable Machine Tools, Inc. ©
Newberg, OR USA 97132
WWW.CPMT.COM inside U.S. 1-800-333-8311
28799
CANTILEVER MOUNT
ASSEMBLY
24 (609.6)
36 (914.4)
48 (1219.2)
60 (1524.0)
72 (1828.8)
96 (2438.4)
144 (3657.6)
1
1
2
2
3
3
4
4
A A
B B
C C
D D
CLIMAX
Portable Machine Tools, Inc.
SIZE
CAGE CODE:
DWG NO:
REVISION
SCALE:
SHEET
OF
DRAWN BY:
CHECKED BY:
MFG SERVICES:
DATE:
DATE:
DATE:
ADDITIONAL INFORMATION AND
SPECIFICATIONS REQUIRED TO
MANUFACTURE THIS PART ARE
PROVIDED IN CLIMAX SPEC. P100
CAD/CAM STD
MATERIAL:
COSMETIC CLASS
EXCEPT AS NOTED
EXCEPT AS NOTED
DIMENSIONS ARE IN INCHES
PER ASME Y14.5M-1994
.X
.XX
.XXX
ANGLES
.030
.010
.005
.5
15509
C
2
2
FULL
JCC 7/26/2010
61505
CHART BBAR 2-1/4 KCR X 1.25 DIA
STSH 4MT
-
4-3D
A
CLIMAX
®
©
Portable Machine Tools, Inc. 2005 ALL RIGHTS RESERVED.*
CONFIDENTIAL PROPERTY OF
CLIMAX PORTABLE MACHINE TOOLS, INC.
APPROVED BY: DATE:
GEP
JAM
7/28/2010
7/28/2010
7/29/2010AGT
CLIMAX
Portable Machine Tools, Inc.
SIZE
CAGE CODE:
DWG NO:
REVISION
SCALE:
SHEET
OF
DRAWN BY:
CHECKED BY:
MFG SERVICES:
DATE:
DATE:
DATE:
ADDITIONAL INFORMATION AND
SPECIFICATIONS REQUIRED TO
MANUFACTURE THIS PART ARE
PROVIDED IN CLIMAX SPEC. P100
CAD/CAM STD
MATERIAL:
COSMETIC CLASS
EXCEPT AS NOTED
EXCEPT AS NOTE
DIMENSIONS ARE IN IN
PER ASME Y14.5M-1
.X
.XX
.XXX
ANGLES
.030
.010
.005
.5
15509
B
1
1
FULL
darren-w 3/9/2011
56524
Default
APPLICATOR OIL MIST
-
4-3D
??????????????????
CLIMAX®
©
Portable Machine Tools, Inc. 2005 ALL RIGHTS RESERVED.*
CONFIDENTIAL PROPERTY OF
CLIMAX PORTABLE MACHINE TOOLS, INC.
APPROVED BY: DATE:
