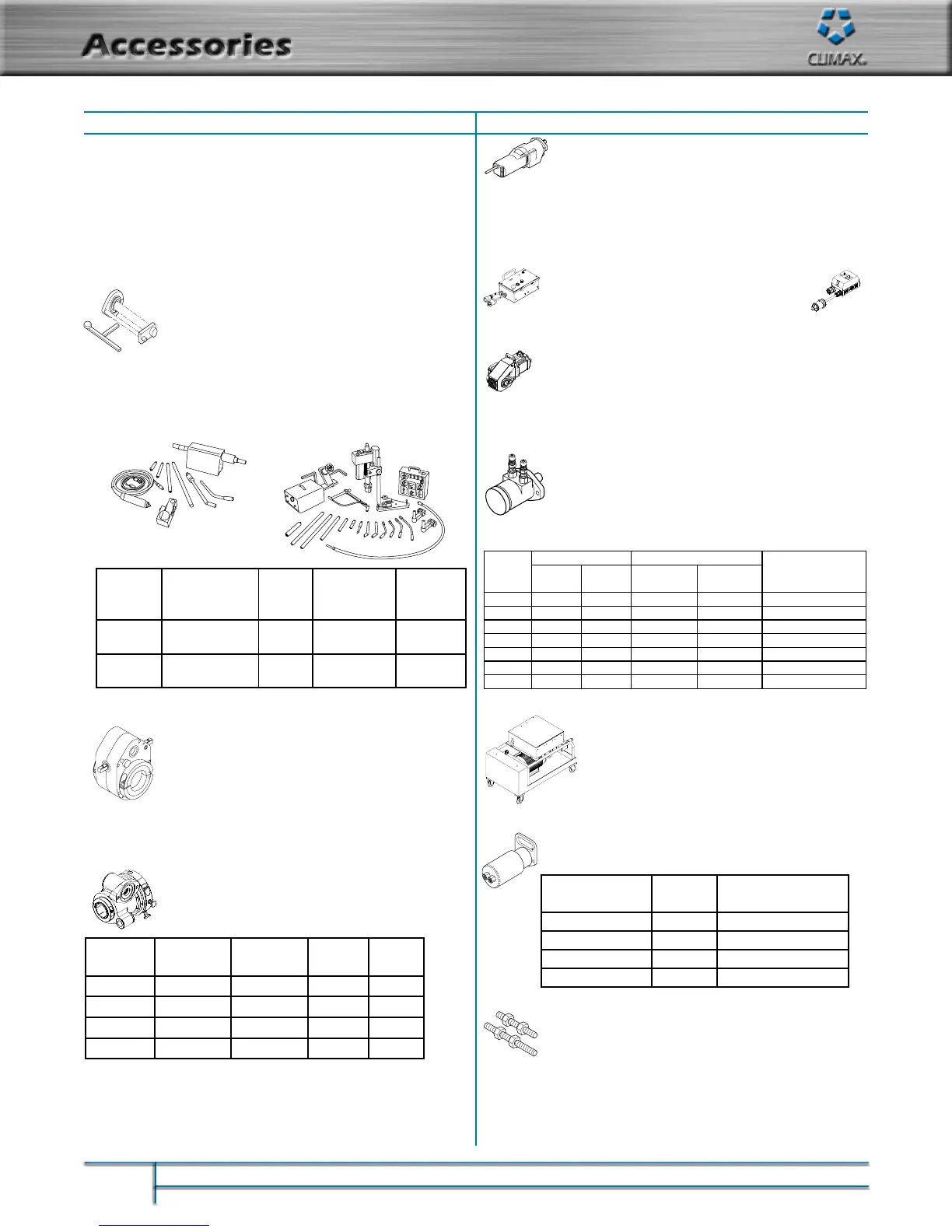

page 8
Assembly includes two-speed electric motor and
mounting flange.
Electric, 120 VAC, 50/60 Hz Single Phase, 112/55 bar rpm.
Electric, 120 VAC, 50/60 Hz Single Phase, 168/82 bar rpm
Electric, 230 VAC, 50/60 Hz, Single Phase, 112/55 bar rpm.
Electric, 230 VAC, 50/60 Hz Single Phase, 168/82 bar rpm
120V Speed Control, Non-CE
230V Speed Control, CE
120V Manual Motor Starter, CE
230V Manual Motor Starter, non-CE
Compact, lightweight servo drive system provides 3 - 250
RPMofvariablespeedandupto443.7ft-lbs(601.2N•m)
of torque at the bar, providing the power of a hydraulic
power unit in a ultra quiet, quick to set up package.
Electric servo motor, 460V, CE
Electric servo motor, 230V, CE
Reversible hydraulic motor and SAE 2-bolt mounting
flange to mount to the rotational drive housing.
Motor ports are
7
/8 - 14 SAE O-ring type. ½ inch dripless
quick-connect fitting kit installed.
Bar rpm’s are max at 6 gpm (22.7 L/min). (For 50 Hz
power units, reduce the bar rpm by 15%; bar torque
remains the same.) Also available with
3
/8 inch (9.5 mm) fitting kits.
Mounts anywhere on the bar. Reversible ratchet feed
mechanism has variable feed rate up to 0.19 inches
(0.48 mm) per revolution. Feeds the tool and bar by
moving along the stationary leadscrew. Adjustable
clamp collars on both ends clamp unit to the bar.
Includes auto stop.
For 2-¼ inch (57.2 mm) diameter bar.
For 2.0 inch (50.8 mm) diameter bar
Mounts anywhere on the bar. Features heavy-duty cast
aluminum housing, Timken roller bearings, and sealed,
lifetime lubrication. Clamp ring mounts assembly to
spherical bearings with one bolt.
Part No. Gen
Worm Gear
Reduction
Accepts
Bar Dia. Key Size
49684 4th 4:1 2-¼ inch ¼ inch
29913 3rd 4:1 2 inch ¼ inch
34028 3rd 4:1 2 inch 8 mm
53165 4th 12:1 2-¼ inch ¼ inch
Automated Bore Welders
Add an Automated Bore Welder to your BB5000 Boring Machine with
the convenient bore welder interface kit.
Attach the bore welder to the BB5000’s mounting fixture to ensure
perfect alignment for both welding and machining.
A single setup for both welding and machining saves time, and helps
get the job done quickly. (All bore welders include welding head,
torches, mounting rod & radial mount, torch extensions, conduit
switch assembly, tips, nozzles, diffuser, and liner. See table below to
compare other features & components.)
See the Climax BoreWelder product literature for details.
Complete interface kit for 2-¼ inch (57.2 mm)
diameter bar.
Alignment tool only for 1-¾ inch (44.5 mm)
AutoBoreWelder 3000Z
AutoBoreWelder 1000
diameter bar.
Alignment tool only for 1-¼ inch (31.8 mm)
diameter bar.
Portable Machine Tools, Inc. ©
Newberg, OR USA 97132
WWW.CPMT.COM inside U.S. 1-800-333-8311
28531
ROTATIONAL DRIVE
ASSEMBLY BB5000
Portable Machine Tools, Inc. ©
Newberg, OR USA 97132
WWW.CPMT.COM inside U.S. 1-800-333-8311
37538
Available 5 Hp (3.7 kW) 6 gpm (227 L/min) and 10
Hp (7.5 kW) 10 gpm (37.9 L/min) units with 3-phase
electric motor, with variable displacement pump,
allow speed control without sacrificing torque.
The 3 Hp (2.2 kW) motor comes complete, ready for 2-bolt
mounting directly on the rotational drive.
Includes pneumatic conditioning unit.
6 gpm
10 gpm
(22.7 L/min) (37.9 L/min)
39837 2.2 36 148 246 92 ft-lbԛ(124.7 N•m)
39843 3.6 60 90 150 159 ft-lbԛ(215.6 N•m)
39844 5.9 96.7 55 92 270 ft-lbԛ(367 N•m)
39845 7.3 119.6 44 73 342 ft-lbԛ(463.7 N•m)
39846 8.9 145.8 36 60 417 ft-lbԛ(565.4 N•m)
39847 14.1 231.1 23 38 652 ft-lb (884.0 N•m)
43452 17.9 293.3 17 30 764 ft-lb (1035.8 N•m)
Part
Number
Torque at the bar
(calculated value)
Motor Capacity Max bar rpm at
in
3
cm
3
Stationary leadscrew assembly is fixed in position by
screwing it into the rotational drive assembly or into tack
weld mounting block. Acme nut holds leadscrew in place.
Includes leadscrew and two Acme nuts.
Leadscrews available in lengths below. Other lengths available by request.
12 inch (304.8 mm) travel
24 inch (609.6 mm) travel
36 inch (914.4 mm) travel
48 inch (1219.2 mm) travel
Leadscrew tack weld block
Part number
Max Bar
RPM
Torque at the bar
(calculated value)
39112 (non-CE) 120 rpm 115 ft-lb (155.9 N•m)
28614ԛ(CE) 120 rpm 115 ft-lb (155.9 N•m)
37498ԛ(non-CE) 57 rpm 234 ft-lb (317.3 N•m)
28697
(CE) 57 rpm 234 ft-lb (317.3 N•m)
Model
Welding Dia.
Inch (mm)
Facing
Torch
Option
Wire feeder
included
Auto-skip
included
BW1000 0.88 - 12.0
(22.4 - 304.8)
No No No
BW3000Z 0.88 - 13.0
(22.4 - 330.2)
Yes Yes Yes
CLIMAX Portable Machine Tools, Inc.
SIZE
CAGE CODE:
DWG NO:
POCKET
SCALE:
SHEET
OF
DRAWN BY:
CHECKED BY:
MFG SERVICES:
DATE:
DATE:
DATE:
ADDITIONAL INFORMATION AND
SPECIFICATIONS REQUIRED TO
MANUFACTURE THIS PART ARE
PROVIDED IN CLIMAX SPEC. P100
CAD/CAM STD
MATERIAL:
COSMETIC CLASS
EXCEPT AS NOTED
EXCEPT AS NOTED
DIMENSIONS ARE IN INCHES
PER ASME Y14.5M-1994
.X
.XX
.XXX
ANGLES
.030
.010
.005
.5
15509
B
3 3 1/4
EW
2/27/09
52876
LISTED
BB5000 SERVO DRIVE PACKAGE 460V
CE
4-3D
A
CLIMAX
®
© CLIMAX Portable Machine Tools, Inc. 2005 ALL RIGHTS RESERVED.*
CONFIDENTIAL PROPERTY OF
CLIMAX PORTABLE MACHINE TOOLS, INC.
APPROVED BY: DATE:
