Climbing Technology CLICK UP - Installation

drawings
Climbing Technology by Aludesign S.p.A. via Torchio 22
24034 Cisano B.sco BG ITALY www.climbingtechnology.com
2/35
IST12-2D645CT_rev.13 11-21
Ø12 mm
TECHNICAL DATA
MODEL CLICK UP KIT
REF. No. 2K645
WEIGHT 115 g (only device)
ROPE
dynamic rope
EN 892 Ø 8.6÷10.5 mm
CONNECTOR
YOU MUST USE:
the included hot forged light alloy
karabiner Concept SGL HC with hard
coat anodization. It presents a spring
bar which prevents the possibility of
the cross loading.
TEST OF THIS
DEVICE MADE
BY
VVUU a.s.
NOTIFIED BODY “1019”
Pikartska 1337/7 716 07
Ostrave - Radvanice
CZECH REPUBLIC
US PATENT No. 9,901,757
1 2
LEGEND
2.1 - leader 2.2 - hand 2.3 - fall
2.4 - anchor 2.5 - lowering 2.6 - second

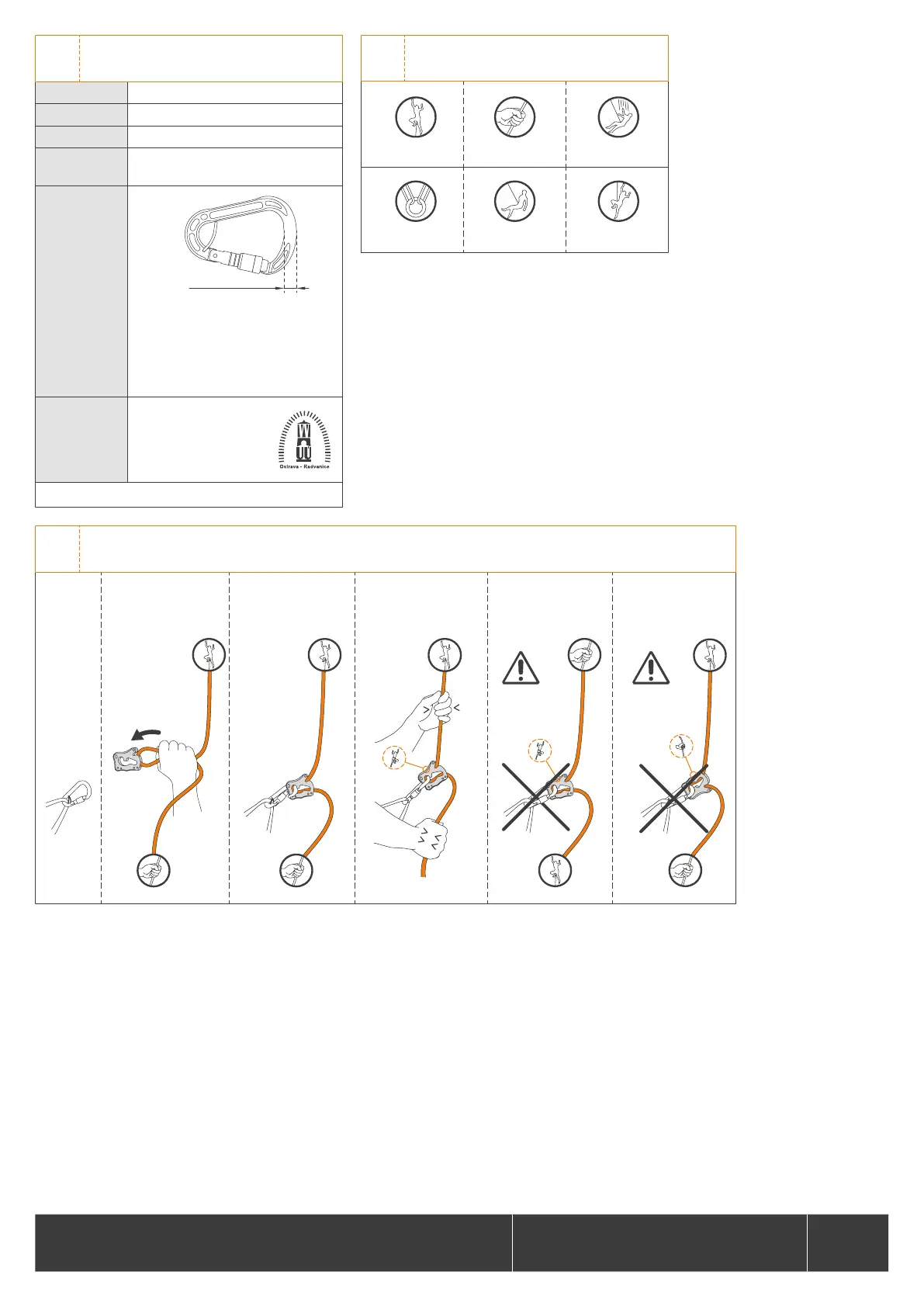

INSTALLATION
3.1
SETUP
3.2
SETUP
3.3
SETUP
3.4
SETUP IS OK!
3.5
NO!
3.6
NO!
3
