Clint CHA 41 - Physical and Hydraulic Specifications; Unit Dimensions and Layout; Weight and Connection Details

20

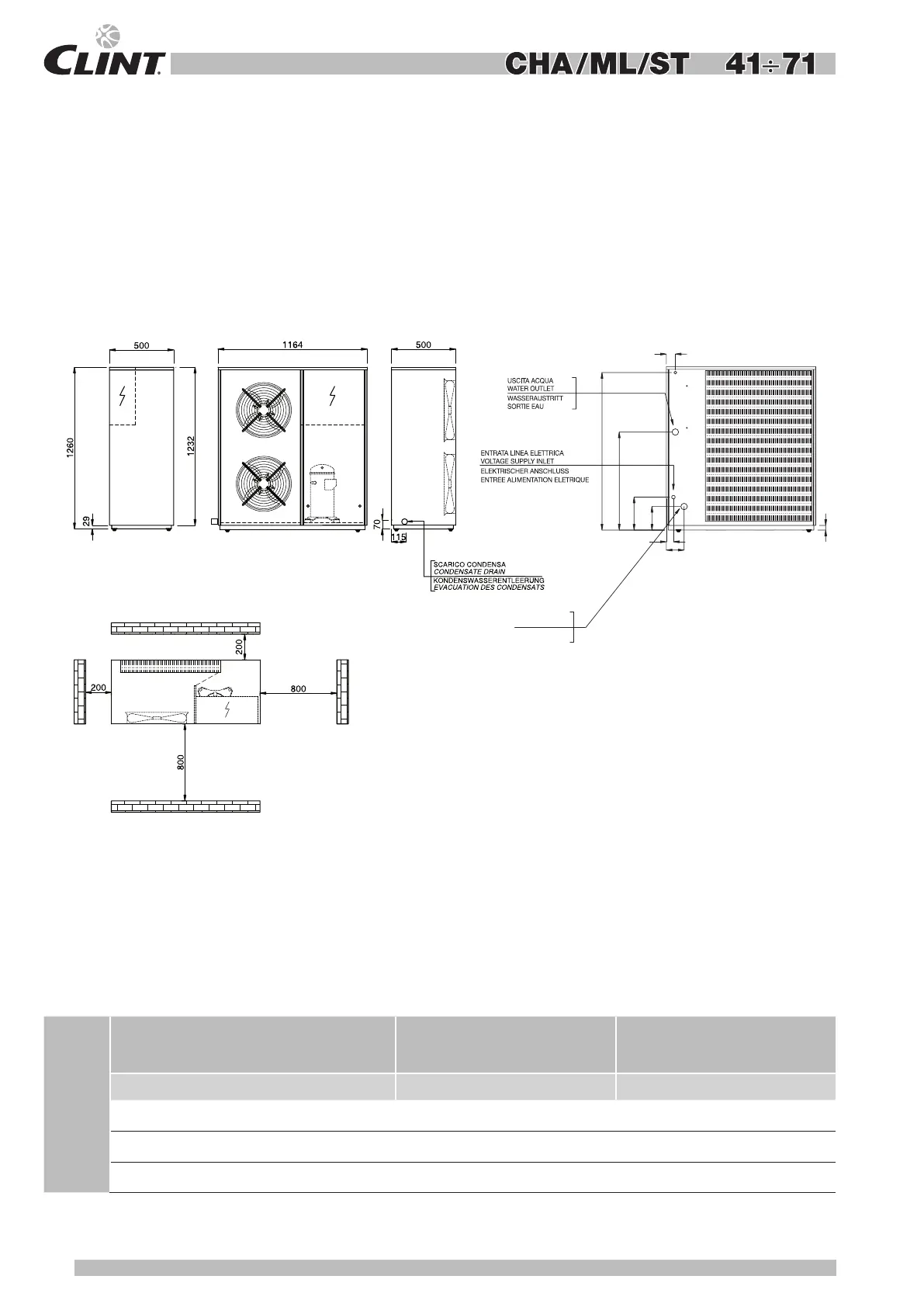

DIMENSIONI DI INGOMBRO, PESI, SPAZI DI
RISPETTO E COLLEGAMENTI IDRAULICI
AUSSENMAßE, GEWICHTE, RAUMBEDARF
UND HYDRAULISCHE ANSCHLÜßE
DIMENSIONS, WEIGHTS, CLEARANCES
AND HYDRAULIC CONNECTIONS
ENCOMBREMENTS, POIDS, ESPACES
POUR ENTRETIEN ET RACCORDEMENTS
HYDRAULIQUES
MOD.
Peso in funzione / Operating weight
Betriebsgewicht / Poids en fonction
Entrata acqua / Water inlet
Wassereintritt / Entrée eau
Uscita acqua / Water outlet
Wasseraustritt / Sortie eau
(kg) Ø Ø
41
209 1" M 1" M
51
212 1" M 1" M
71
214 1" M 1" M
55
255
182
1222
36
140
760
ENTRATA ACQUA
WASSEREINTRITT
WATER INLET
ENTREE EAU
70
