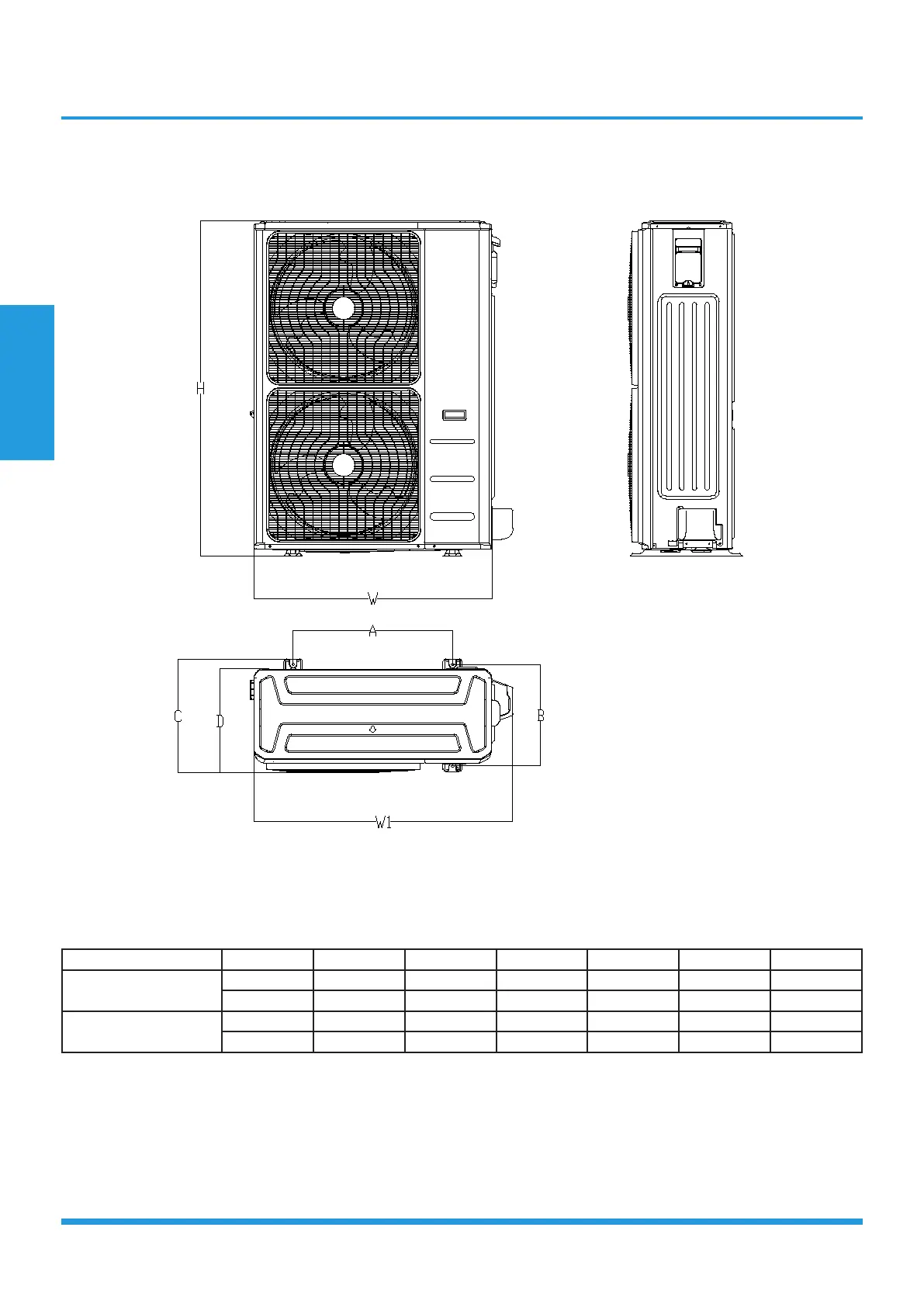

Specifications
Page 12
Double
Fan Outdoor Unit
Model
unit
W
D
H
W1
A
B
MC2-Y 140T
mm
952
415
1333
1045
634
404
inch
37.48
16.34
52.48
41.14
24.96
15.9
MC2-Y 160T
mm
952
415
1333
1045
634
404
inch
37.48
16.34
52.48
41.14
24.96
15.9
11
13
Table of Contents
Section 1
4
Table of Contents
4
Model Reference
5
General Specifications
6
Dimensional Drawings
10
Centre of Gravity
13
Electrical Wiring Diagrams
16
Refrigerant Cycle Diagrams
30
Capacity Tables
34
Capacity Correction Factor for Height Difference
58
Noise Data
64
Electrical Characteristics
70
Static Pressure
71
Section 2
76
1 Operation Modes and Functions
77
Abbreviations
77
Safety Features
77
Display Function
77
Fan
77
Cooling Mode
77
Heating Mode(Heat Pump Models)
78
Auto Mode
78
Drying Mode
78
Timer Function
78
Sleep Function
78
Auto-Restart
79
Follow Me
79
Drain Pump Control
79
2 Remote Controller Functions
80
LCD Wired Remote Controller
80
Centralized Controller
84
Using the Wire Controller to Set External Static Pressure
85
Using the Wire Controller to Set Airflow Rate
85
Section 3
87
Accessories
88
Installation Overview
89
Location Selection
90
Indoor Unit Installation
91
Outdoor Unit Installation
93
Drainage Pipe Installation
94
Refrigerant Pipe Installation
97
Vacuum Drying and Leakage Checking
98
Additional Refrigerant Charge
99
Engineering of Insulation
100
Engineering of Electrical Wiring
101
Test Operation
101
Introduction
104
Charts for Friction Losses in Round Ducts
104
Dynamic Losses
105
Corresponding Relation between Rectangular Duct and Round Duct
105
Method for Duct Calculation
107
Unit Conversion
107
Recommended Outlet Velocity for Different Occasions
107
