M42740M4-02 02/10/08 page 36

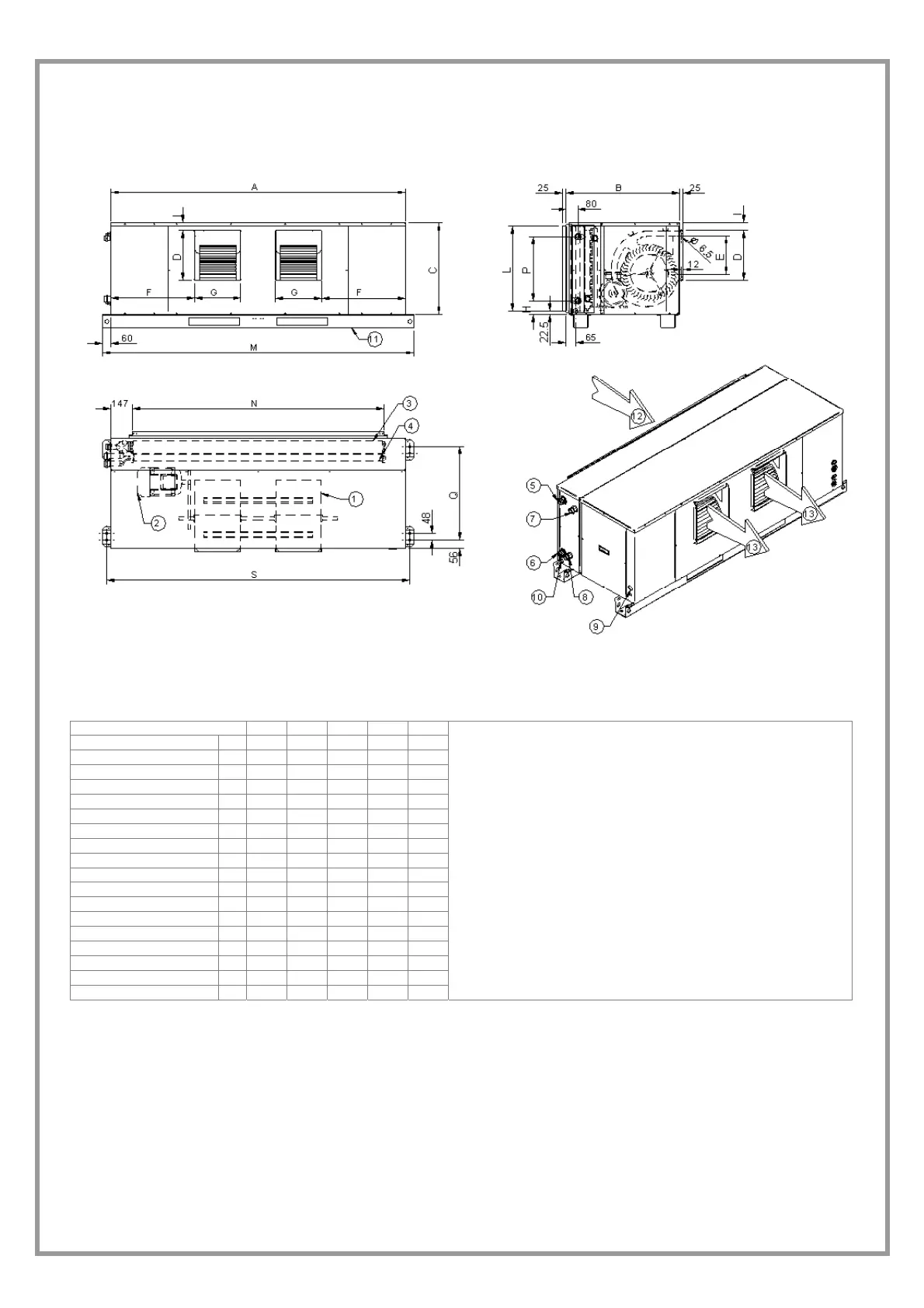

Size 142-162-182-202-242
Size 142 162 182 202 242
A mm 2015 2015 2015 2515 2515
B mm 775 775 775 850 850
C mm 630 630 630 680 680
D mm 345 345 345 408 408
E mm 263 263 263 200 200
F mm 571 571 571 735 735
G mm 316 316 316 375 375
H mm 94 94 94 71 71
I mm 52 52 52 38 38
L mm 582 582 582 632 632
M mm 2130 2130 2130 2630 2630
N mm 1720 1720 1720 2220 2220
P mm 442 442 442 492 492
Q mm 642 642 642 742 742
S mm 2070 2070 2070 2570 2570
Length mm 2015 2015 2015 2515 2515
Depth mm 775 775 775 850 850
Height mm 730 730 730 680 680
(1) CENTRIFUGAL FAN
(2) FAN MOTOR
(3) MAIN WATER COIL
(4) WATER HEATING COIL (OPTIONAL)
(5) EXCHANGER WATER OUTLET
MAIN WATER COIL
(6) EXCHANGER WATER INLET
MAIN WATER COIL
(7) EXCHANGER WATER OUTLET
ADDITIONAL WATER COIL
(8) EXCHANGER WATER INLET
ADDITIONAL WATER COIL
(9) POWER INPUT
(10) CONDENSATE DISCHARGE
(11) EASILY REMOVABLE UNIT SUPPORT BASE
(12) RETURN AIR DIRECTION
(13) SUPPLY AIR DIRECTION
