44
M0CZ00007-03

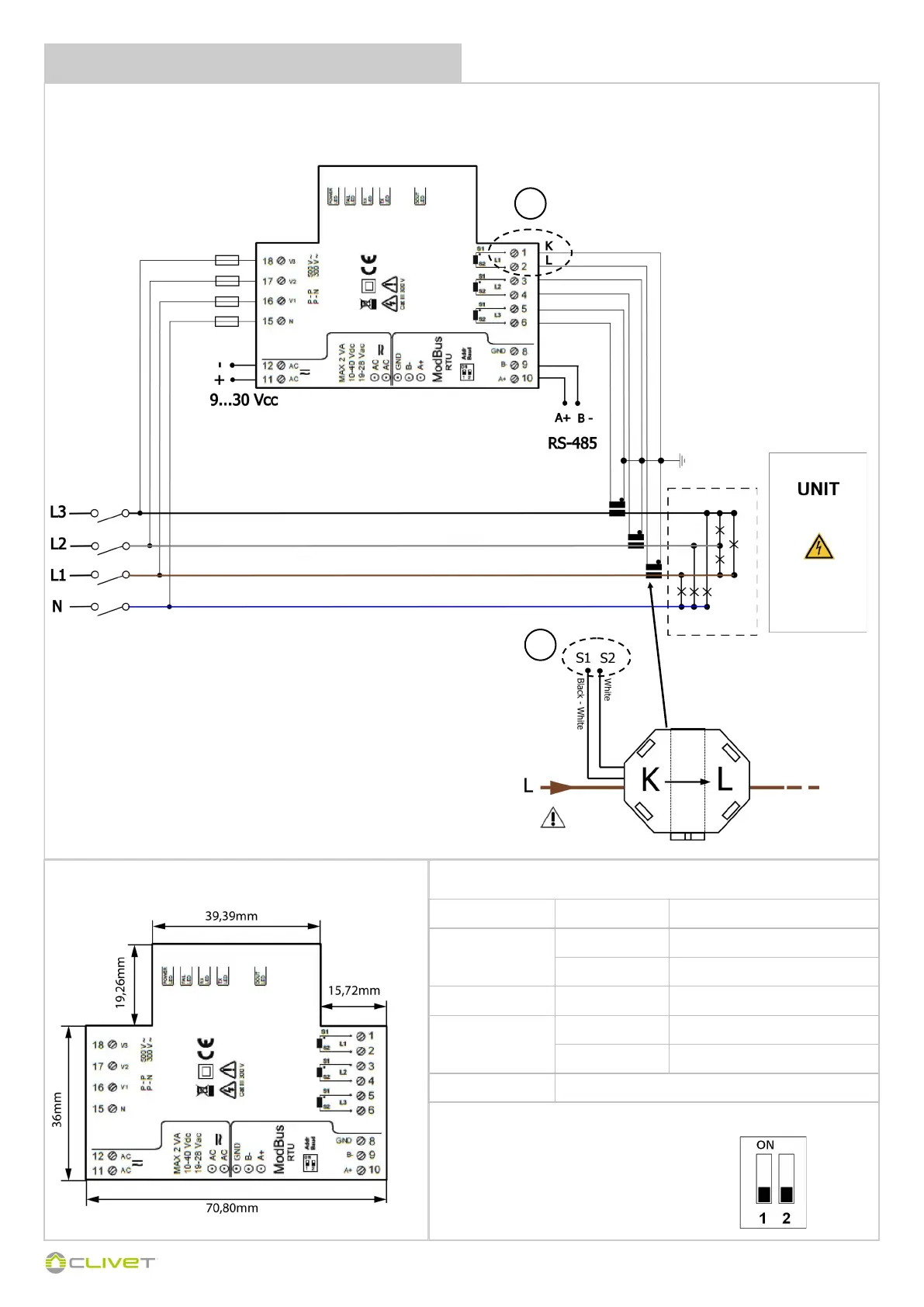

BUS RS485
ELECTRICITY METER - THREE-PHASE
Electrical connections
The energy values is acquired by the CONTROL4 NGR via a ModBUS serial communication line
Assembly on DIN rail
Transformer
(amperometric “split
core” type)
A
A
Install 3 amperometric transformers (supplied) on the
3 phases to be monitored.
Function State Meaning
Power (gren) On Powered
Off Not powered
Fail (yellow) On Inverted current phase
RX and TX
(red)
Blink Communication OK
Off Communication KO
Dout (gren) Not used
DIP position
Diagnostics
