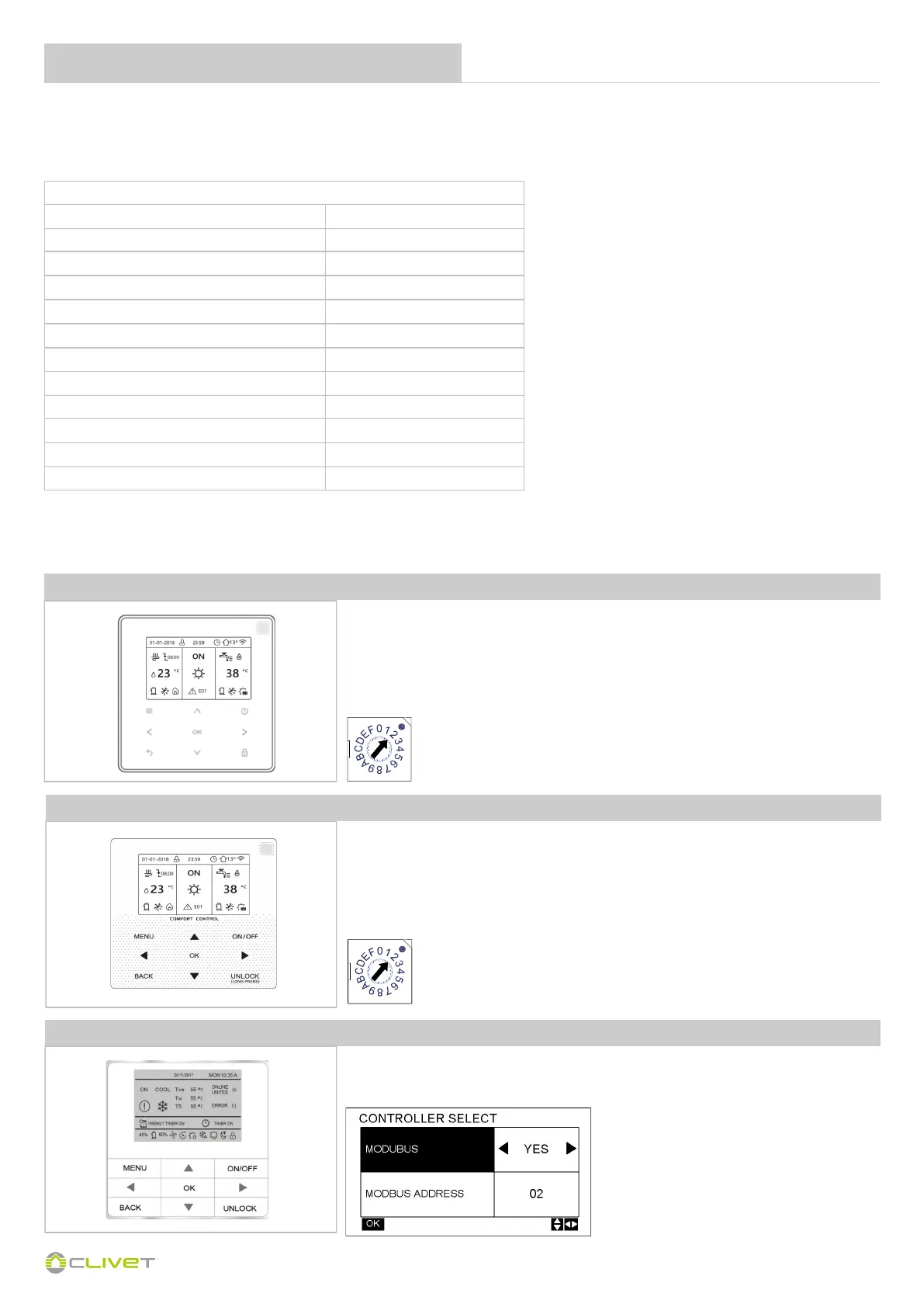

SYSTEM COMPONENT ADDRESSING
ADDRESSING
Each unit inside the network is recognised thanks to an address.
The address must be stored in the memory of the unit using a keyboard or thermostat.
* The addresses 17,18 and next are used both for terminals
and for the single zone modules (page 89).
The addresses with the lowest value must be assigned to
single zone modules.
Example:
First zone module: address 17
Second zone module: address 18
First terminal:address 19
Second terminal: address 20
WSAN-YSI 10.1-22.2 SHEEN
Enabling
Menu > Project menu > set password >controller select > modbus >YES
Modbus address = 2
SPHERA EVO / SPHERA EVO 2.0 / WiSAN-YME 1 S EDGE EVO 2.0 - EXC
Method A
Setting
Unit main board
S3 = 2
S3
WSAN-YMI 21-141 EDGE EVO
The Modbus addressing of the unit can be set in two modes:
with the rotary switches (Method A) or from the HMI keyboard (Method B, Sphera Evo 2.0,
Edge EVO 2.0)
Where possible, it is recommended to make the setting from the HMI.
Method B
Setting
For serviceman > 17 HMI address set > 17.2
HMI address from BMS = 2
Method A
Setting
Unit main board
S3 = 2
S3
The Modbus addressing of the unit can be set in two modes:
with the rotary switches (Method A, for AA models, size 21-81) or from the HMI keyboard
(Method B)
Where possible, it is recommended to make the setting from the HMI.
Method B
Setting
For serviceman > 17 HMI address set > 17.2
HMI address from BMS
Check that each unit has a different address.
Serial addressing
Domestic hot water module 1
Heat pump 2
Unit for fresh air (Elfo Fresh EVO) 3,4,5,6
Generic I/O modules 7,8
Unit Sinergy 9
Elfo Pack 10
Multiple area modules 11,12,13,14,15
Terminals / Single zone modules 17,18…,48,49,60,61,...*
Mixing module 50,51,52
Air quality probes 110..121
HID-TSmart thermostats 150...179
Electricity meter 170,171,172
