SYSTEM COMPONENT ADDRESSING
HID-TI6 THERMOSTATS

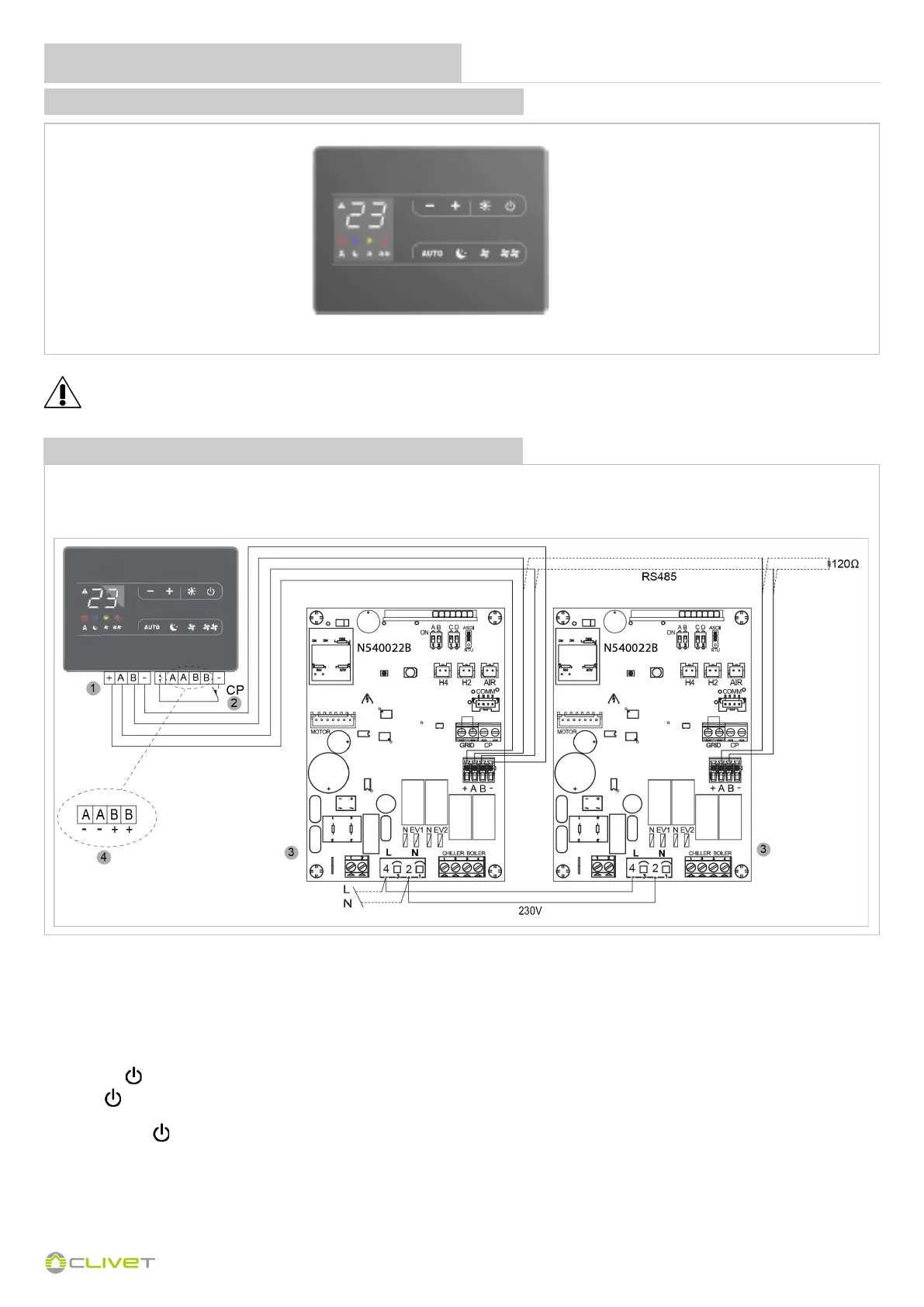

1) Connection terminal block (fancoils serial)
2) Connection terminal block of presence contact
3) Electronic board
4) Serial connection to the CONTROL4 NRG bus (via serial RS-485)
CONNECTIONS
Use the icons – to move inside the menu.
Use the icon to select menu items and to confirm changes made.
Pressing and confirming the change will switch to the next item.
To exit from menu:
Press the icon for 10sec.
Or wait 30 sec. for automatic shutdown
Attention: after 30 seconds from the last action, the control goes off and the settings is memorised.
The thermostat only works in conjunction with ELFOROOM2 fan coil units
The terminals for connecting to the CONTROL4 NRG bus are located on the HID-T6 thermostat unit
