SYSTEM COMPONENT CONFIGURATION
select
A
select
A
A
B
C
A
C
B

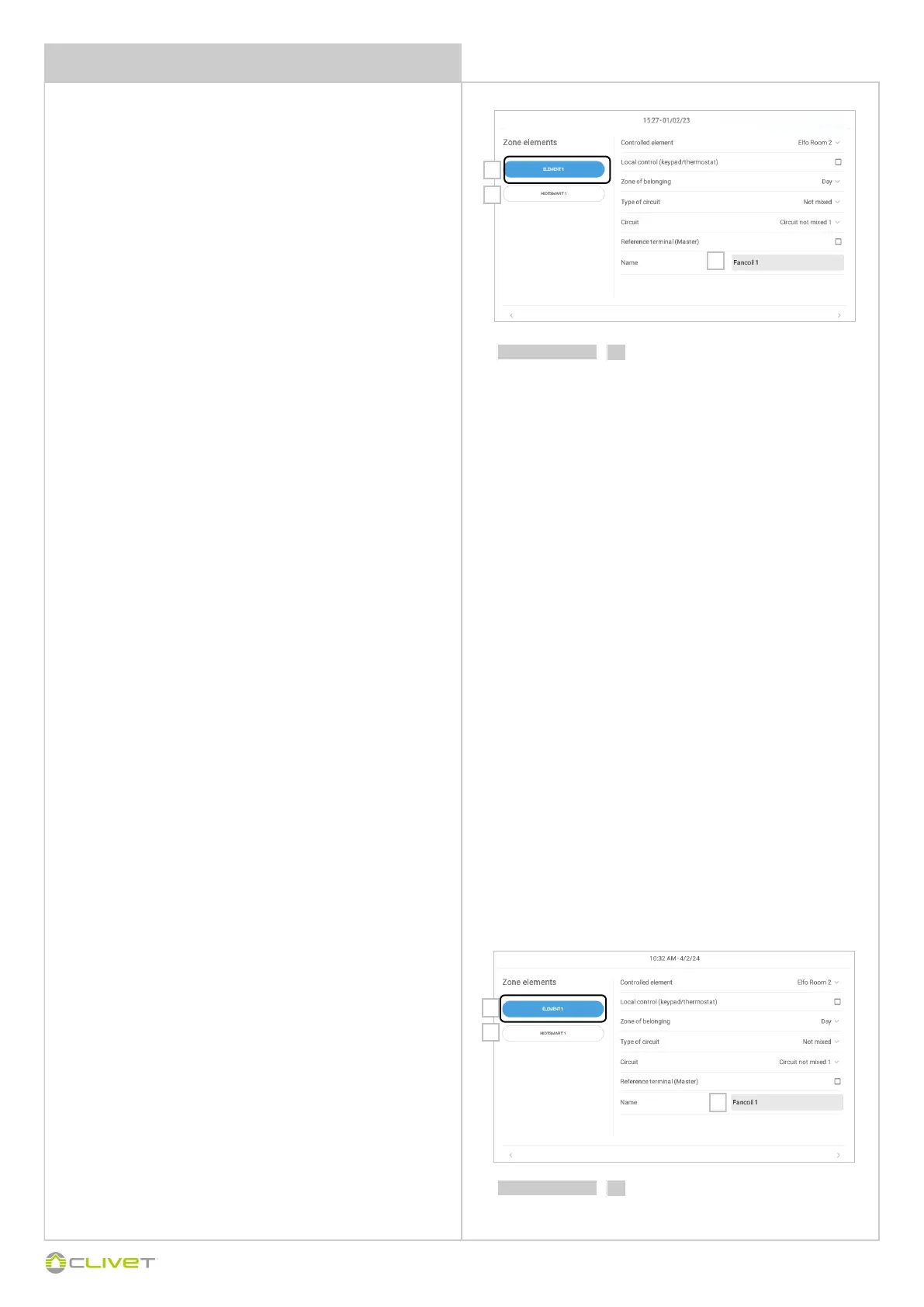

Zone elements
They are listed:
A. Element 1 to be defined:
Single zone modules
Terminals (fan coils)
B. Smart thermostats
A - Single radiant zone modules
For each single zone module available, define the type of controlled
component for each channel:
 Fan coil
 Radiator
 Radiant panel
Local control (keypad/thermostat)
Belonging area:
 kitchen, living room, etc.
Type of circuit assigned:
 mixed
 non-mixed
Number of circuit:
 mixed circuit n.1 / 2 / 3
 non-mixed circuit n.1 / 2 / 3
Terminal of reference (master)
Use mode
 HeatCool
 Cool only
 Heat only
To modify the name, select D.
Zone terminals (fan coils)
Define the belonging area for each component available in the
system. (radiator/fan coil)
Local control (from keyboard or thermostat)
Belonging area:
 kitchen, living room, etc.
Type of circuit assigned:
 mixed
 non-mixed
 mixed circuit n.1 / 2 / 3
 non-mixed circuit n.1 / 2 / 3
Terminal of reference (master)
To modify the name, select D.
