CLIVET Cristallo Series - Unit Addressing Setup; Type B Terminal Board Wiring; Single Unit Wired Control; Centralised Control & Gateway

10
Multifunction board

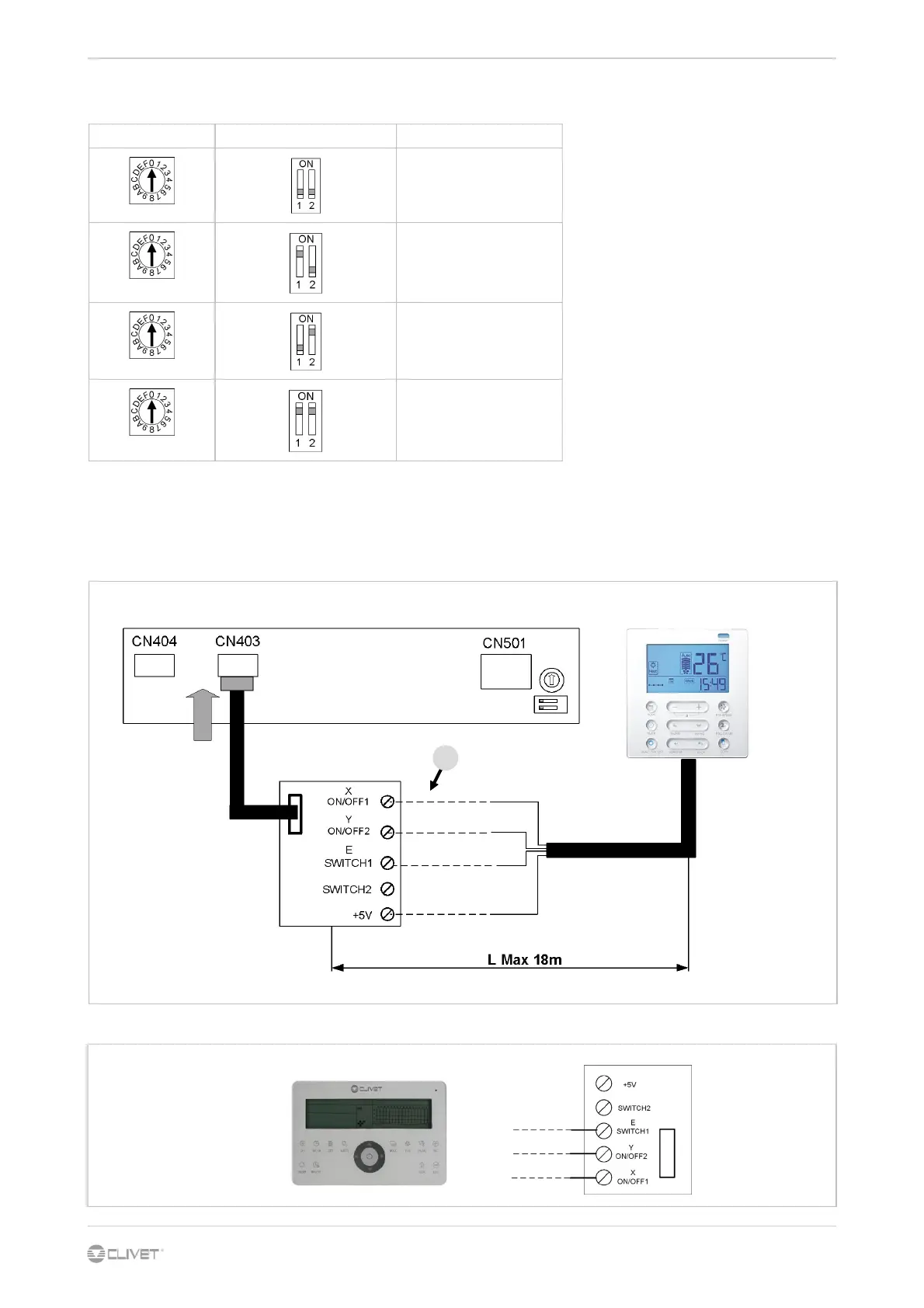

Wired control for single unit connection:
Cut the cable and connect with AWG24
Type of cable to be used (A): shielded cable 4 wires 0,20mm2 (AWG24)
A
ENC2
Dip-switch S1
Adress
0 (0) - 15 (F)
16 (0) - 31 (F)
31 (0) - 47 (F)
48 (0) - 63 (F)
Unit addressing (for multiple indoor units connection max 64)
Set the address on each example unit:
Unit 1: ENC2 = 0
Unit 2: ENC2 = 1
Etc…..
KJR120CI
Terminal board
Type B terminal board connection
Brown
Yellow
Red
Black
Centralised wired control connection, data converter or BMS gateway
Es: Centralised CCM30-B
