8

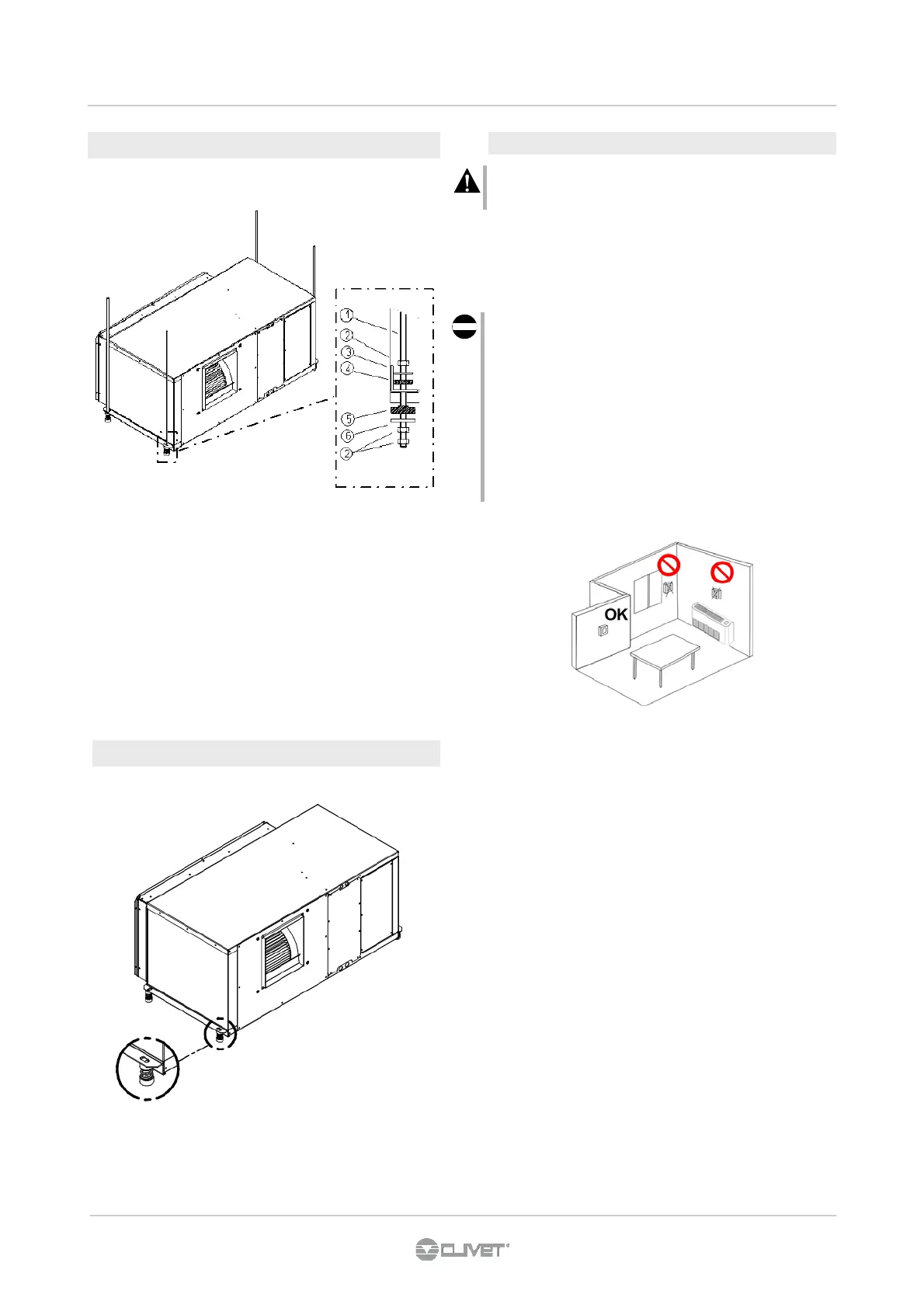

3 - POSITIONING
Hanging
in support
The choice of the installation point is important for the
comfort of the served area and the energy consumptions.
The thermostat must be positioned:
• in a room with medium temperature and humidity
conditions, representative of the other rooms;
• at a height of 150 cm;
• preferably on an inner wall;
Positions to avoid:
• near heat sources;
• exposed to direct solar radiation;
• in a position with exhaust air from outlets or diffusers;
• behind curtains or pieces of furniture;
• - near doors and windows to the outside;
• - on walls crossed by heating chimneys or pipes;
• - on external walls.
3.3 THERMOSTAT POSITIONING (OPTIONAL)
(1) Tapped bar M10 (M12 for sizes 81-91-101)
(2) galvanized steel nuts
(3) galvanized steel plain washer Ø external 30mm
(4) rubber plain washer Ø external 30mm thickness 6mm
(5) Anti-vibration rubber or spring
(6) galvanized steel plain washer Ø external 40mm
