M02S40N16-00 WSA-XEE 122-402 55

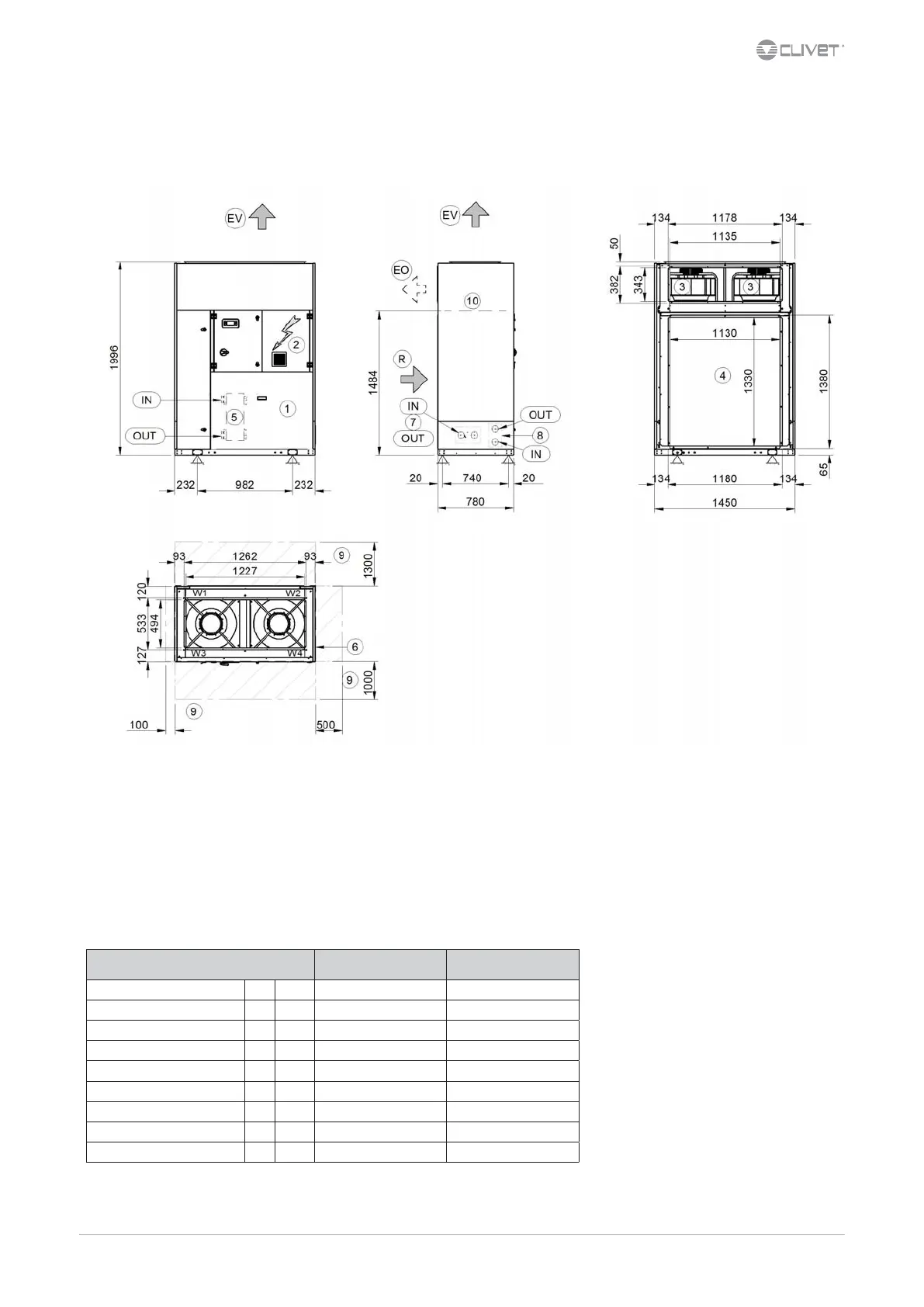

Dimensional drawings
Sizes 122-162
Size 122 162
A - Length mm 1450 1450
B - Width mm 780 780
C - Height mm 1996 1996
W1 Supporting Point kg 88 83
W2 Supporting Point kg 124 151
W3 Supporting Point kg 107 105
W4 Supporting Point kg 144 173
Shipping weight kg 456 506
Operating weight kg 463 513
La presenza di accessori opzionali può comportare una variazione signicativa dei pesi indicati in tabella.
(1) Compressor compartment
(2) General electrical panel
(3) Exhaust radial electric fans
(4) External exchanger
(5) Internal exchanger
(6) Electric line input
(7) Hydraulic ttings ush with unit (optional)
(8) Partial recovery water ttings (optional)
(9) Functional clearances
(10) Separation line
(R) Outdoor air return
(EV) Vertical air exhaust (standard)
(EO) Horizontal air exhaust (optional)
DAB2S122_162_0 REV00
