M02S40N16-00 WSA-XEE 122-402 57
Sizes 262-302-352-402
Size 262 302 352 402
A - Length mm 2650 2650 2650 2650
B - Width mm 780 780 780 780
C - Height mm 1996 1996 1996 1996
W1 Supporting Point kg 128 138 150 153
W2 Supporting Point kg 192 202 242 250
W3 Supporting Point kg 146 154 164 168
W4 Supporting Point kg 210 217 255 265
Shipping weight kg 667 704 804 829
Operating weight kg 676 711 810 836
La presenza di accessori opzionali può comportare una variazione signicativa dei pesi indicati in tabella.

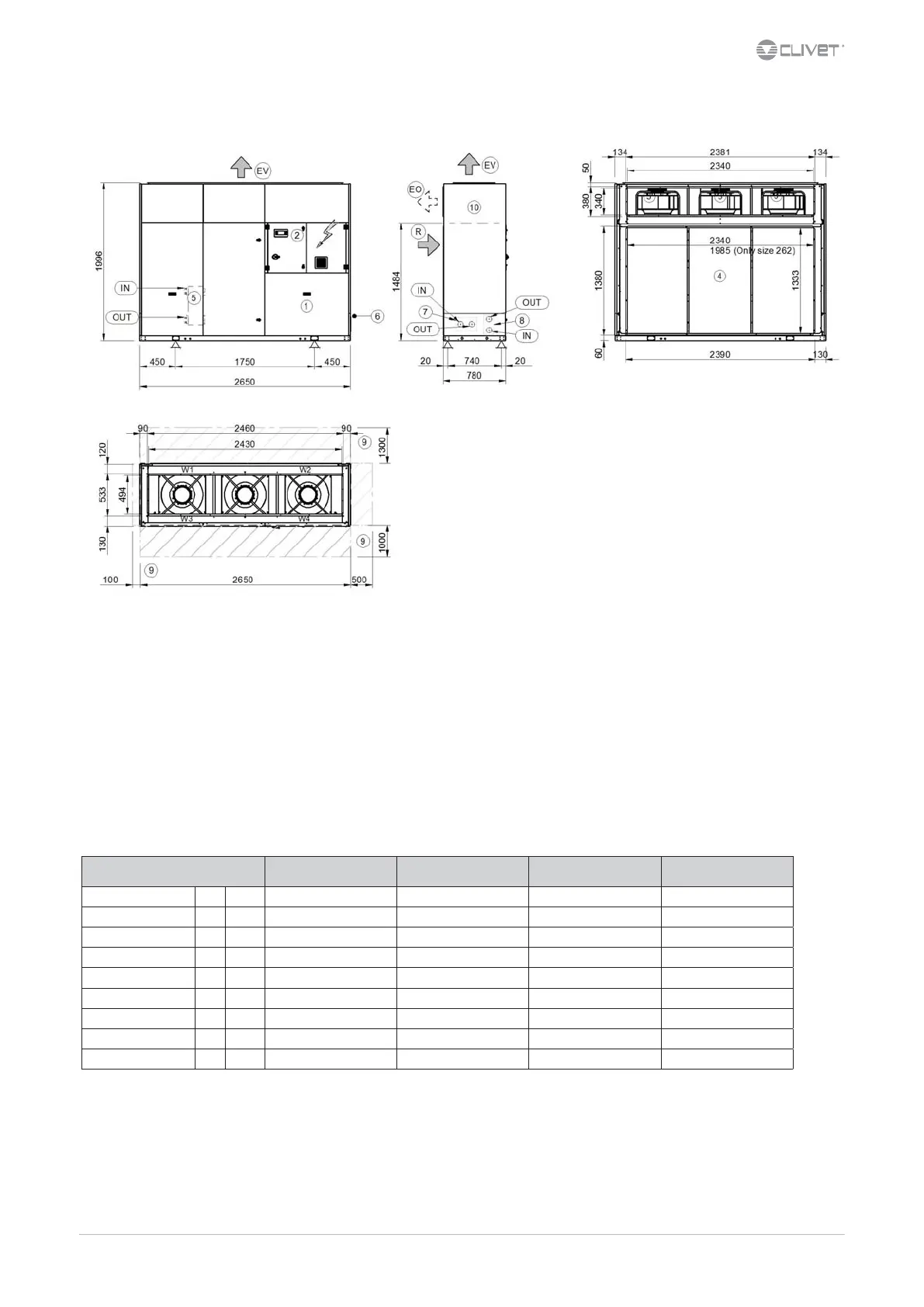

(1) Compressor compartment
(2) General electrical panel
(3) Exhaust radial electric fans
(4) External exchanger
(5) Internal exchanger
(6) Electric line input
(7) Hydraulic ttings ush with unit (optional)
(8) Partial recovery water ttings (optional)
(9) Functional clearances
(10) Separation line
(R) Outdoor air return
(EV) Vertical air exhaust (standard)
(EO) Horizontal air exhaust (optional)
DAB2S262_402_0 REV00
DATA 23/06/2016
