M0V940M13-06 WSN-XIN 21-141 15
5.6 Operation sequence
Close all vent valves in the high points of the unit hydraulic circuit
Close all drain valves in the low points of the unit hydraulic circuit:
•
Heat exchangers
•
Pumps
•
collectors
•
storage tank
1. Carefully wash the system with clean water: ll and drain the system several times.
2. Apply additives to prevent corrosion, fouling, formation of mud and algae.
3. Fill the plant
4. Vent the system
5. Execute leakage test.
6. Isolate the pipes to avoid heat dispersions and formation of condensate.
7. Leave various point of service free (wells, vent-holes etc).
Neglecting the washing will lead to several lter cleaning interventions and at worst cases can cause damages to the exchangers and the
other parts.

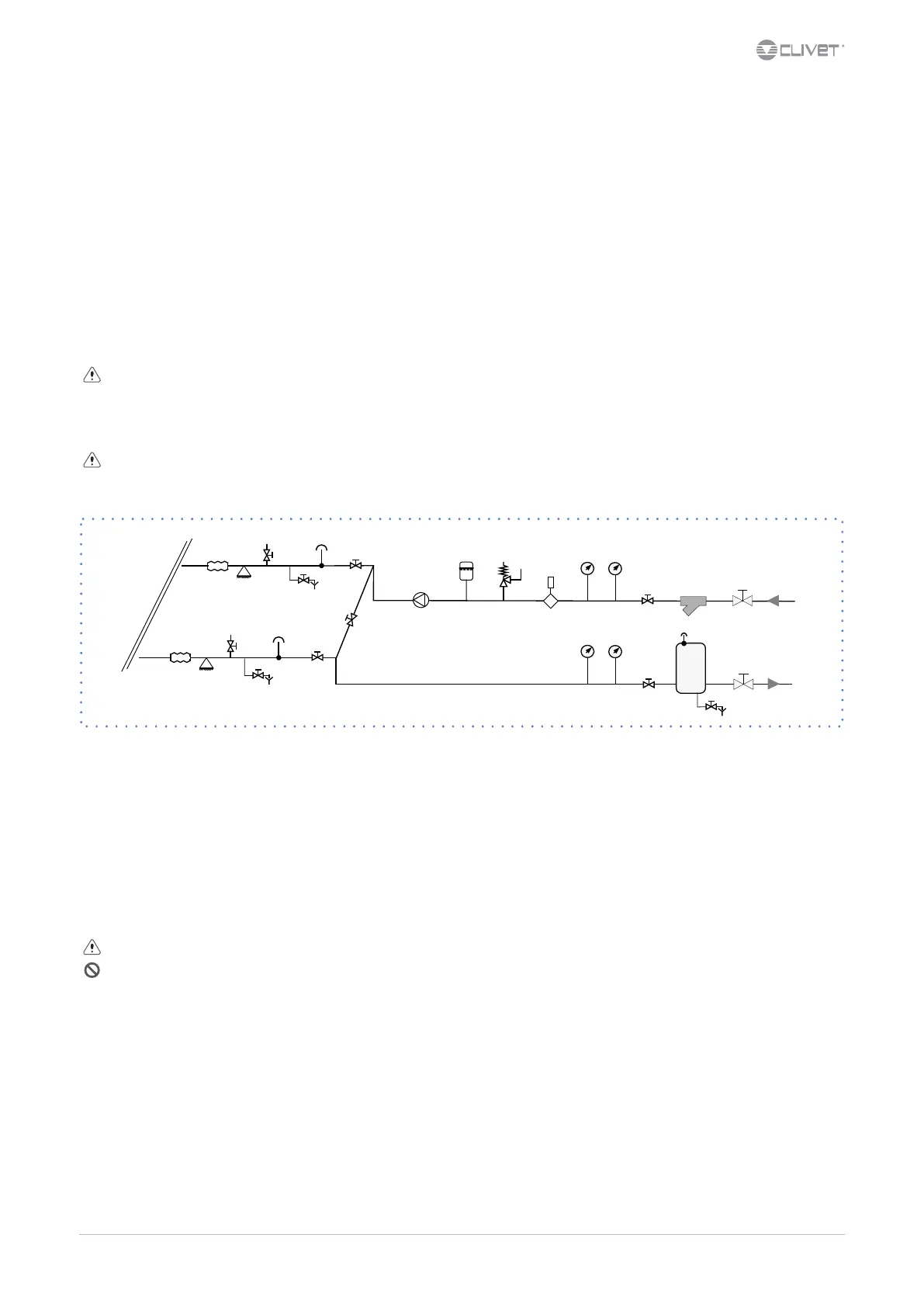

5.7 Recommended connection
The installer must dene:
•
component type
•
position in system
2
7
9
13
3
1
14
UNIT
6 10 12
4
5
8
15
F
11
1 antivibration joints 9 safety valve
2 piping support 10 Flow Switch
3 exchanger chemical cleaning bypass 11 pressure gauge
4 drain valve 12 thermometer
5 vent 13 lter
6 shut-o valve 14 Internal storage tank
7 Pump / circulating pump 15 Cleaning system bypass
8 expansion vessel
5.8 Water lter
It must be installed immediately in the water input of the unit, in a position that is easily accessible for cleaning.
The lter never should be removed, this operation invalidates the guaranty.
5.9 Domestic hot water module
10 Accessoriesp.49
5.10 Domestic hot water with solar energy
10 Accessoriesp.49
5.11 Boiler management
10 Accessoriesp.49
