CLIVET WSN-XIN Series User Manual

M0V940M13-06 WSN-XIN 21-141 5

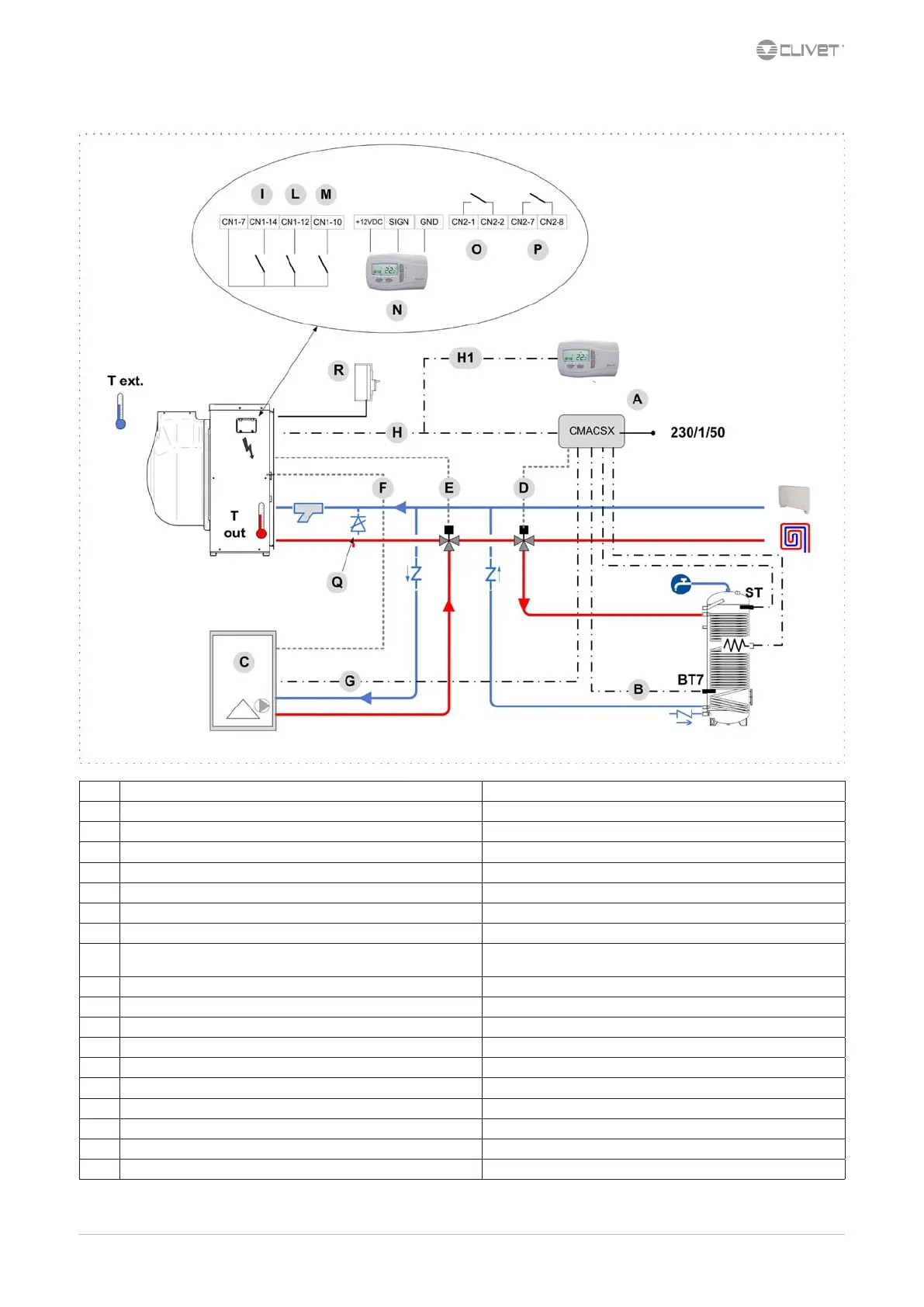

1 Installation quick guide
chapter / page
A Domestic hot water module 10.5 Boiler managementp.56
B Temperature probe domestic hot water 10.5 Boiler managementp.56
C Boiler 10.5 Boiler managementp.56
D 3-way DHW valve 10.5 Boiler managementp.56
E 3-way valve 10.5 Boiler managementp.56
F 1° setpoint control 10.5 Boiler managementp.56
G 2° setpoint control (2 setpoint>1 setpoint) 10.5 Boiler managementp.56
H
BUS connection
H+H1 = 100mt max
10.5 Boiler managementp.56
I ON/OFF 6.7 SA1 = On-O / Standby remotep.21
L summer/winter 6.8 SA2 = Summer - Winter remotep.22
M Second set point [Ref]p.
N Remote control [Ref]p.
O Boiler control 6.6 Connections performer by customerp.20
P Remote alarm signal 6.6 Connections performer by customerp.20
Q Bypass 10.5 Boiler managementp.56
R Power supply
ST-safety probe Provided by the customer
Weight and dimensions 13 Dimensional drawingsp.64
