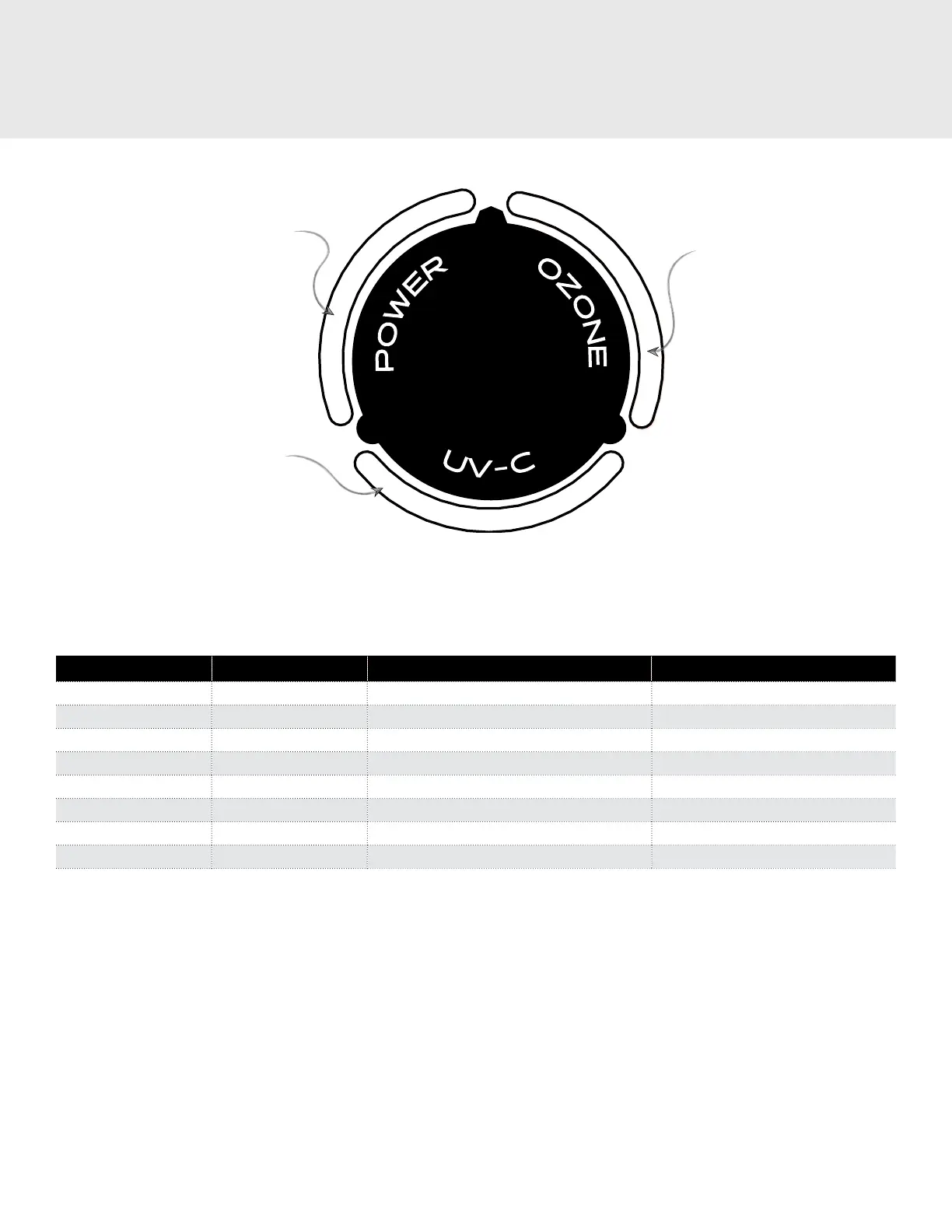

Figure 8: LED Indications at Normal Operation
3C. SMART STATUS INDICATORS
The DEL AOP has indicator lights to indicate its working condition. The lights should display the correct colors after the pump
has reached steady ow (see chart on page 5). During normal operation, refer to the chart below for status information.
STATUS
POWER INDICATOR UV-C INDICATOR OZONE INDICATOR
REGULAR OPERATION GREEN PURPLE BLUE
OZONE SERVICE DUE GREEN PURPLE YELLOW
UV-C SERVICE DUE GREEN YELLOW BLUE
OZONE ERROR/FAULT RED PURPLE RED
UV-C ERROR/FAULT RED RED BLUE
OZONE SERVICE OVERDUE YELLOW PURPLE BLINKING RED
UV-C SERVICE OVERDUE YELLOW BLINKING RED BLUE
SYSTEM ERROR/FAULT RED RED RED
For more detailed status information refer to Trouble Shooting Section (SECTION 5).
3D. SYSTEM SHUT
-
DOWN
The following sequence of steps must be followed for servicing or for storage.
1. Shut o power at the breaker.
2. Shut o water to the unit.
3. OPERATION
