SECTION 4 Maintenance & Service

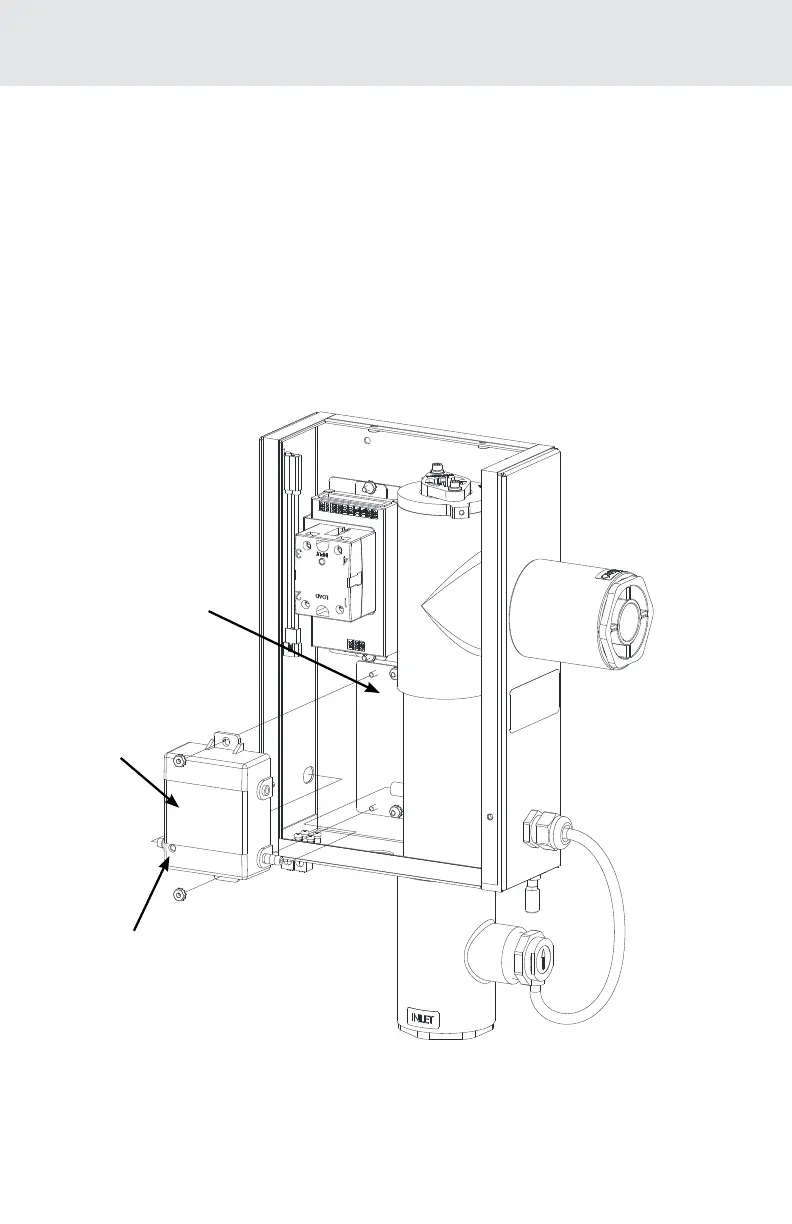

Figure 5: Ozone Module Replacement
3. Loosen the two nuts on the ozone module backplate.
4. Remove the two nuts securing the ozone module to the
backplate.
5. Slide the ozone module and loosened backplate right to free
the ozone module from the enclosure.
6. Disconnect ozone supply tubing from ozone output barb
(observe Warning in Section 4B-4).
7. Install the new ozone module by reversing the steps.
Ozone
Module
Ozone Module
Indicator Light
Backplate
