CMP POWERclean ULTRA - Feeder Safety and Installation Details; Chemical Compatibility and Usage; General Safety Precautions; System Compatibility Warning

BROMINE MAY BE SUBSTITUTED FOR
TRICHLOR IN THIS FEEDER. DO NOT
MIX.
CAUTION: Do not install feeder into
copper plumbing. Pipe damage may
occur. Never install feeder before the
heater. Heater damage may occur.

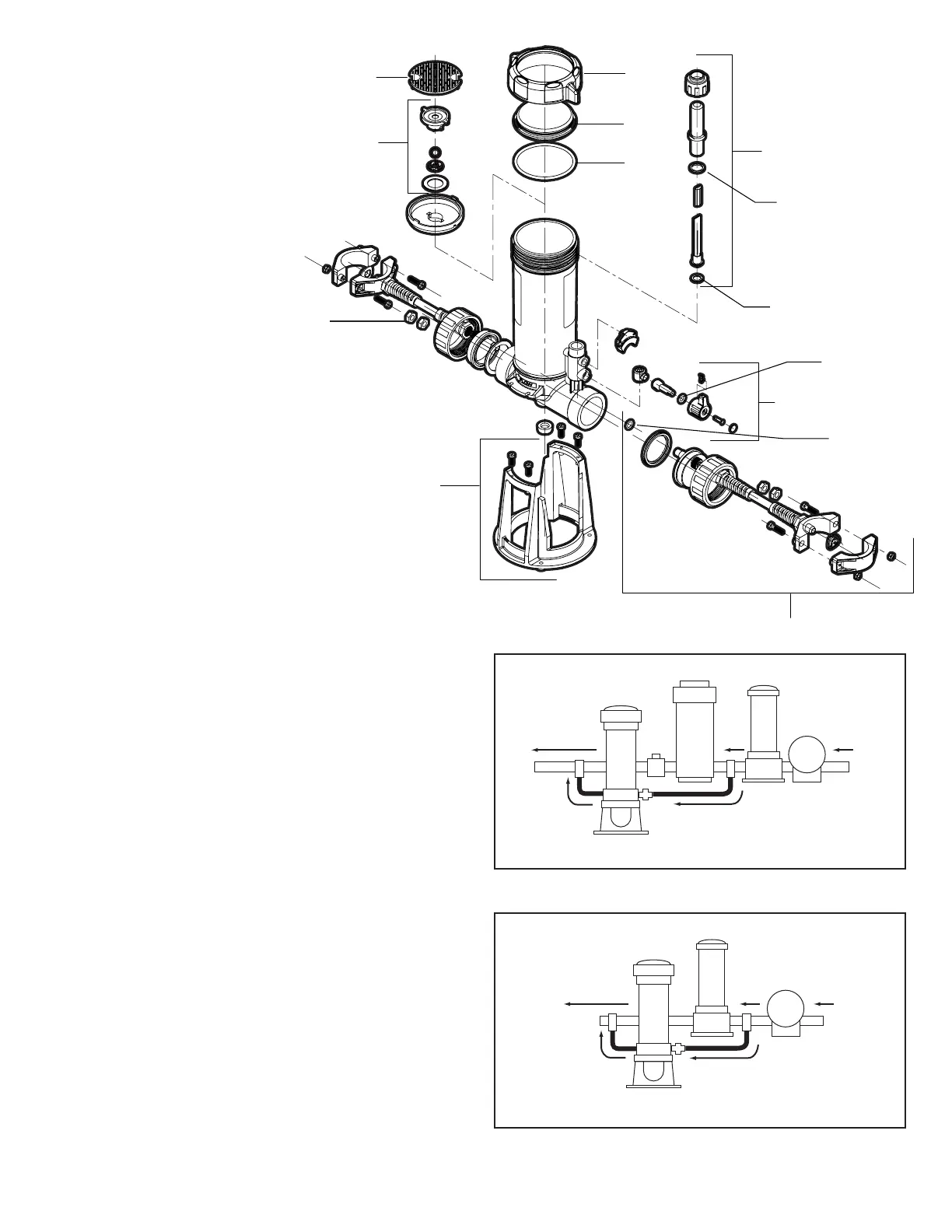

1 25280-100-005 Grate
2 25280-000-920 Check Valve Assembly
3 25280-300-970 Base Assembly
4 25280-100-950 Flow Meter Assembly
5 25280-100-930 Dial Assembly
6 25280-300-980 Clamp Assembly
6a 25280-300-006 Compression Nut
7 25280-100-001 Nut, Cover
8 25280-109-002 Cover (Clear)
25280-100-002 Cover (White)
9 26101-060-529 O-Ring, Cover
10 26203-021-250 O-Ring, Upper Flow Meter
11 26202-115-020 O-Ring, Lower Flow Meter
12 26100-100-330 O-Ring, Dial
13 26101-230-262 O-Ring, Inlet/Outlet
FEEDER
HEATER
FILTER
PUMP
RETURN
TO POOL
OUTLET
INLET
FROM
POOL
CHECK
VALV E
FEEDER
FILTER
PUMP
RETURN
TO POOL
OUTLET
INLET
FROM
POOL
INSTALLATION WITH HEATER
INSTALLATION WITHOUT HEATER
SAFETY CAUTION
Most pool plumbing is not airtight. The mixture of air and
chlorine is highly corrosive to metals. This is not a concern when
the circulating system is running, however it is important to protect
these items from corrosion when the system is turned off.
Even without a chemical feeder metal corrosion or erosion can still
occur. This could be due to excessively high water velocity, water
pH less than 7.2, or a total water alkalinity less than 100 PPM.
If your pool or spa has any of the following special equipment,
special procedures must be followed for safe operation with
the feeder:
- Brass or bronze gate, rotary, or backwash valves
- Plastic gate, rotary, or backwash valves with metallic shafts
- Filters, heaters, heat exchanges or other items with metallic parts
- DO NOT USE WITH COPPER PLUMBING
Installation of the optional check valve (shown to the right) will
prevent the backflow of corrosive liquids and gases that can
damage equipment containing metallic parts.
WARNING: If your pool has a permanent built-in cleaning system,
damage could occur to that system if materials are not compatible
with low pH Tri-Chlor feeders. Check with the cleaner manufacturer
for compatibility.
1
2
3
6
4
5
7
8
9
10
11
12
13
6a
