Coastal Source CRS700/4 - Page 6

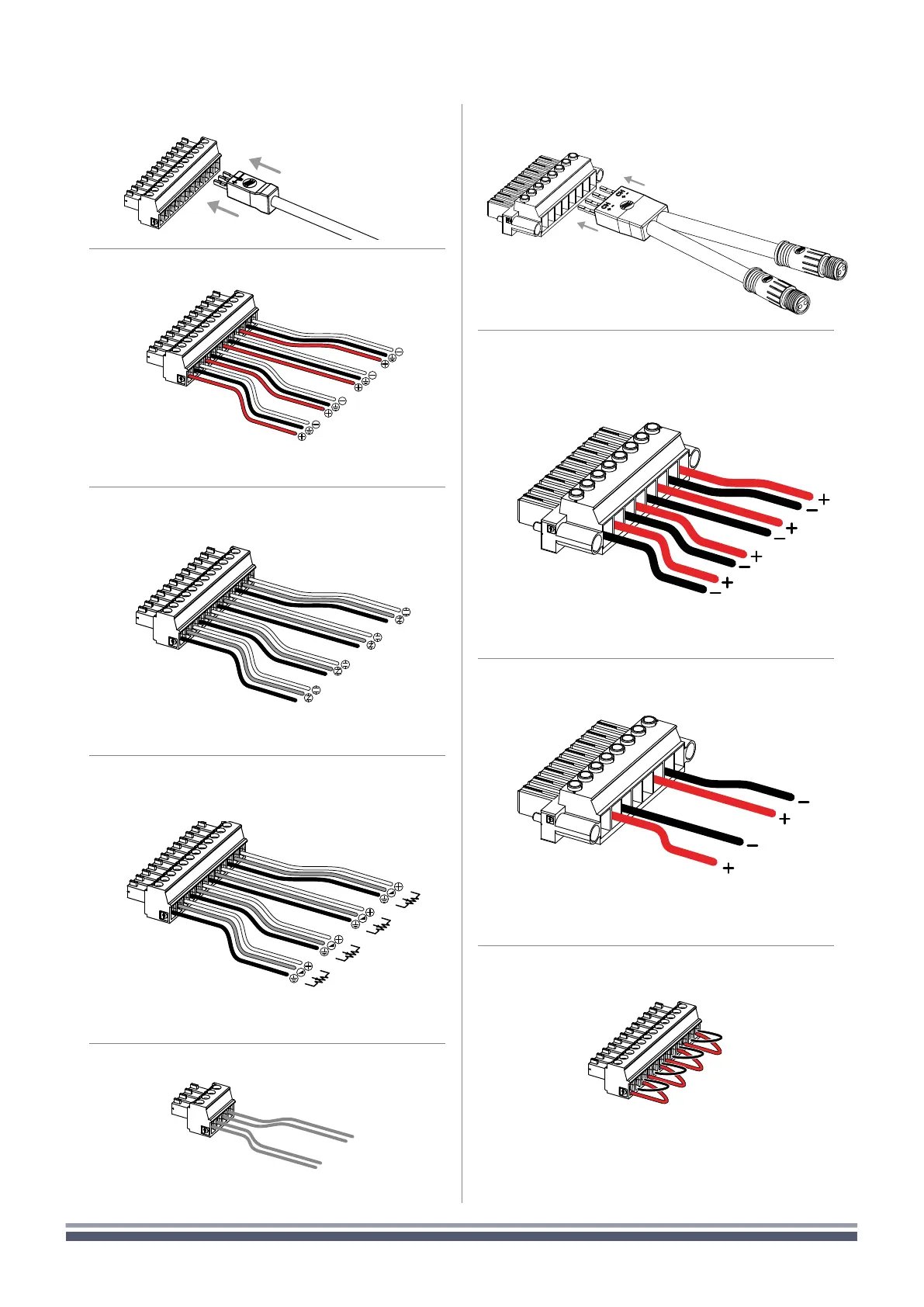

OUTPUT | CRS ADAPTER CABLES
(sold separately)
E
F
G
H
I
J
K
L
INPUT | BARE WIRE
OUTPUT | Bare wire (single ended)
Phoenix MC 1,5/12-ST-3,81 1803675
GPO/ALARM
REMOTE ON | REMOTE OFF
REMOTE LEVEL
Phoenix PC 5/ 8-STF1-7,62 1777891
INPUT (Analog Inputs not in use)
Phoenix MC 1,5/12-ST-3,81 1803675
Phoenix MC 1,5/4-ST-3,81 1803594
OUTPUT | Bare wire (bridged)
INPUT | CRS ADAPTER CABLES
WARNING: Bridging the amplifier could cause permanent
speaker damage. Please contact us before bridging.
M
6 | Component Rack System
Phoenix MC 1,5/12-ST-3,81 1803675
Ch 4
Ch 3
Ch 2
Ch 1
(or Master)
Ch 4
Ch 3
Ch 2
Ch 1
Ch 1
Ch 2
Ch 3
Ch 4
common
common
common
common
Ch 4
Ch 3
Ch 2
Ch 1
