1.5 Specifications
Electro-hydraulic tire changer for tubeless truck tires.
Weight with Standard Acc. 2079 lbs. (945 kg)
Electric Specifications 220VAC, 3Ph, 60Hz, 22A
Hydraulic Motor Power 2 HP (1.5 kW)
Chuck rotation Motor Power 3-4 HP (2.2 - 3 kW)
Chuck Capacity 14” - 56”
Max. Tire Diameter 90 1/2 inches (2300 mm)
Max. Tire Width 43 inches (1100 mm)
Max. Chuck Torque 2268 ft./lbs. (3100 mm)
Clamping Power 13,513 lbs. (60 kN)
Chuck Rotation Speed 4 - 8 rpm
Acoustic Pressure <70dBA

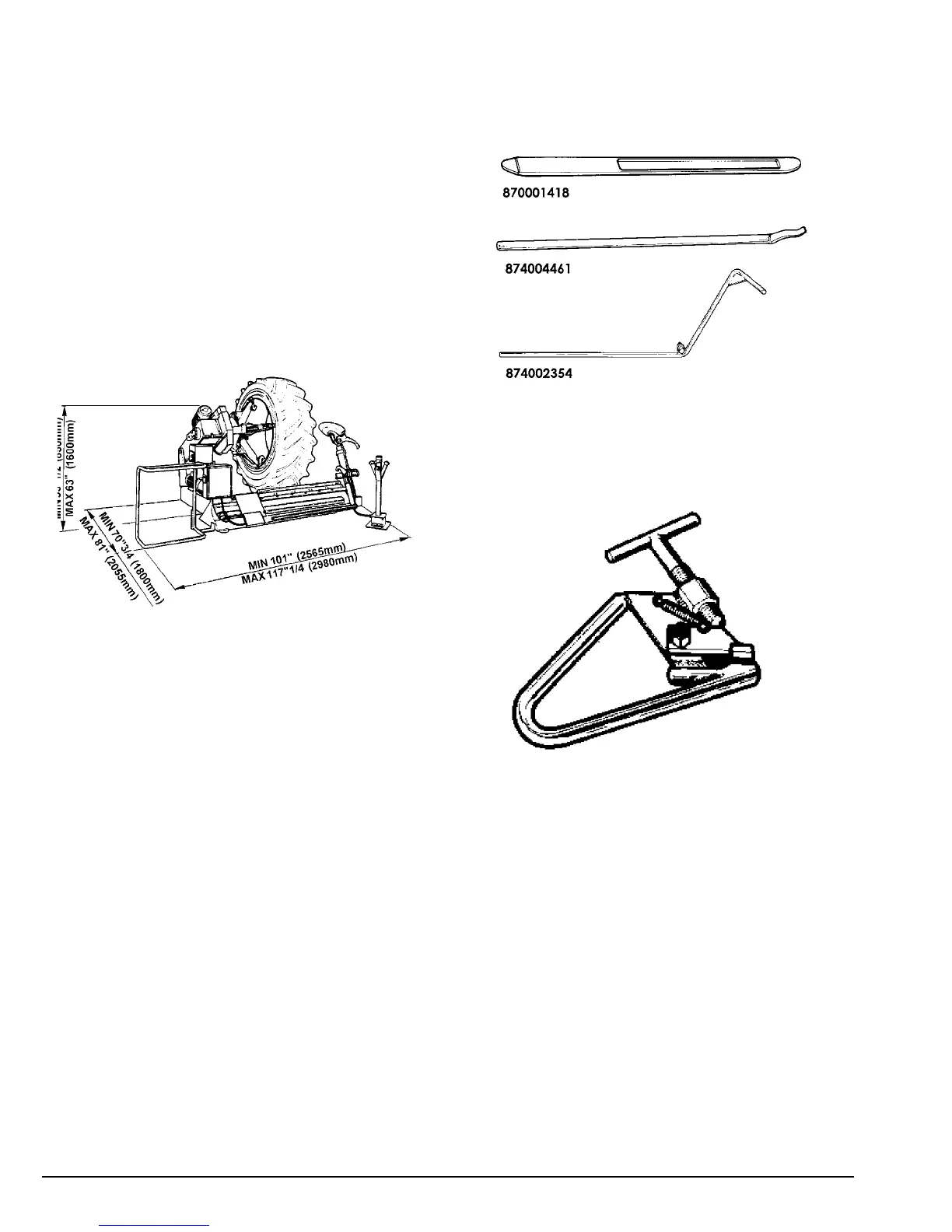

1.6 Dimensions Of The Machine
Fig.2
1.7 Standard Accessories
#870001418 Short Tire Tool
#874004461 Long Tire Tool
#874002354 Bead Pushing Lever
Fig.3
#874009472 Mounting Clamp (fig.4).
To hold the bead when mounting tires on steel rims.
Instructions for use is in section 5.3.
Fig.4
2 • COATS 9500 Tire Changer
