Chapter 1: Introduction
4 System configuration – examples
1.3 System configuration – examples
The SAILOR 6081 Power Supply Unit and Charger is designed to be used in
installations that need a stable and powerful power supply with battery

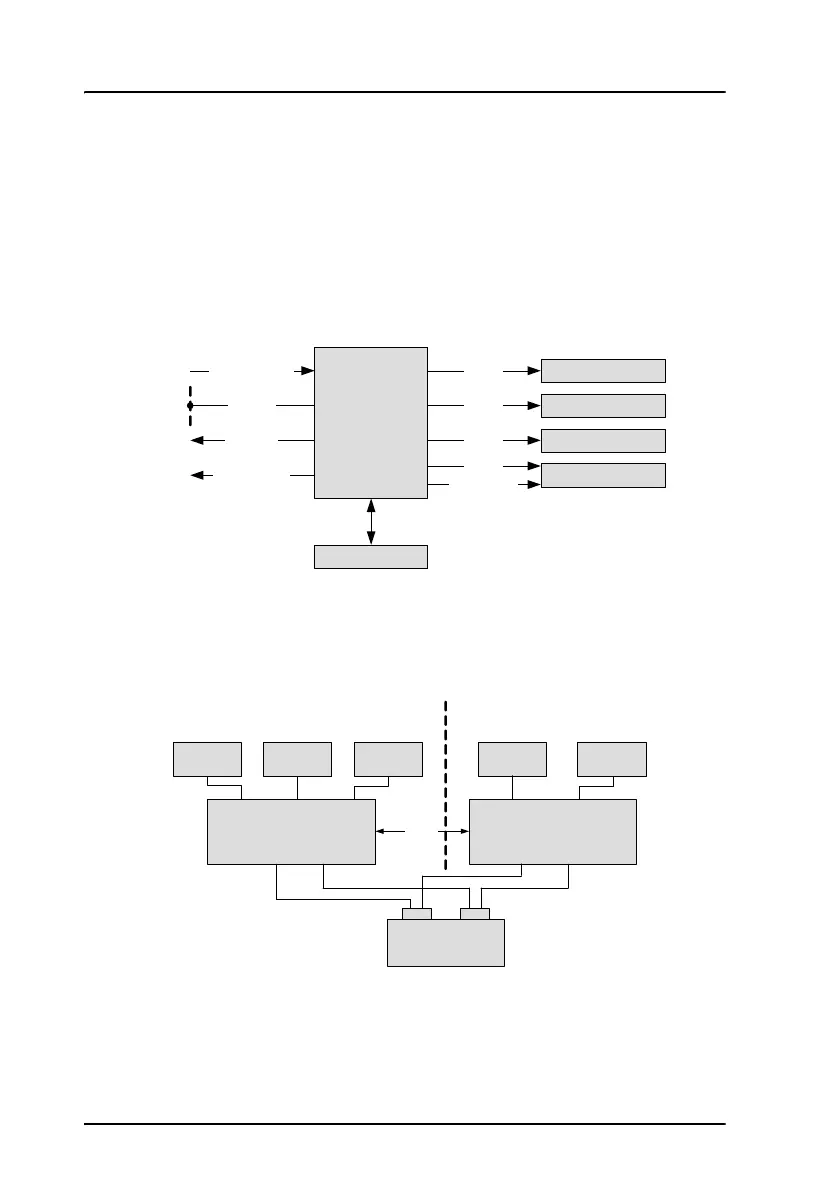

charger. The drawing below shows a setup in which the SAILOR 6081 Power
Supply Unit and Charger generates the DC supply in a GMDSS system.
The drawing below shows an example how this power supply fits into an
installation with two segments, which is a GMDSS requirement. Each
segment has its own power supply, but often the two segments share the
battery.
SAILOR 6081
Power Supply
Unit and Charger
100V-240V AC DC out MF/HF Radio
Battery
Battery
voltage alarm
AC alarm
DC out VHF Radio
DC out Emergency light
15 V DC out
Inmarsat C system
Ethernet
GMDSS application example
DC out
SAILOR 6081
Power Supply Unit and
Charger
SAILOR 6081
Power Supply Unit and
Charger
MF/HF
radio
VHF
radio
Inmarsat C
system
VHF
radio
Inmarsat C
System
Battery
+ -
+- +-
Cross
link
Segment 1 (primary) Segment 2 (duplicated)
