Location
32
Mounting and
Connection
Mounting and Connection

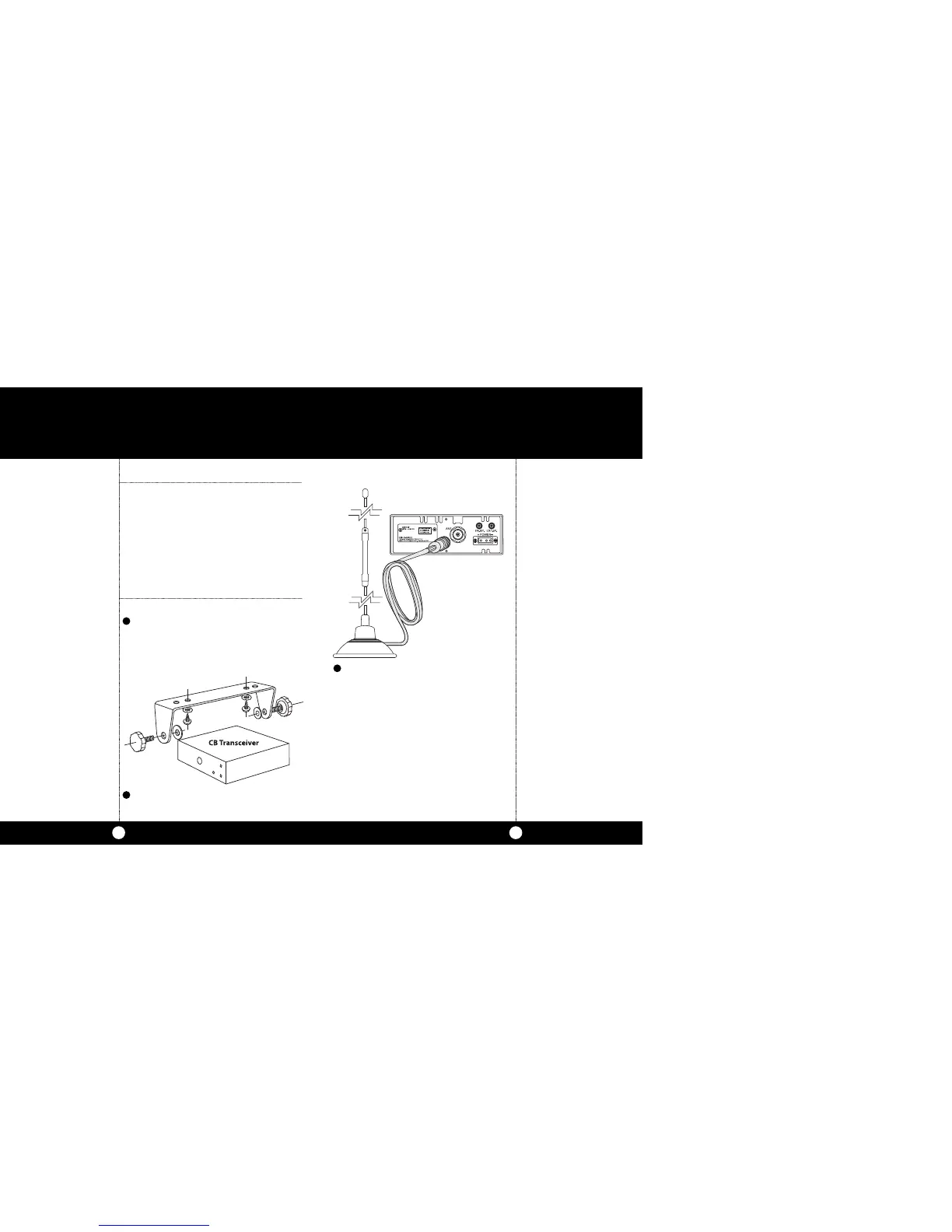

Hold the radio with the mounting bracket in
the exact desired location. If there is no
interference, remove the bracket and use it as
a template to mark the location for the
mounting screws.
Location
Plan location of transceiver and microphone
bracket before starting the installation.
Select a location that is convenient for operation,
yet does not interfere with the driver or passenger.
The transceiver is usually mounted to the
underside of the dash with the microphone
bracket beside it.
Note
The transceiver is held in
the universal mounting bracket
by two thumbscrews which
allow for adjustment at a
convenient angle.
The bracket includes two
self-tapping screws and star
washers.The mounting must be
mechanically strong,
conveniently located.
continued
Drill the holes and secure the bracket.
2
1
Connect the antenna cable plug to the
receptacle marked “ANT” on the back of
the unit.
3
To Next Page
