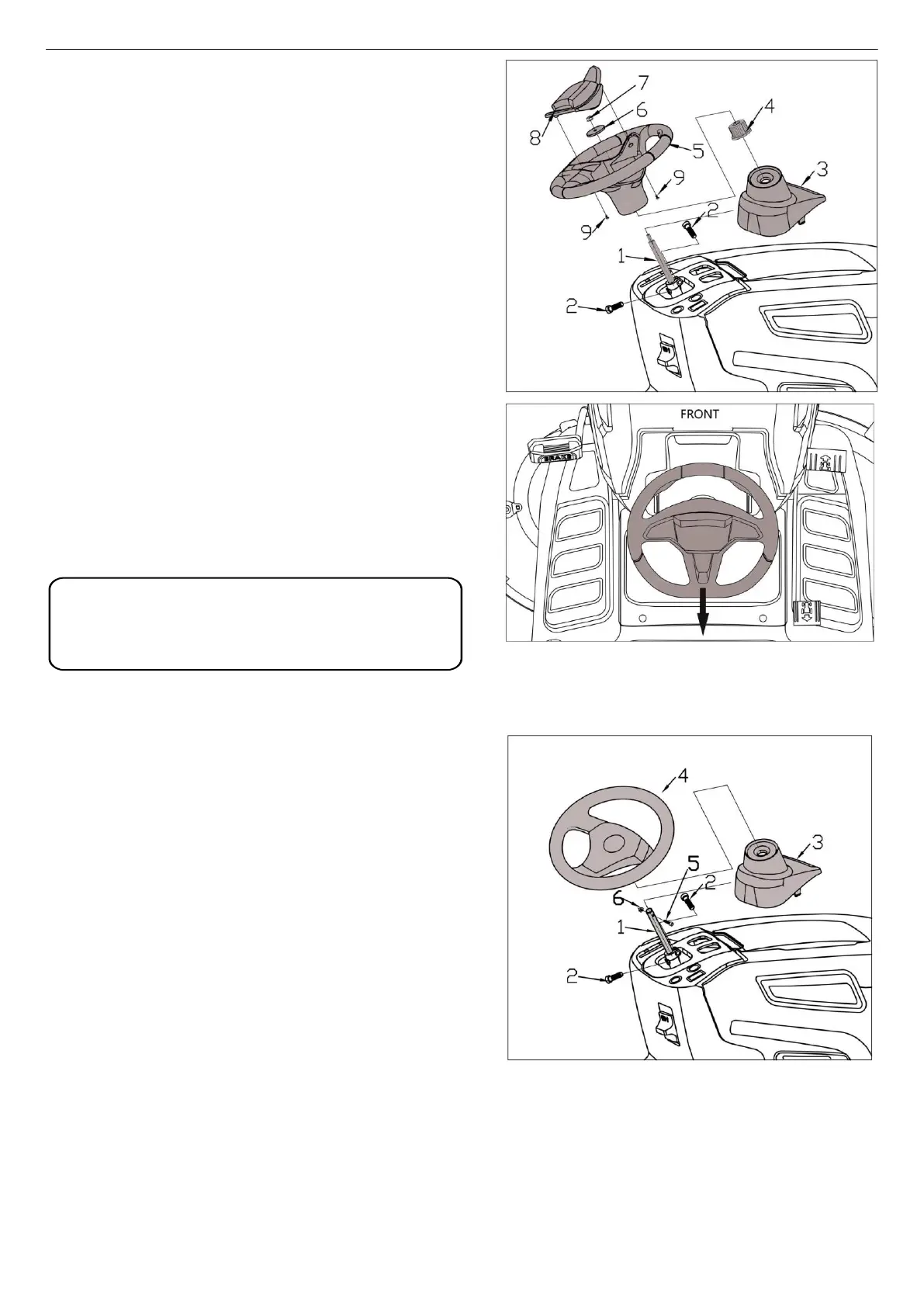

3.2 FITTING THE STEERING WHEEL
Only for LT108MSL (TTM108S) Manual Transmission
Put the machine on a flat surface and straighten up the
front wheels.
a. Fit the shaft (1) onto the couplings and tightening the
screw M8x25 (2).
(Use the hex wrench 5 in accessories tools.)
b. Fit the steering shaft cover (3).
C. Fit the steering wheel 4 onto the steering shaft ,
insert screw (5) and tighten it by nut (6).
Put the machine on a flat surface and straighten up
the front wheels.
a. Fit the shaft (1) onto the couplings and tightening the
screw M8x25 (2). (Use the hex wrench 5 in accessories
tools.)
b. Fit the steering shaft cover (3).
c. Inset the splined hub (4) to shaft (1), mounting
steering wheel (5), spacer (6) and tightening nut M8
(7).(Use the open end wrench 13-15 in accessories
tools.)
d. Inset the steering wheel cover (8) into steering wheel
and tightening two screws (9). (Use the cross
screwdriver in the accessories tools.)
NOTE
Pay attention to the direction when mounting the
steering wheel .
