By the accepted definition of CNS toxicity, should a PO2 value of greater than 1.6 ATA
be measured, the CNS Toxicity will be 100%. During the Surface Interval, this
percentage will decrease as the CNS declines toward zero. Once this has dropped
below 50%, the MAX DEPTH reading will return. Whatever the current CNS Toxicity
level, it can also be viewed in the Programming Mode.
METRIC
NDC
BOTTOM
TEMP
REMAIN TIME
DEPTH
.

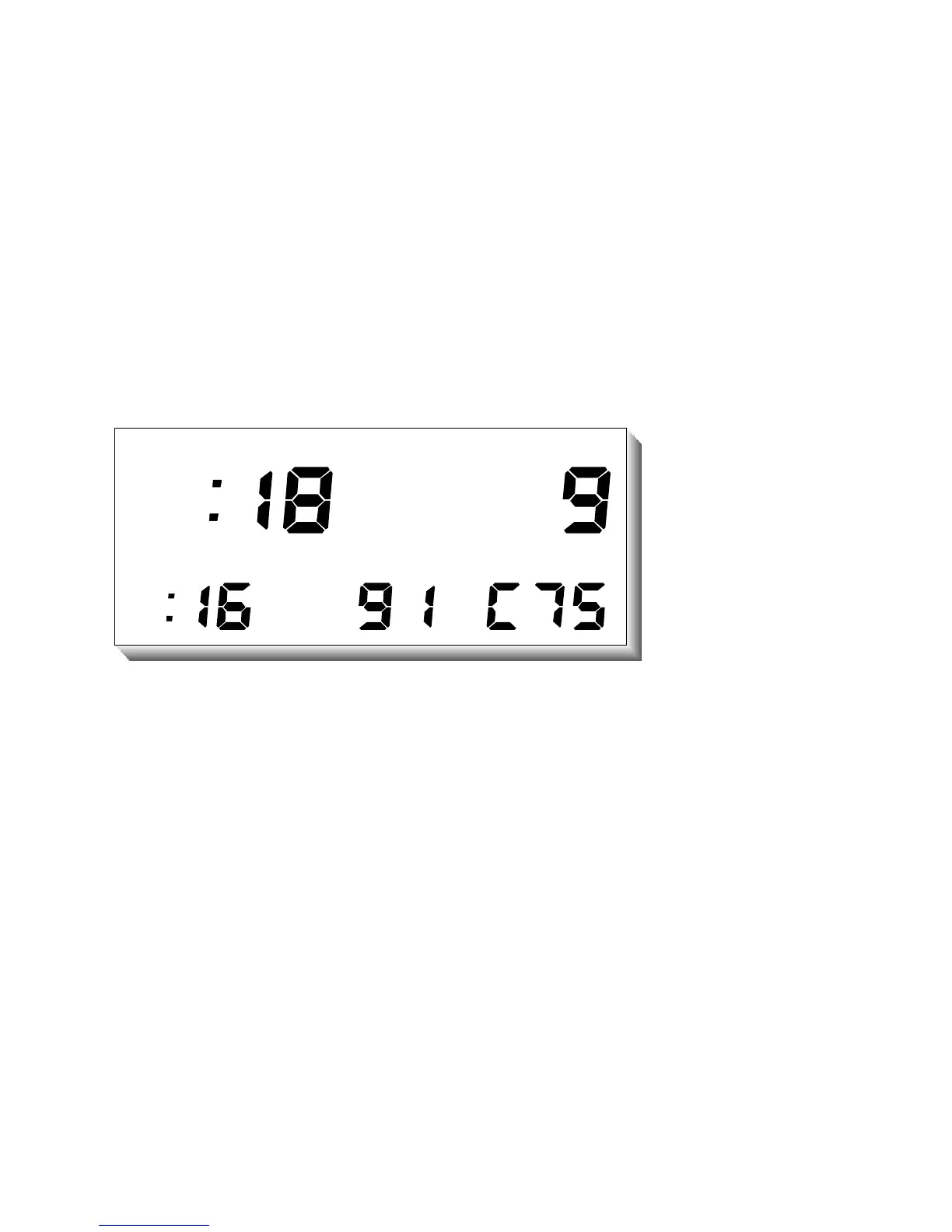

Figure15
SU BSUR FA C E M O D E D ISPLA Y
(MaxCNSAlarm)
CurrentC NS 75 %
Rem ainNDC Time 18 min
B o tto m Time 16 mins
Te m p e rature 9 c
AscentRate 0
Ba tte ry O K
16
OXYGEN TOLERANCE UNITS (OTU): An issue with long term breathing of higher
partial pressures of Oxygen above 0.5 ATA is Pulmonary Oxygen Toxicity or sometimes
called WHOLE BODY which must be tracked properly.
The COMMANDER+ will track the OTU based on Dr. Bill Hamilton’s ‘REPEX’ method of
