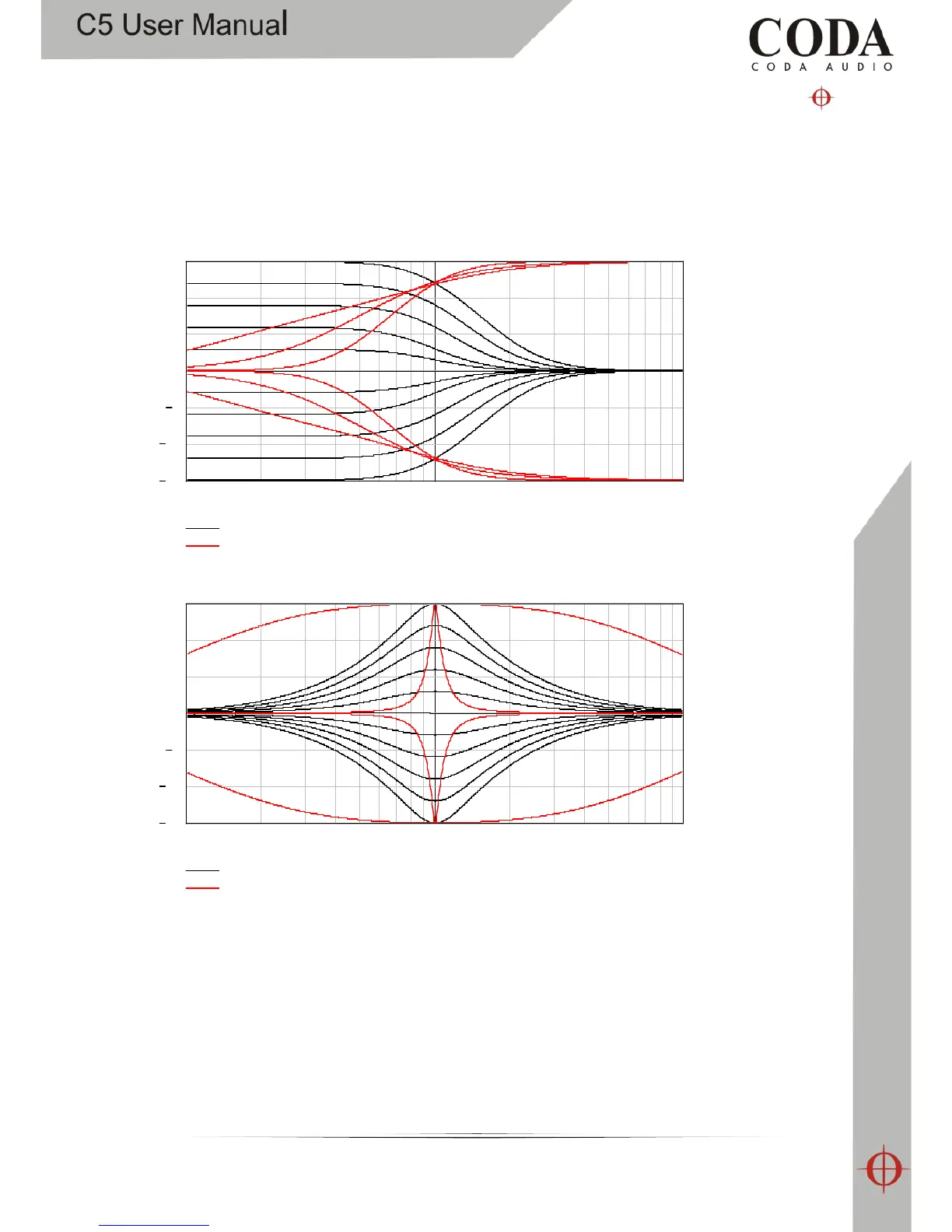

The following plots show the magnitude response (frequency response) characteristics of
the various equalization filters available within the C5. These are all shown at a c
frequency of 1kHz.
100 1
.
10
3
1
.
10
4
15
10
5
0
5
10
15
Low shelf, varying Gain
High shelf, varying Slope
Shelving EQ
Frequency, Hz
Magnitude, dB
100 1
.
10
3
1
.
10
4
15
10
5
0
5
10
15
Varying Gain
Varying Bandwidth
Parametric EQ
Frequency, Hz
Magnitude, dB
