14
4. 3 PIN HARNESS
Negative Lock Output (GREEN)
Negative Unlock Output (BLUE)
Negative Second Door Unlock Output (BLUE/GREEN)

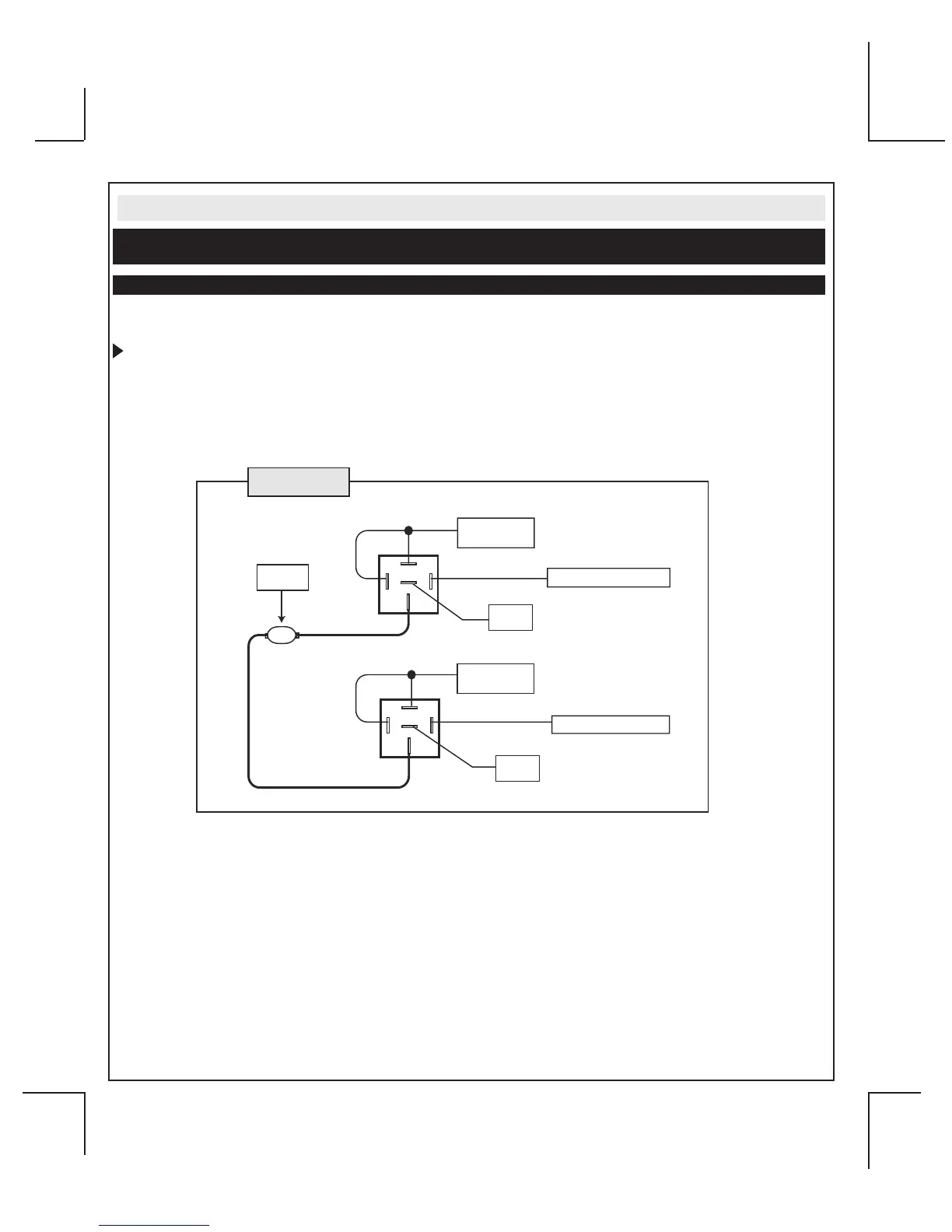

Adding Door Actuators
After installing door actuators, (not supplied). Connect the GREEN and BLUE wires shown in diagram 16
below using (2) SPDT relays (not supplied).
30
87
87a
86
85
Fused +12 Volt
Battery Source
Door Lock
Actuator
30
87
87a
86
85
Chassis
Ground
Chassis
Ground
GREEN (-) Lock Output
BLUE (-) Unlock Output
Fused +12 Volt
Battery Source
M
Diagram 16
