5
AUX 1 (-) 300mA Output (VIOLET/BLACK)
Trunk Release Output (-) 300mA Output (RED/WHITE)
This wire provides a 300mA negative output for activation of the vehicle's trunk release or for driving relays
for control of optional accessories (i.e Power Window/Sunroof,etc.).

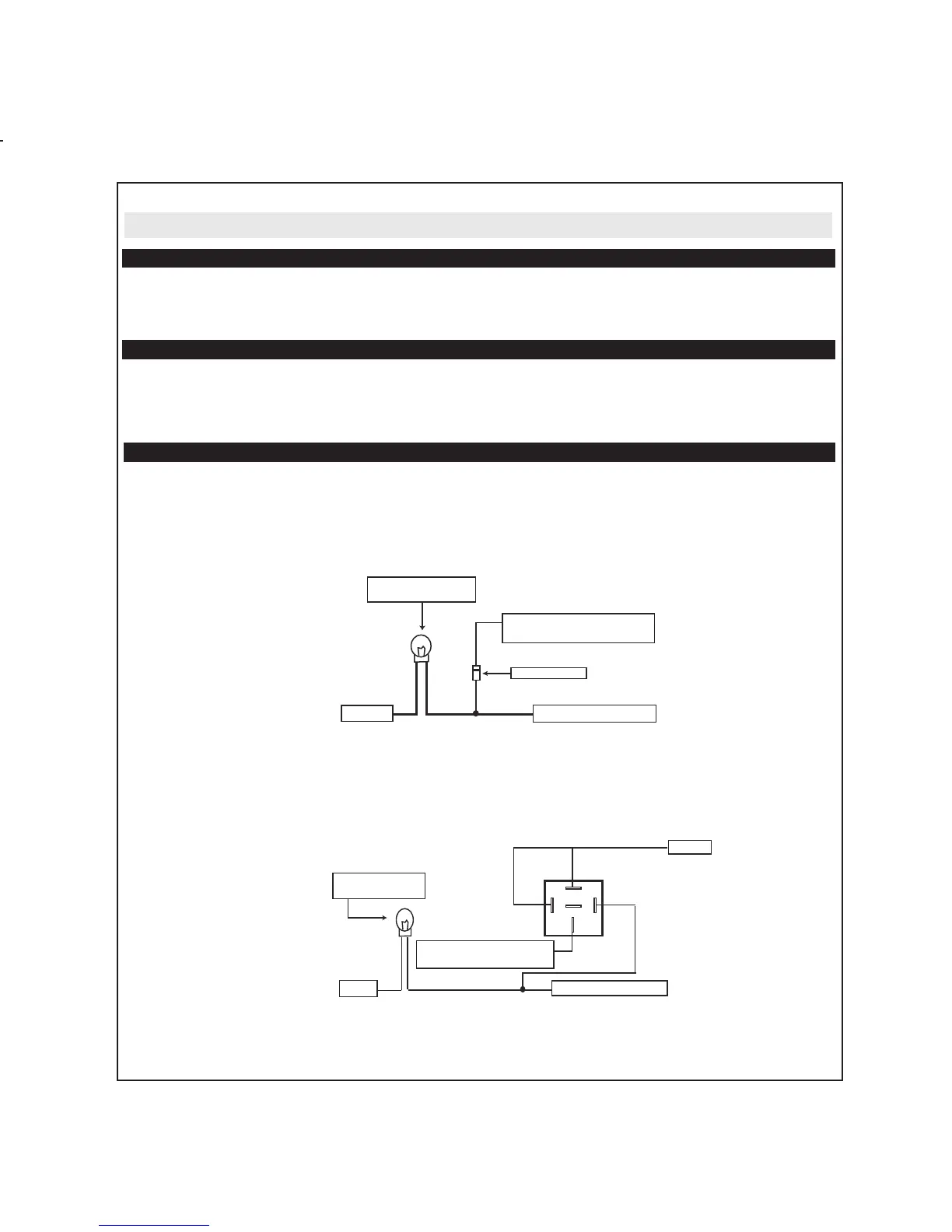

Wait-To-Start Input (+) (GRAY/BLACK)
Locate the Diesel Wait-To-Start light wire at the instrument panel.
Verification: This wire registers positive or negative voltage when the wait-to-start light illuminates.
2. 18 PIN HARNESS, CONTINUED
This wire provides a 300mA negative output capable of driving relays or for control of optional accessories
(i.e Power Window/Sunroof,etc.).
GRAY/BLACK (+) Diesel
Wait-To-Start Wire
Vehicle Control Module
Ground
Wait-To-Start Bulb
At Instrument Panel
1N4004 Diode
30
87
87a
86
85
Vehicle Control Module
Ignition
Ignition
Wait-To-Start Bulb
At Instrument Panel
GRAY/BLACK (+) Diesel
Wait-To-Start Wire
For POSITIVE switching circuits
For NEGATIVE switching circuits Use a SPDT relay (not supplied).
To Next Page
