14 Connect the cables, storing any excess cable within the
door. Screw end cap onto cable tube. Then install the
batteries.
15 Fit the back plate over the fixing plate using the 4 socket
head screws.
16 Fit the cylinder cover and outside handle to the front plate.
17 Fit the inside handle to the back plate.
18 The inside handle will now retract the latchbolt. The
outside handle will turn freely without retracting the latch.
Enter the factory Master Code #1234. The Blue LED will
flash and the outside handle will now retract the latch.
19 FITTING THE STRIKE PLATE
Position the strike plate on the doorframe so that the
aperture lines up with the flat of the latchbolt, and NOT the
plunger. Mark the positions of the fixing screws and draw
around the aperture of the strike plate. Chisel out the
aperture to 15mm
(
1
/2”) deep to receive the latchbolt. Fix
the strike plate to the surface of the frame using only the
top fixing screw. Gently close the door and check that the
latchbolt enters the aperture easily, and is held without too
much ‘play’. When satisfied, draw around the outline of
the strike plate, remove it and cut a rebate to enable the
strikeplate to lie flush with the surface. Re-fix the strike
plate using both screws.
N.B. The plunger beside the latchbolt deadlocks it to
protect against manipulation or ‘shimming’. The strike
plate must be accurately installed so that the plunger
CANNOT enter the aperture when the door is closed, even
when it is slammed shut.

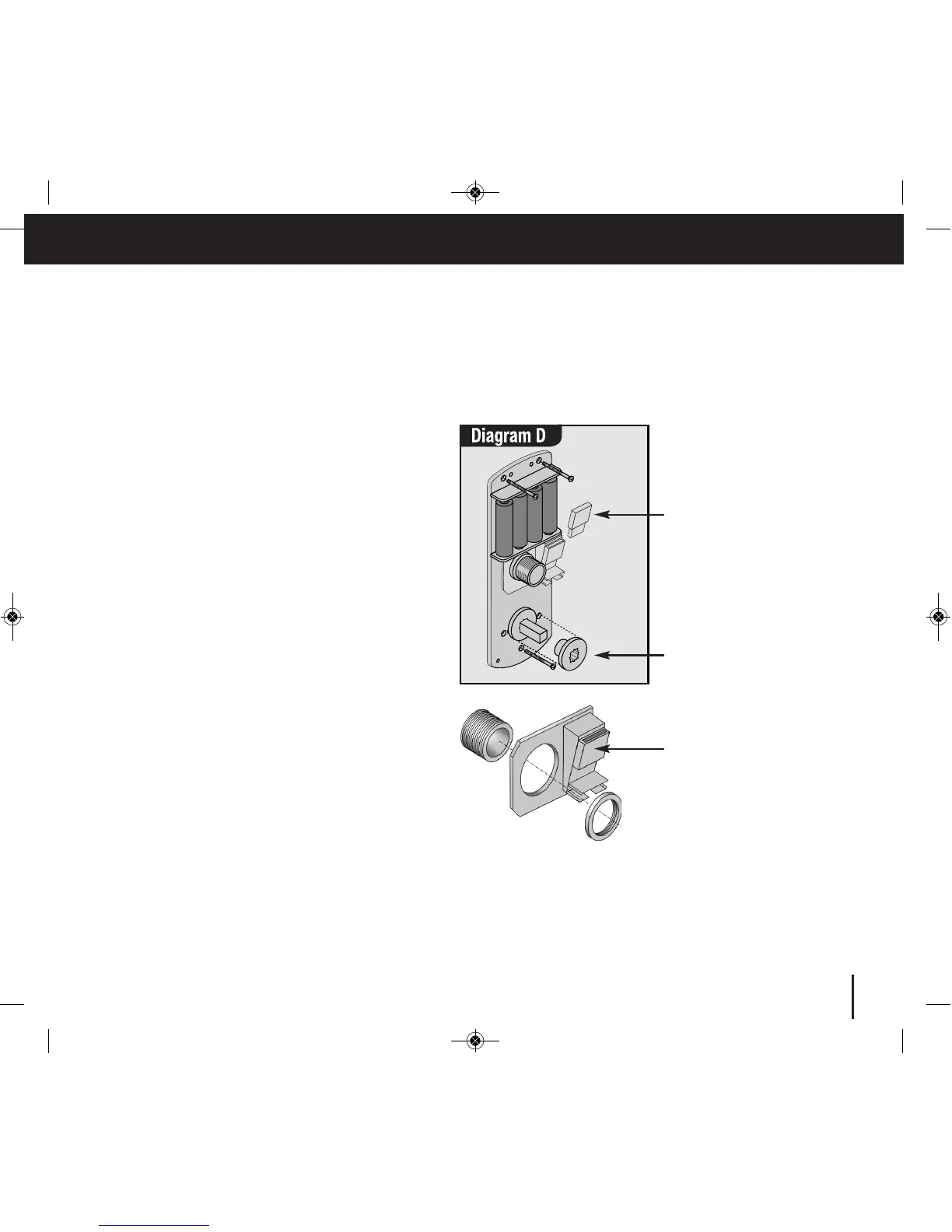

Alignment insert MUST
be removed before
completing installation.
