Cognex VisionView 900 - Power Connector Pinout

USB 2 Host USB 2.0 (480 Mb/sec.) ports
1
for saving images or DataMan configuration
files to a USB drive
2
and for basic HID support (mouse and keyboard
3
).
PS/2 1 PS/2 port
3
. Standard PS/2 keyboards are supported.
Power Consumption 0.5A @ 24VDC (VisionView has a TVSprotection on power-input).
Material ADC12 Aluminum housing
Mounting Panel. VESA-compatible (75mm) mounting using four M4 screws.
Dimensions 236.6mm (9.31in) x 146.0mm (5.75in) x 35.0mm (1.38in)
Weight 468g (16.5 oz.)
Temperature
Operating: 0°C to 50°C (32°F to 122°F)
Storage: -10°C to 60°C (14°F to 140°F)
Humidity 90%, non-condensing (Operating and Storage)
Protection IP65 when properly panel-mounted in an IP65 rated enclosure or panel.
Shock 30 G Shock per IEC 68-2-27.
Vibration 2 G from 10-2000 Hz. Vibration per IEC 68-2-6.
Regulatory Compliance CE, FCC, KCC, TÜV SÜD NRTL, RoHS

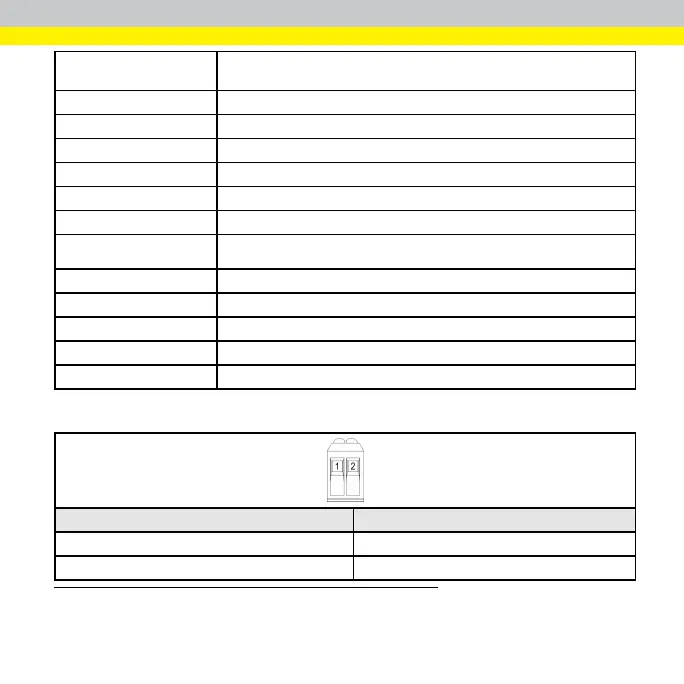

Power Connector Specifications
Pin # Signal Name
1 GROUND
2 +24 (±10%) VDC
1
Do not connectmore than one USBdrive at a time to VisionView.
2
USBdrivesshould be formatted with a FAT32 file system.
3
Mouse/Keyboard are not supported for runtime operation of the VisionView Operator Interface Panel.
9
