Diamond™ C-40 Air-Cooled Laser Preinstallation Manual
3 - 6
Electrical Power
Connection
The DIAMOND C-40 laser requires 48 VDC input DC power. This
power is carried from the power source to the system through the
terminal block on the DIAMOND C-40. The maximum current
required is 13 A (20 A peak for minimum of 1 ms).
The negative (return) side of the DC input connection to the
DIAMOND C-40 RF power module is connected internally to the
chassis. The user must assure that the system into which the
DIAMOND C-40 is built protects any personnel against the possi-
bility that the DIAMOND C-40 chassis could contain a hazardous
voltage and be exposed to these voltages.
Note: Pin #1 of RJ45 control interface is on the left as viewed.
NOTICE!
To avoid damage to the system, connect leads to the user-supplied power source last
after other connection are made.

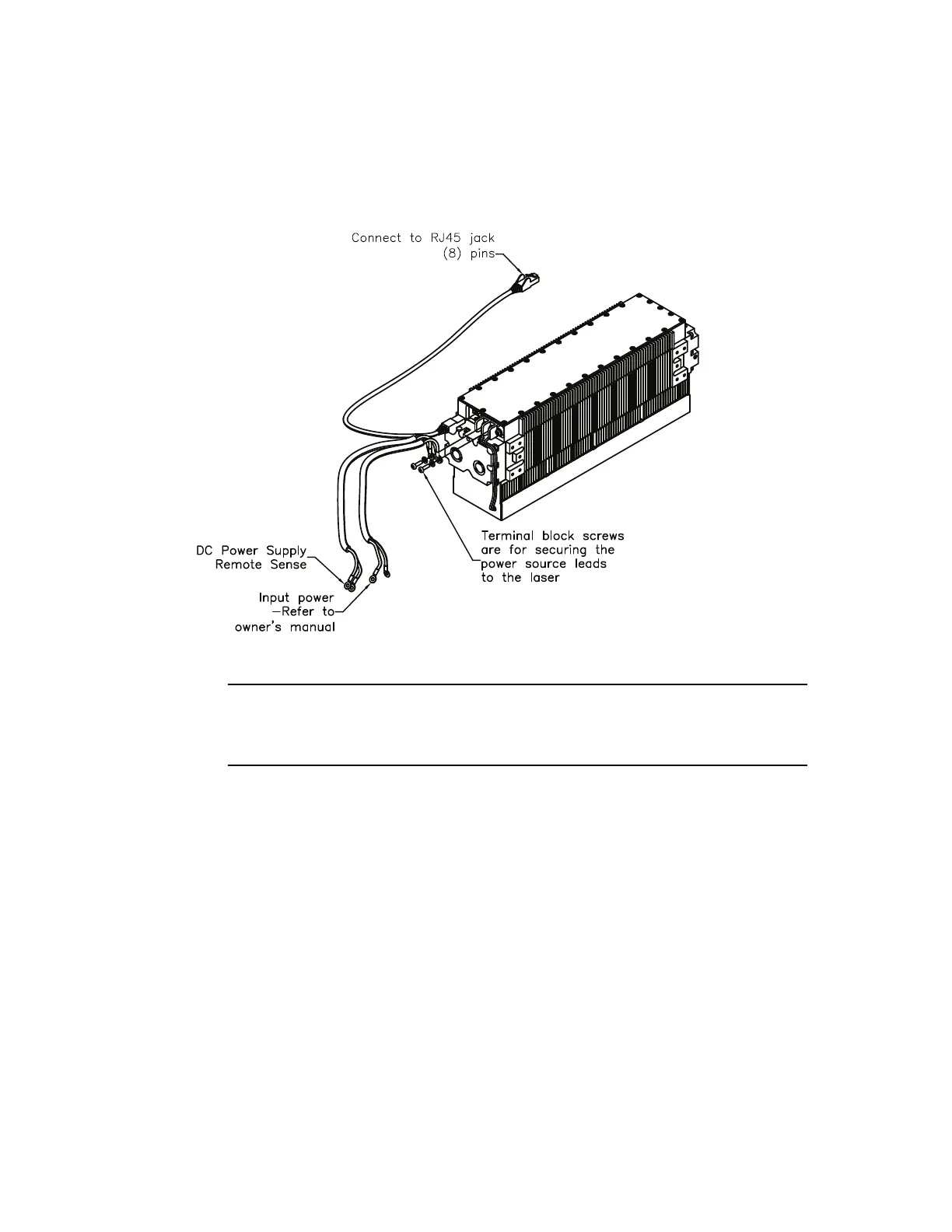

Figure 3-2. Electrical Connections to DIAMOND C-40
