5
TUBE LOADING (cont'd)
5. Adjust tubing retainer.
(Figure #4.)
Release the tubing retainer from its
locked position by pushing it slightly
into the body, then downward and
firmly against the tubing.
Repeat for both sides.
NOTE: Tubing retainers usually do
not need to be readjusted when
changing tubing of the same type
and size.
NOTE: There are a few combinations of tubing and materials that may require a
further adjustment of the tubing retainers if the tubing creeps. Open Pump Head,
move tubing retainer down one (1) notch, then close Pump Head. Turn pump on.
If tubing creep persists, repeat procedure.
MULTI-CHANNEL MOUNTING
L/S EASY-LOAD Pump Heads can be mounted in tandem (up to four) depending
upon the torque capabilities of the drive. (See Figure #5.)
Special mounting hardware is required.
See REPLACEMENT PARTS AND ACCESSORIES for mounting hardware.
CAUTION: DO NOT OVERTIGHTEN SCREWS OR WING NUTS.
NOTE: The L/S EASY-LOAD Pump Head can be used in any combination with
other L/S EASY-LOAD II Pump Heads. The longer L/S EASY-LOAD II mounting
hardware is required (not supplied).
NOTE: The tubing on the inside L/S EASY-LOAD Pump Head(s) can be changed
without dismantling the outside Pump Head(s) from the drive.

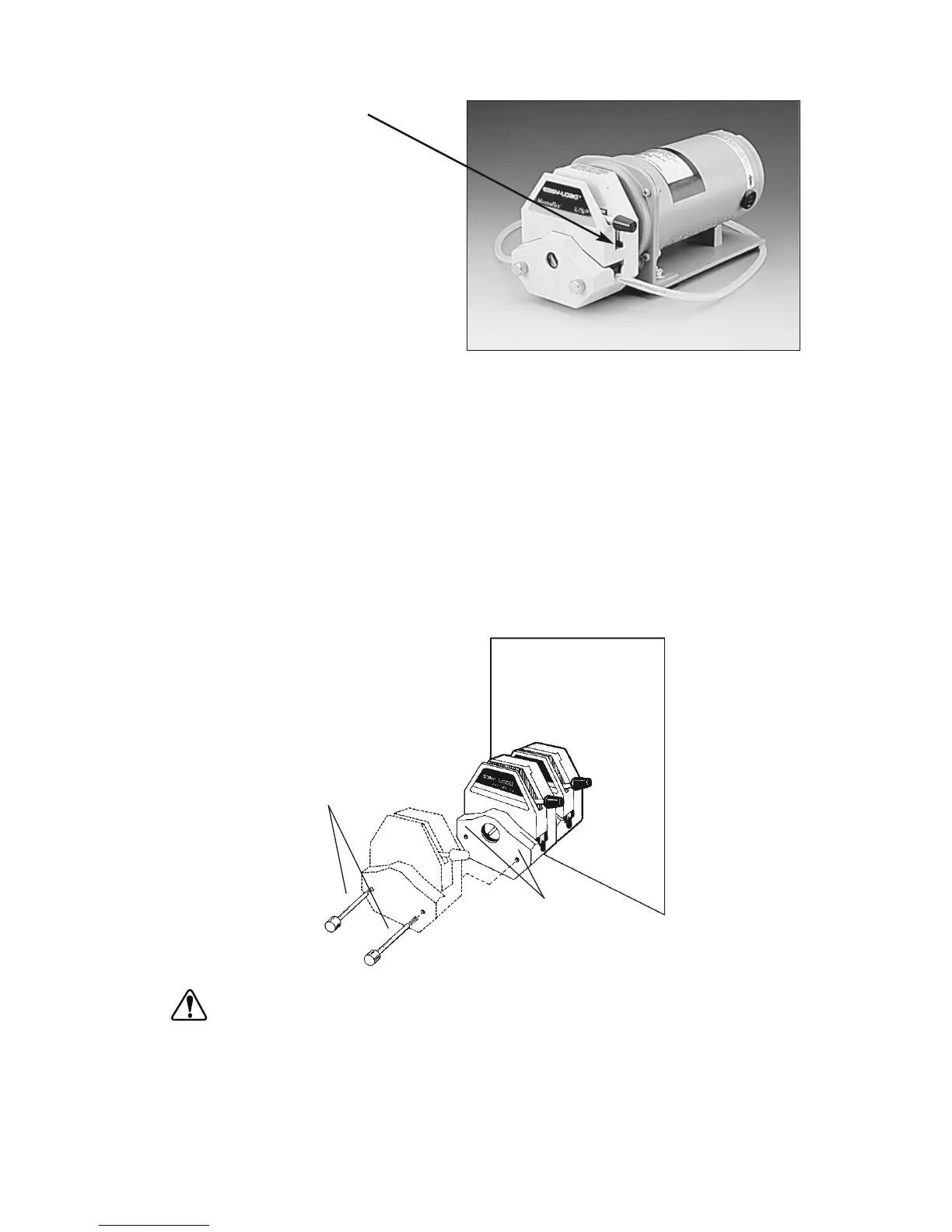

Figure #4. Retainer Adjustment
Figure #5. Multi-channel Mounting
Mounting Holes For
Tandem Units
Mounting Bolts
