MAINTENANCE
No lubrication is required for the L/S EASY-LOAD Pump Head.
See REPLACEMENT PARTS AND ACCESSORIES for parts ordering
information. Contact dealer for further repair information.
Cleaning
Use a mild detergent solution to clean the Pump Head.
Do not immerse, nor use excessive fluid.
Disassembling Pump Head
1. Remove Pump Head from drive.
2. Remove the two screws shown in Figure #6.

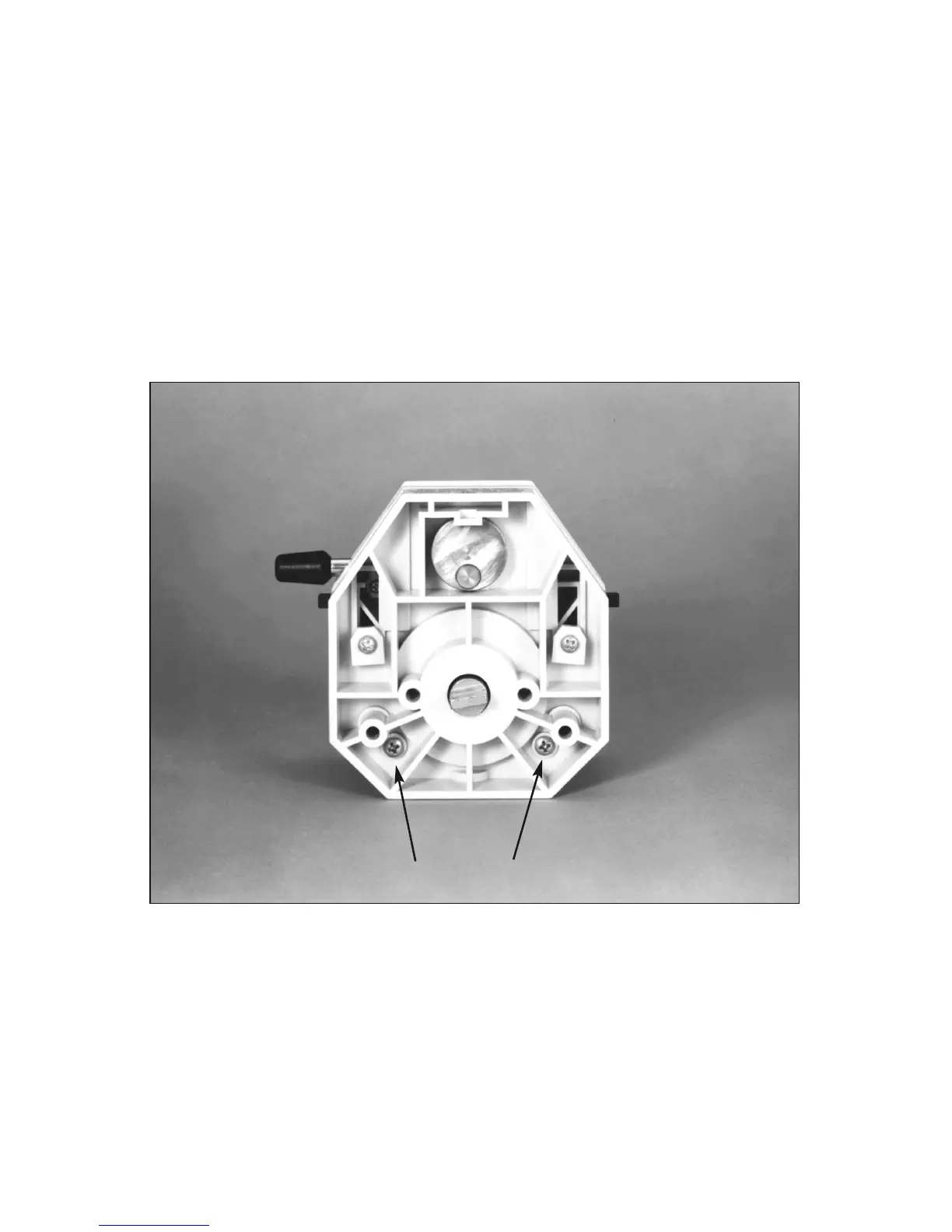

Figure #6. Disassembling Pump Head
3. Remove rotor/bearing support assembly.
4. Replace rotor/bearing support assembly and secure with two screws.
NOTE: Screws have a high/low dual thread. Be careful to engage the threads in
the housing properly.
6
Assembly Screws
