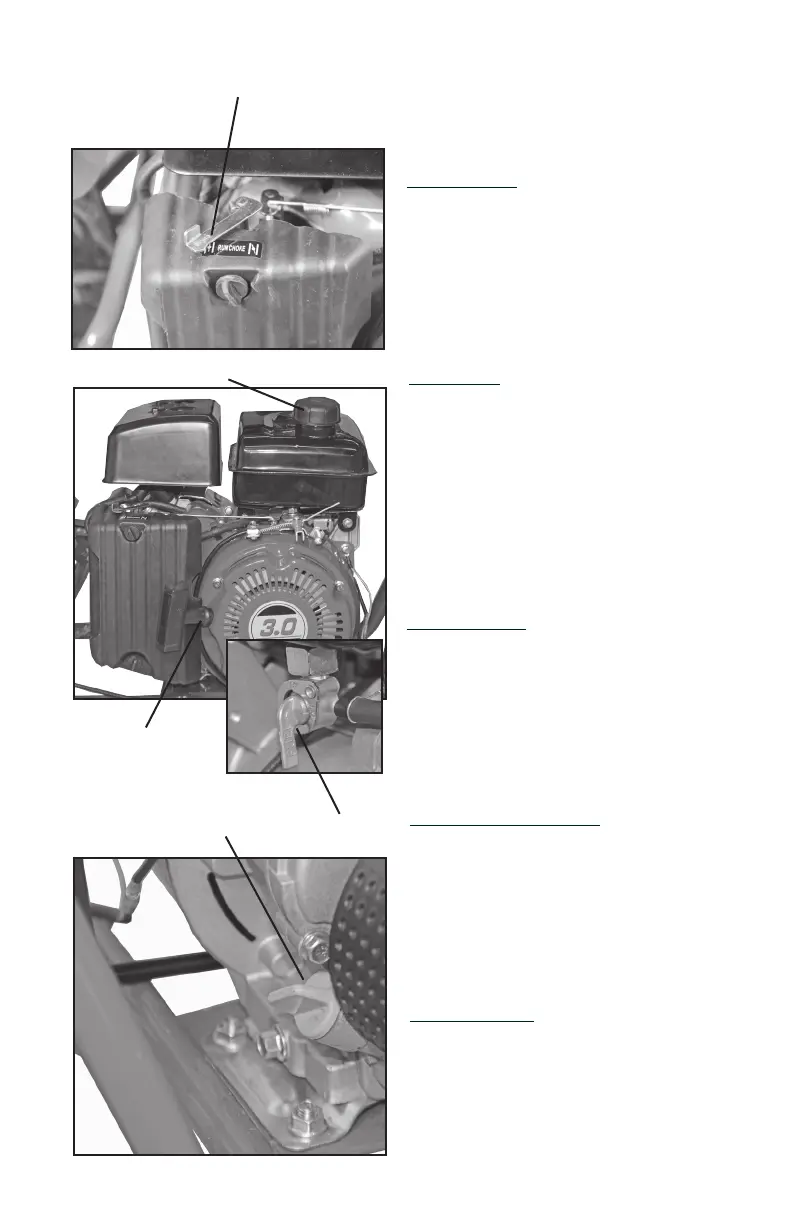

DESCRIPTION AND PART FUNCTIONS
Fuel Tank Cap
To open the fuel tank cap (3),
Turn the cap counter clockwise to
remove. To re-install the cap, turn
the cap clockwise until snug.
Fuel Valve operation
Fuel Cap
Fuel Valve (2): To start the engine
and run the mini bike, the fuel valve
needs to be placed in the “ON”
(vertical) position. This allows fuel
to ow to the carburetor.
When nished riding, and while
transporting, place fuel valve in the
“OFF” (horizontal) position.
Choke Lever (1): If the engine is cold,
the choke can help start the engine
by placing the choke lever to the “ON”
(right) position. Once engine has
warmed up , place choke lever back to
the “OFF” (left) position.
Choke operation
3
Oil Fill plug
Oil Fill Plug (5)
To check or add oil, open the oil
ll plug/dipstick by turning counter
clockwise. To tighten, turn clock-
wise.
4
5
Starter Recoil Cord
Starter Recoil Cord (4)
To start the engine, place the on/
off switch locate on the handlebars
to the “ON” position and pull the
Starter Recoil Cord
9

Coleman Powersports CT100U Specifications

General

Engine Type	4-Stroke, Single Cylinder
Displacement	98cc
Starting System	Recoil Start
Transmission	Automatic
Fuel Capacity	1.6 gallons
Brakes	Front and Rear Drum Brakes
