11412077AX(Pg,12)

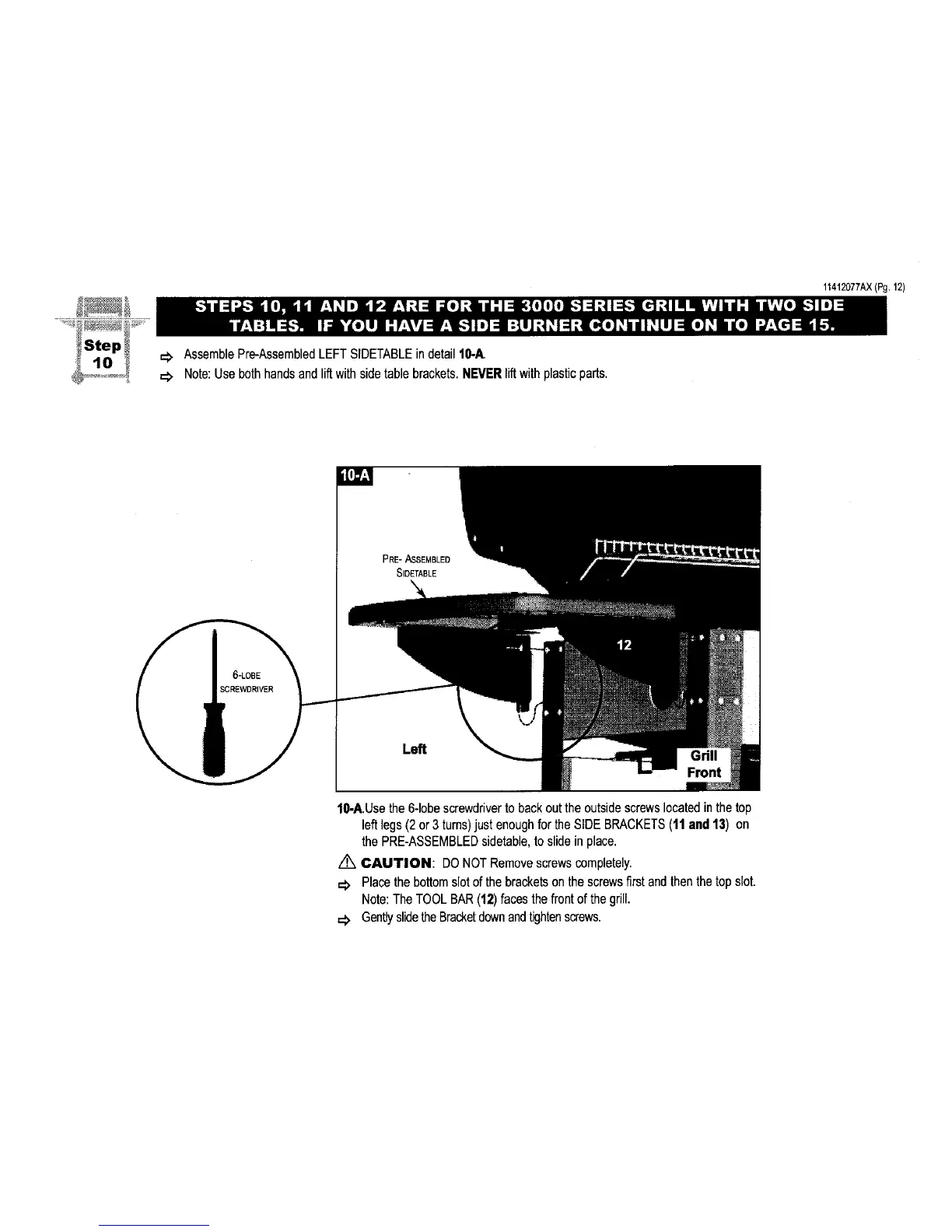

AssemblePre-AssembledLEFTSIDETABLEin detail 10-A
=:> Note:Use bothhandsand lift withside tablebrackets.NEVERliftwith plasticparts.
PRE- ASSEMBLED
SIDETABLE
Left
Front
10-A.Usethe6-lobescrewdriverto backout the outsidescrewslocated in the top
leftlegs(2 or 3 turns)just enoughfor the SIDEBRACKETS(11and 13) on
the PRE-ASSEMBLEDsidetable,to slide in place.
CAUTION: DO NOT Removescrews completely.
=_ Placethe bottomslot of the bracketson the screwsfirst andthenthe top slot.
Note:The TOOLBAR(12) facesthe front of the grill.
=:> GentlyslidetheBracketdownandtightenscrews.
To Next Page
