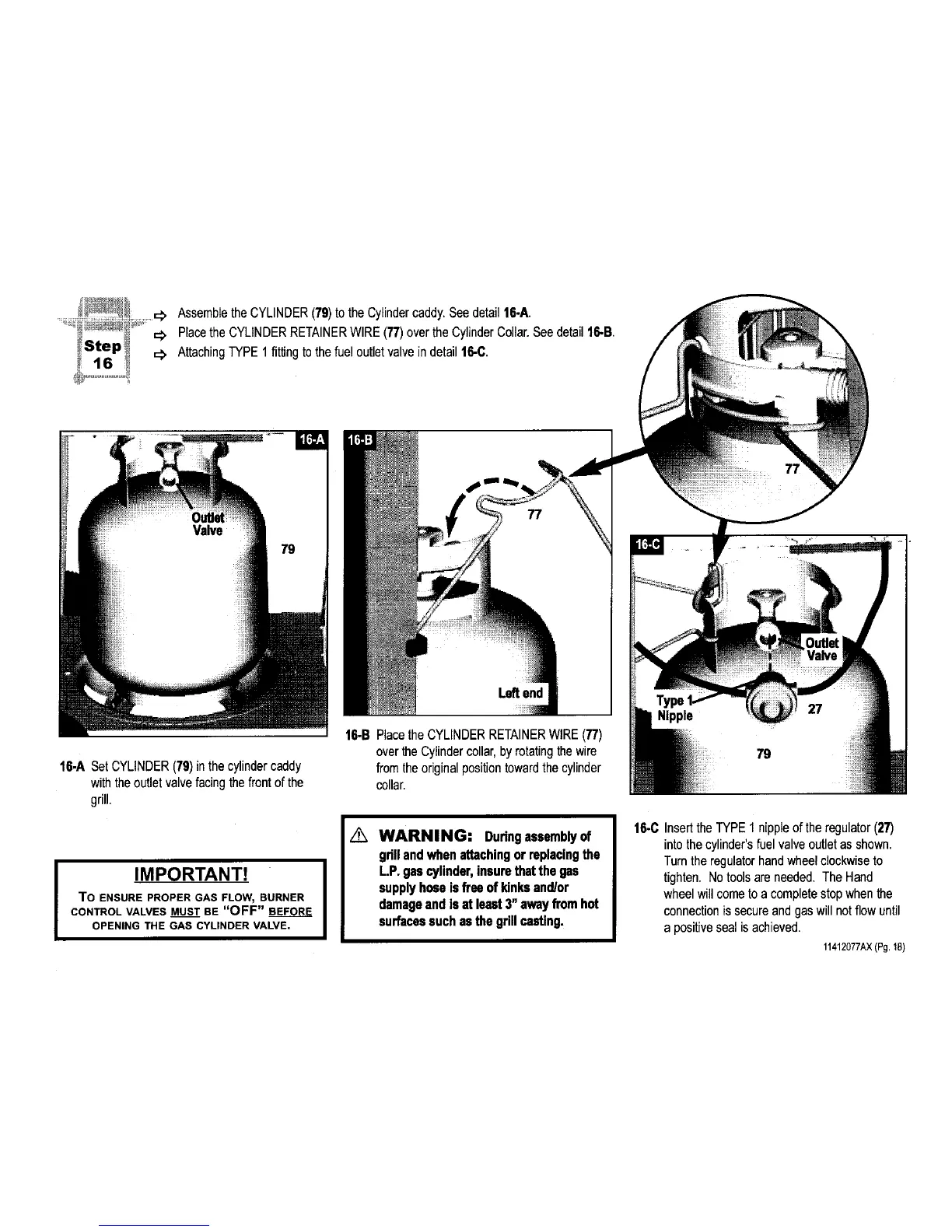

Assemblethe CYLINDER(79)to the Cylindercaddy.See detail 16.A
Placethe CYLINDERRETAINERWIRE(77)over the CylinderCollar.Seedetail 16.B
AttachingTYPE1 fittingto the fueloutletvalvein detail 16-C.
16.A Set CYLINDER(79) in the cylindercaddy
with the outletvalvefacingthefront of the
grill.
IMPORTANT!
To ENSURE PROPER GAS FLOW, BURNER
CONTROL VALVES MUST BE "OFF" BEFORE
OPENING THE GAS CYLINDER VALVE,
16-B Placethe CYLINDERRETAINERWIRE(77)
overthe Cylindercollar,by rotatingthewire
from the originalpositiontowardthe cylinder
collar.
/_ WARNING: Durtngassemblyof
grillandwhenattachingor replacingthe
L.P.gas cylinder,insurethat the gas
supplyhose is free of kinksand/or
damageand is at least3" awayfrom hot
surfacessuch asthe grillcasting.
16-C Insertthe TYPE1 nippleofthe regulator(27)
into the cylinder'sfuel valveoutletas shown.
Turntheregulatorhandwheelclockwiseto
tighten. Notoolsare needed.The Hand
wheelwillcometoa completestopwhenthe
connectionissecureand gaswillnotflowuntil
a positivesealisachieved.
11412077AX(Pg.18)
