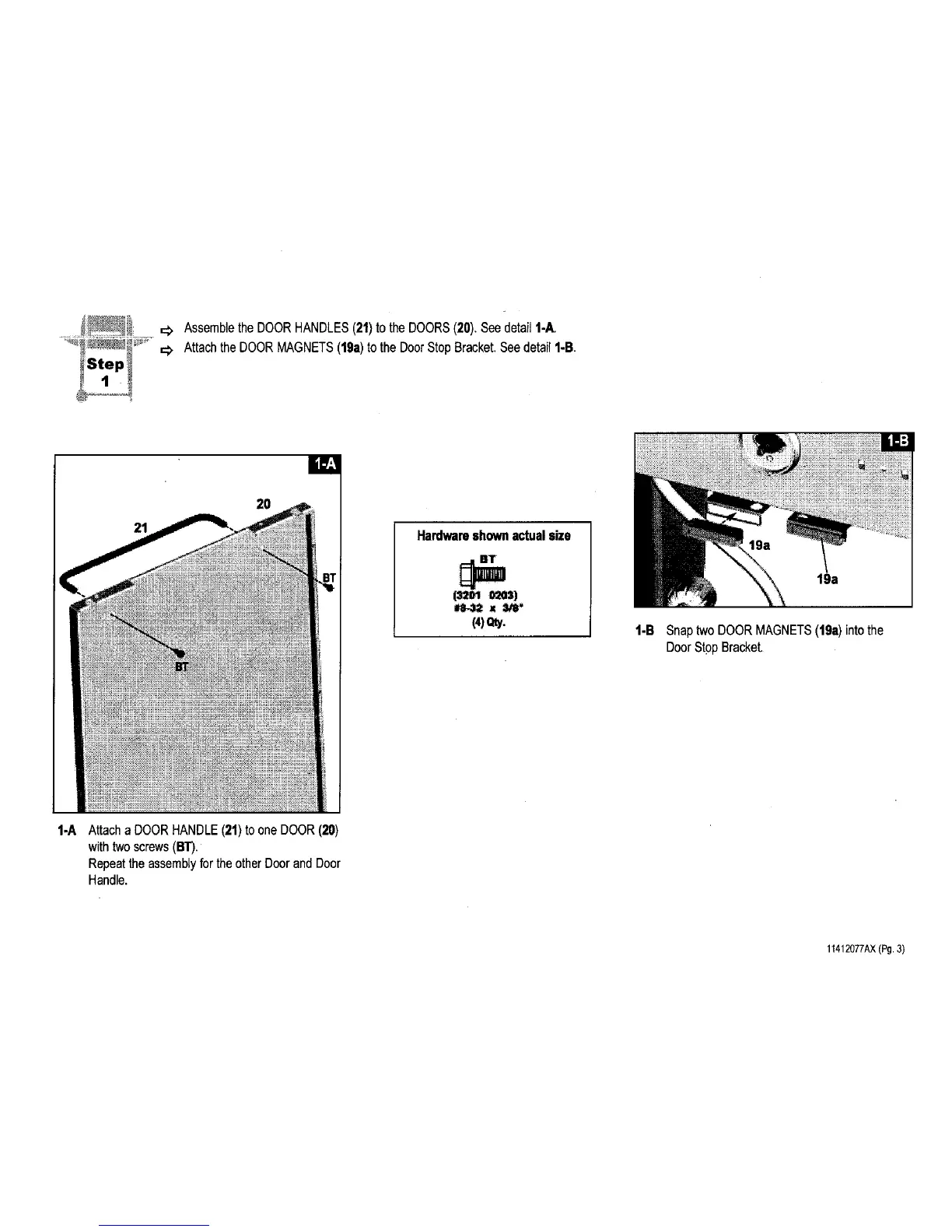

Assemblethe DOORHANDLES(21)to the DOORS(20). Seedetail 1-A.
Attachthe DOORMAGNETS(19a)tothe DoorStopBracket.See detail 1-B.
21
2O
W
BT
Hardwareshown actualsize
_x 3/8"
(4)Qty.
1-B
19a
Snaptwo DOOR MAGNETS(19a)into the
DoorStop Bracket.
I-A
Attacha DOORHANDLE(21)to oneDOOR (20)
withtwoscrews(B'r).
Repeatthe assemblyfor the otherDoor and Door
Handle.
11412077AX(Pg.3)
