Coleman 3000 SERIES User Manual

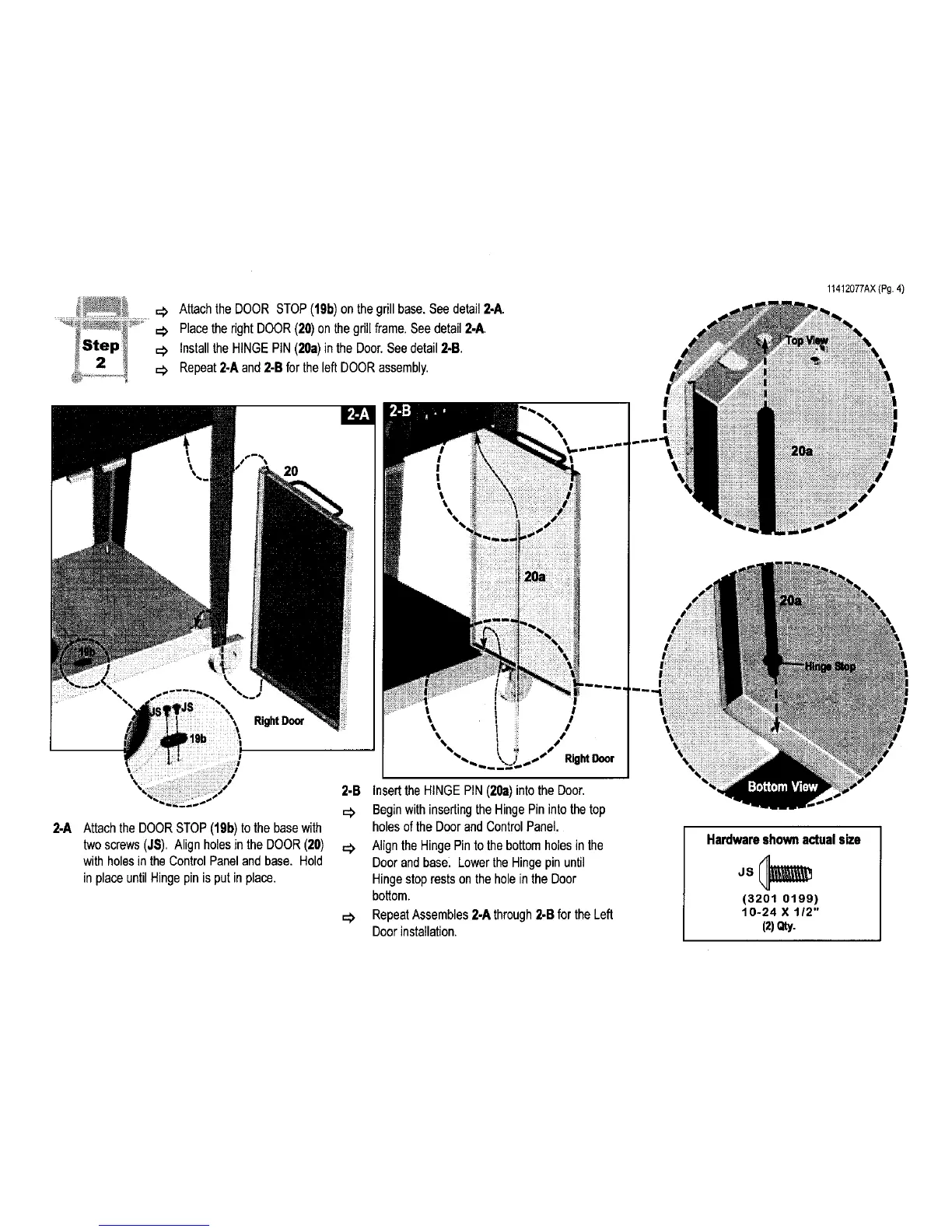

Attachthe DOOR STOP(191))on the grill base.See detail2-A.
Placethe right DOOR(20)on the gdti frame. Seedetail 2-A
=_ Installthe HINGE PIN(20a)in the Door.Seedetail 2-B
=_ Repeat2-A and 2-B for the leftDOORassembly.
11412077AX(Pg.4)
20
I
RightDoor
2-A Attach the DOORSTOP(19b) tothe basewith
two screws(J$), Align holesin the DOOR(20)
with holesin the ControlPaneland base. Hold
in placeuntil Hingepin is putin place.
2-B Insert the HINGE PIN (20a) into the Door,
c:_ Begin with insertingthe Hinge Pin into the top
holes of the Door and Control Panel.
Align the Hinge Pin to the bottom holes in the
Door and base_ Lower the Hinge pin until
Hinge stop rests on the hole inthe Door
bottom.
Repeat Assembles 2-A through2-B for the Left
Door installation.
Hardware shown actual size
(3201 0199)
10-24 X tl2"
(2)Qty.
