Page #3 background imageLoading...
Page #3 background image

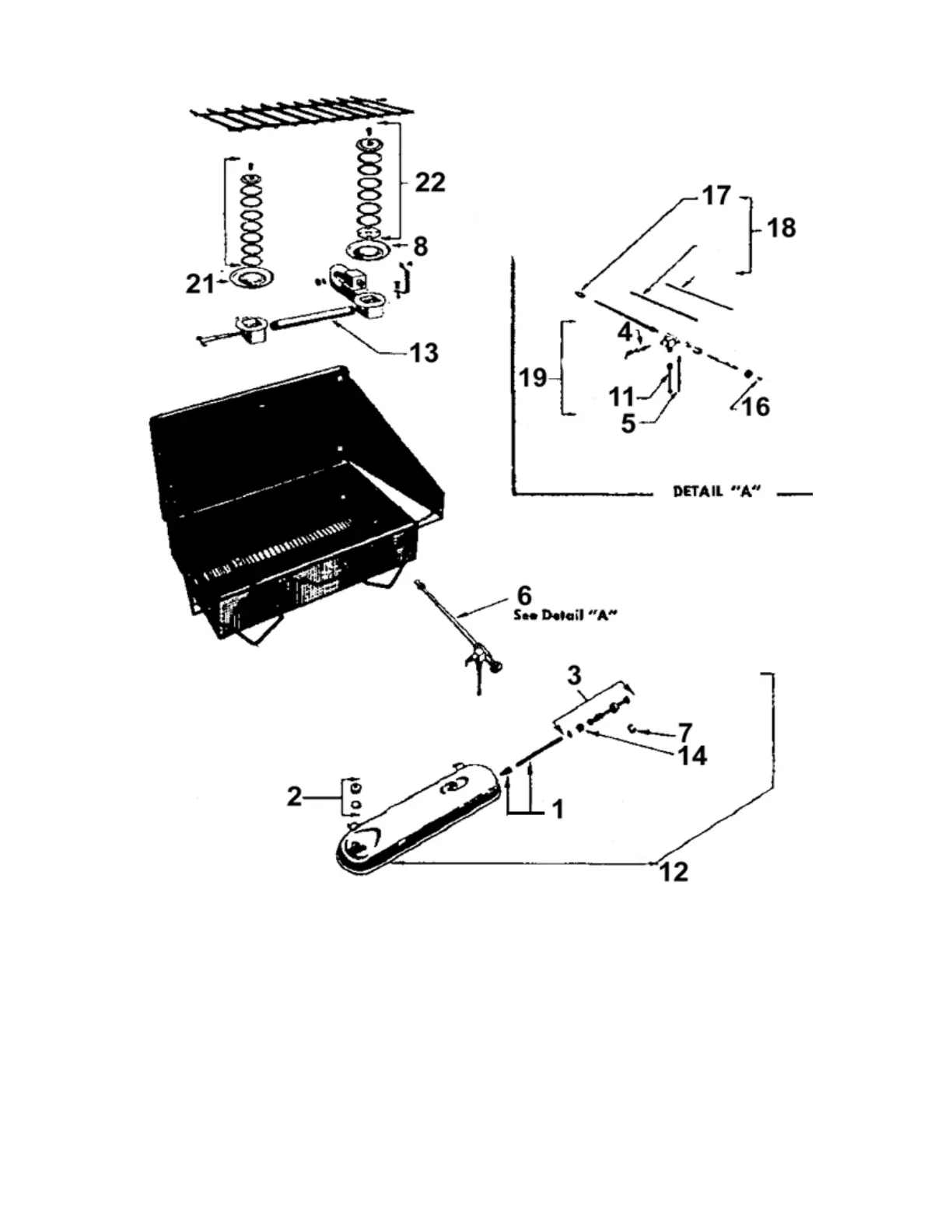

1 CHECK VALVE & AIR STEM 13 MANIFOLD ASSY
2 FILLER CAP 14 PUMP CUP LEATHER
3 PUMP PLUNGER 16 SCREW
4 LIGHTING LEVER 17 GAS TIP
5 BLOCK & NEEDLE 18 GENERATOR
6 VALVE & GENERATOR ASSY 19 VALVE ASSY
7 PUMP CLIP 20 SCREW
8 BURNER ASSY 21 BURNER BOWL
9 BURNER ASSY 22 BURNER CAP & FILLERS
10 VALVE WHEEL 23 GRATE
11 TUBE ASSY
12 TANK
99 Pump Lube

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Coleman 425 and is the answer not in the manual?

Coleman 425 Specifications

General IconGeneral
Burners2
Ignition TypeManual
MaterialSteel
Fuel TypeLiquid Fuel
BTU14, 000 BTU
