Coleman 5010 - Setting Up the Coleman Camp Oven; Unlatch Top and Bottom Catches; Separate and Pivot Bottom; Secure Hinged Top

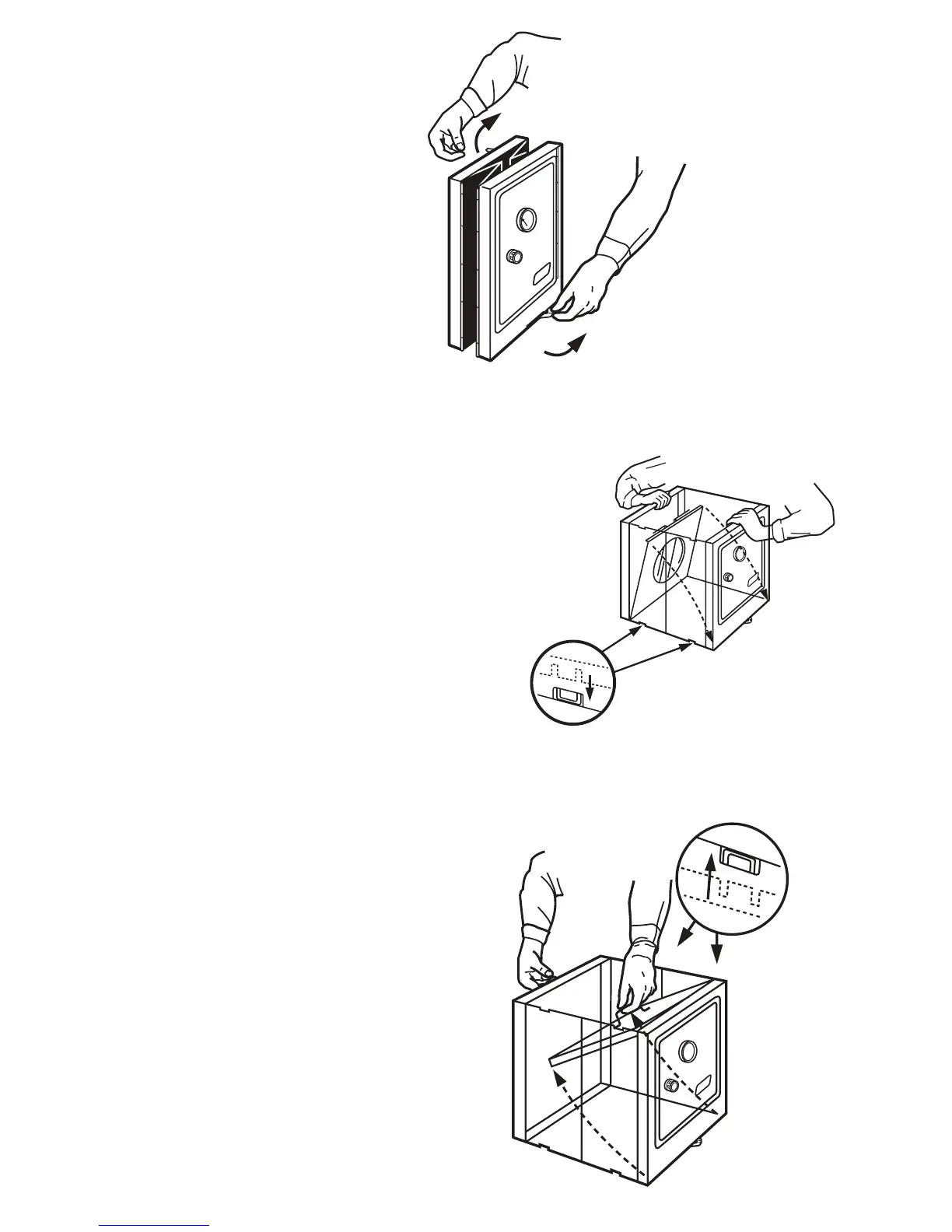

To Set-Up
1. Unlatch top and
bottom catches.
2. Pull front and back apart.
Let bottom pivot down into
position. (Be sure that all four
tabs are engaged with sides.)
Push in latch at bottom
Tab Locations
Pull Open
3. Lift hinged top into
place. (Be sure that tabs
are engaged.) Push in
latch at top of back.
