Coleman BK200 - Parts and Assembly Guide

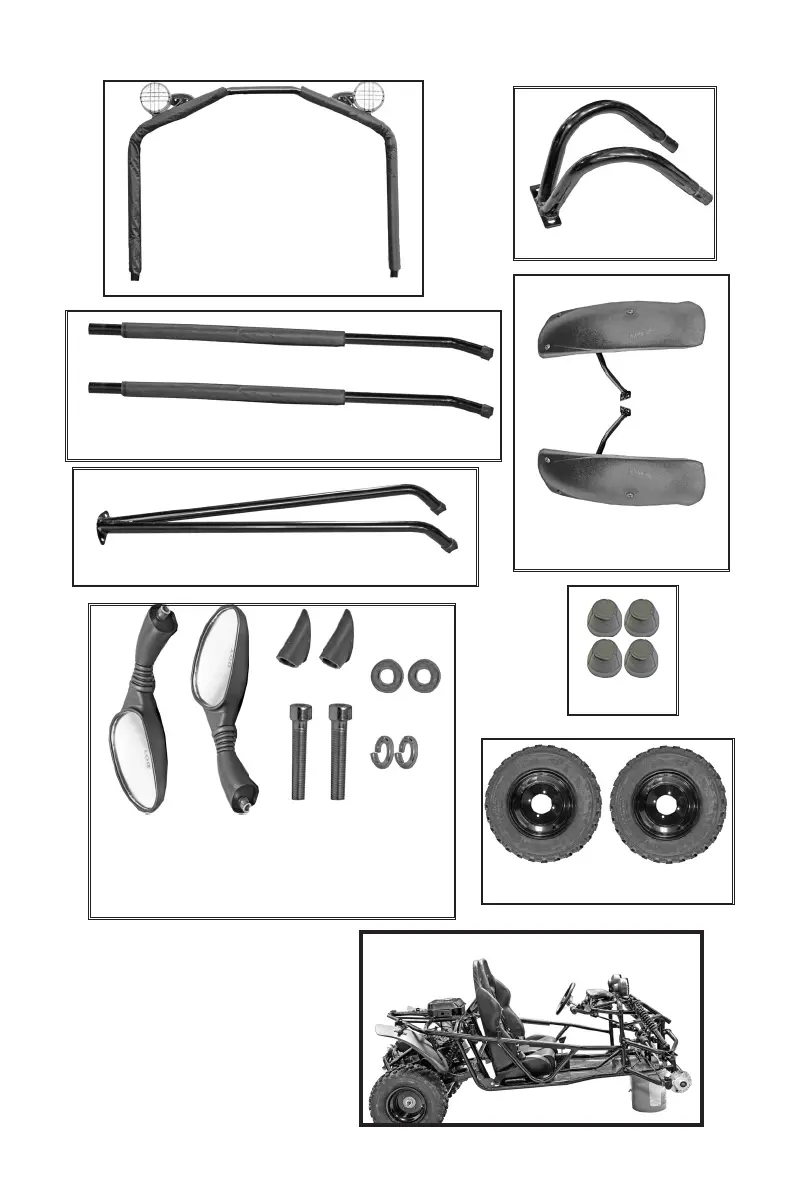

PARTS
1. Lift the front of
the Kart with a jack.
Place jack stands or a
bucket under kart to lift
front end so fenders and
wheels can be installed.
Rear Brush Guard (C)
Front Bumper
Front Fenders
Hub Caps
Mirrors packet with
hardware
Front Brush Guards (B)
Center Brush Guard (A)
Front Wheels
1
