Coleman BK200 - Front Fenders Installation

FRONT FENDERS
Hardware:
M6 X 20 BOLTS (1)
M6 Lock Nuts (2)
1
2

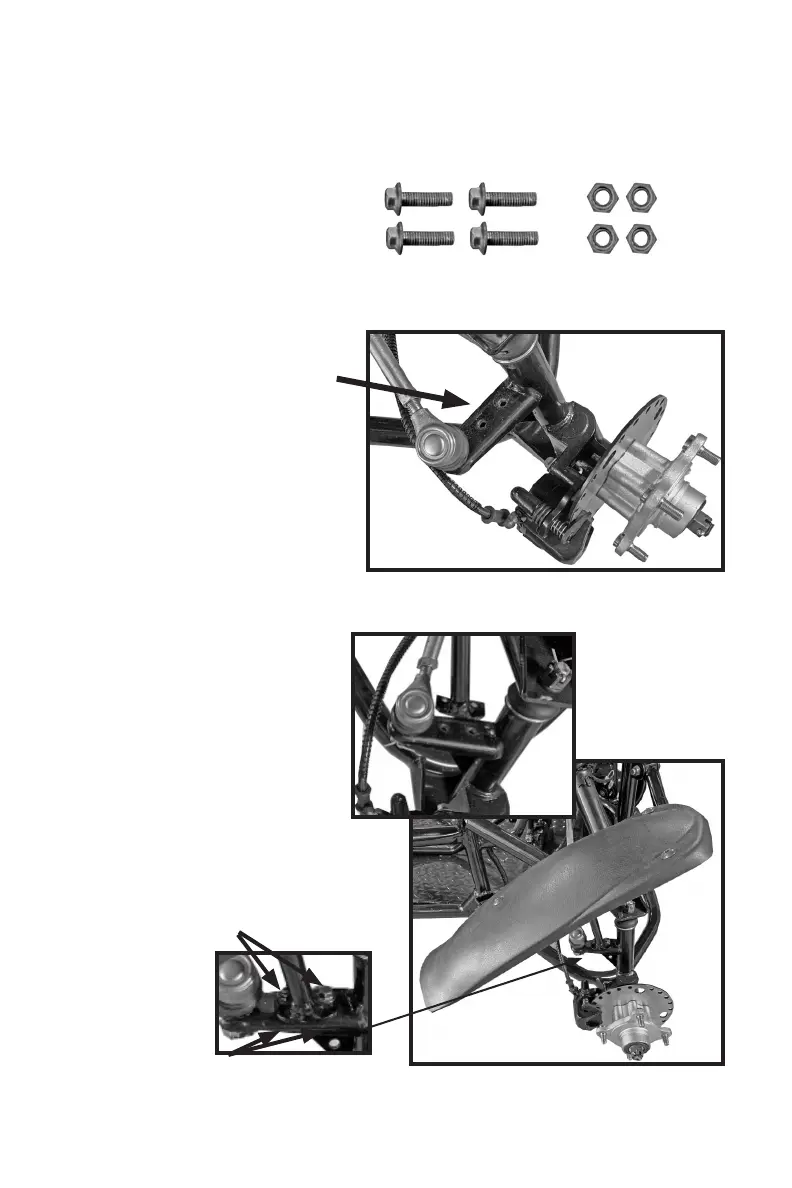

2. Attach bottom of
fender bracket to attach-
ment holes with Bolts (1)
and Lock nuts (2)
1. Locate the fender
attachment holes on the
A-Arm spindle assembly.
(1)
(2)
Front Bumper
Front Fenders
Front Wheels
