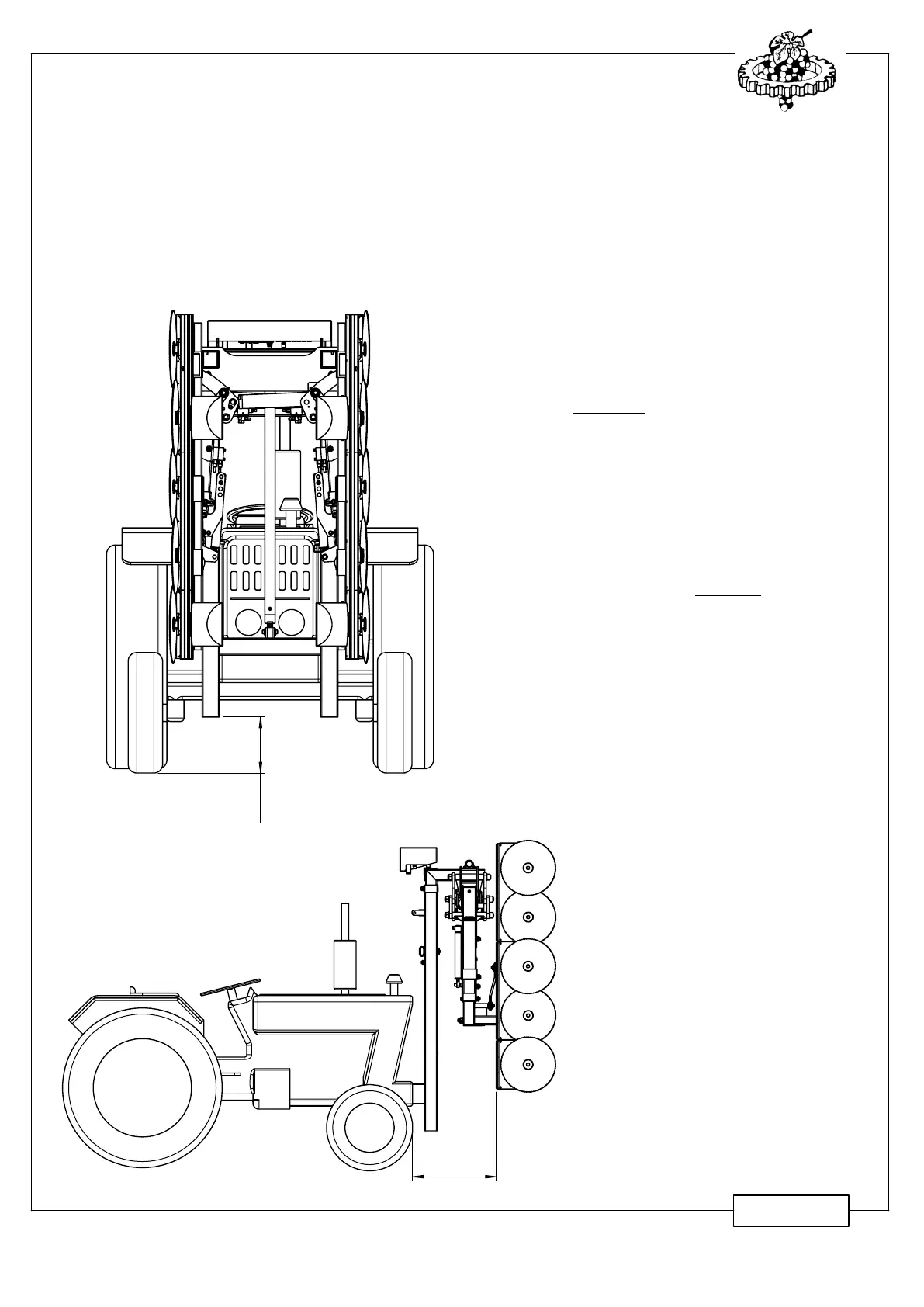

Make sure that the
distance between the blade
housing and the front wheel
of the tractor is sufficient.
If this distance
(D)
is to short,
the tires will be in contact
with the cutting elements,
especially during the steering
movements of the wheels).
If this distance cannot
be respected, due to lack of
space, provide a thrust in
order to reduce the stroke of
the steering movement.
Installation
FIXING :
For the fixing of the machine,
present it in front of the tractor at
the desired position.
Make a part of adaptation, which
make it possible to fix the machine
on the tractor.
The height of the frame
above the ground is
350 mm
.
The specifications of your unit in
order to obtain the trimming rates
specified in your order have been
calculated from this position.
This unit is mounted in front of the tractor which is operating in "inter-row".
The load on the front axle is very important, so it is recommended to mount this
machine only on a tractor which is equiped with power steering or hydrostatic steering.
PL 4622
